Associated Numbers
11130328 11130338 11130346 11130392 11130395 11130418 11130529 11130556 11130582 11130328 11130338 11130346 11130392 11130395 11130418 11130529 11130556 11130582Specifications

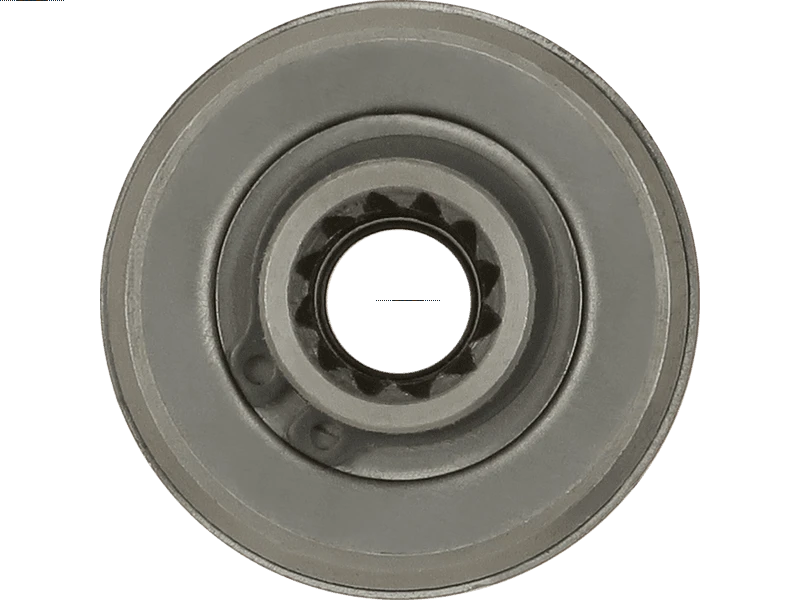

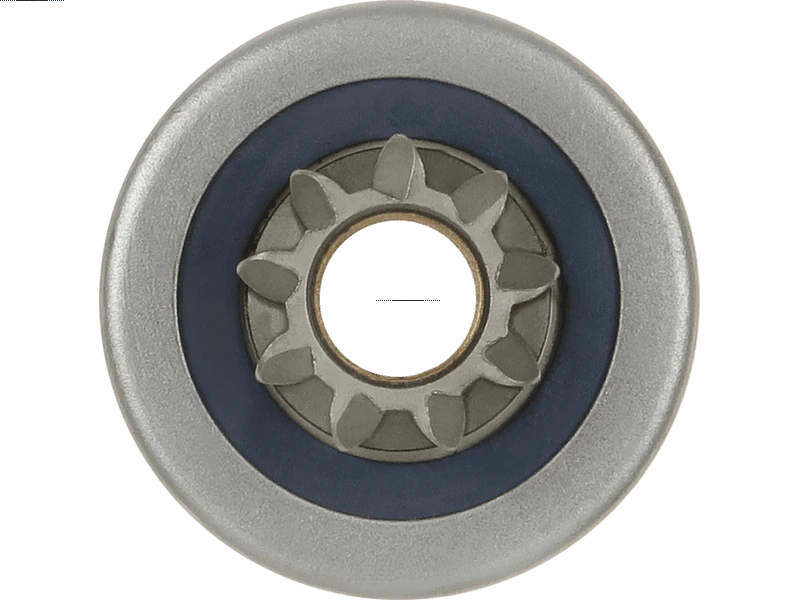

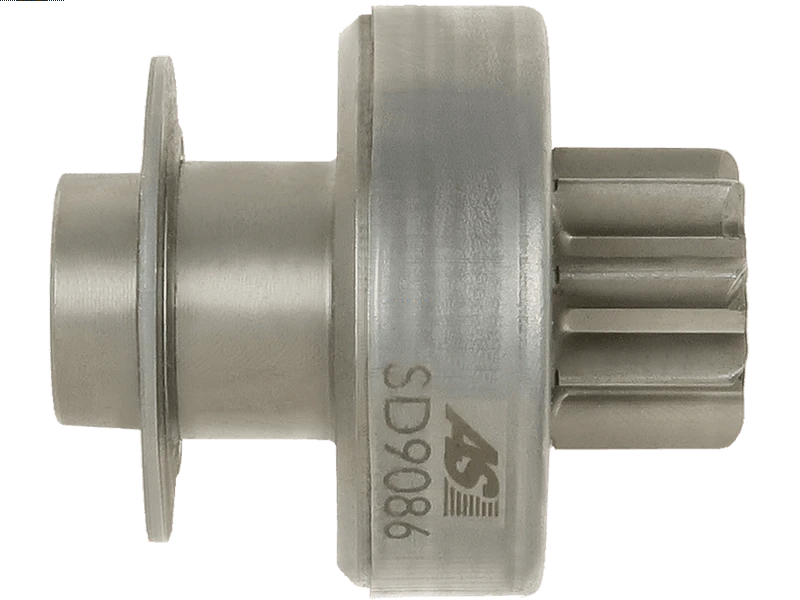

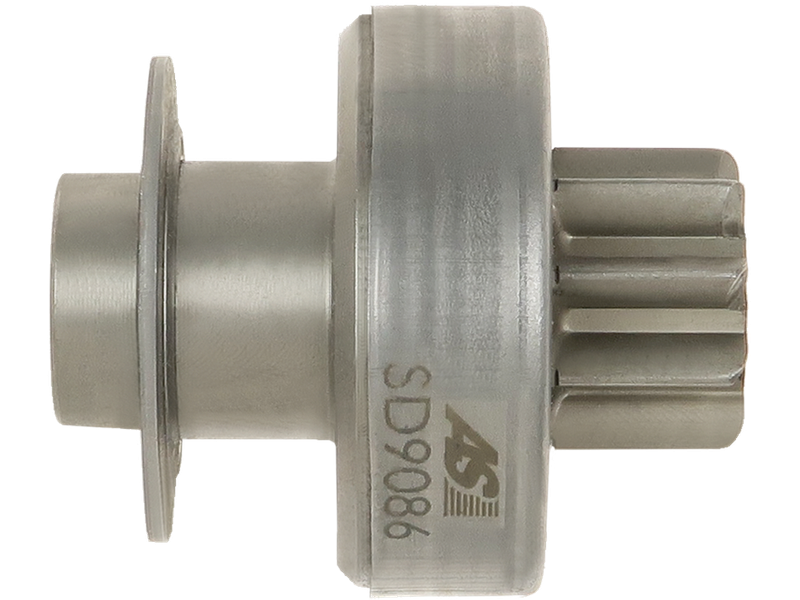

Inside Diameter (I.D.1) | 12 mm |
Length (L.1) | 56 mm |
Length (L.2) | 16.3 mm |
No./Splines | 12 qty |
No./Teeth | 9 qty |
Outside Diameter (O.D.1) | 48.4 mm |
Outside Diameter (O.D.2) | 25.25 mm |
Rotation | CW |
Type | Drive |
Unit Type | ISKRA / LETRIKA |
Reference Information
139519 DRV7923 SDV32546 133860 16.901.392 1013570 MX 194 196 274 1766 16.901.512 G1766 MSX 01-001 16.901.408Video/Publications
11130418 139519 11130529 SDV32546 11130556 11130328 11130338 16.901.392 1013570 11130346 MX 11130395 11130582 194 196 274 16.901.512 1766 G1766 11130392 MSX 01-001 16.901.408Add Your Number
