Associated Numbers

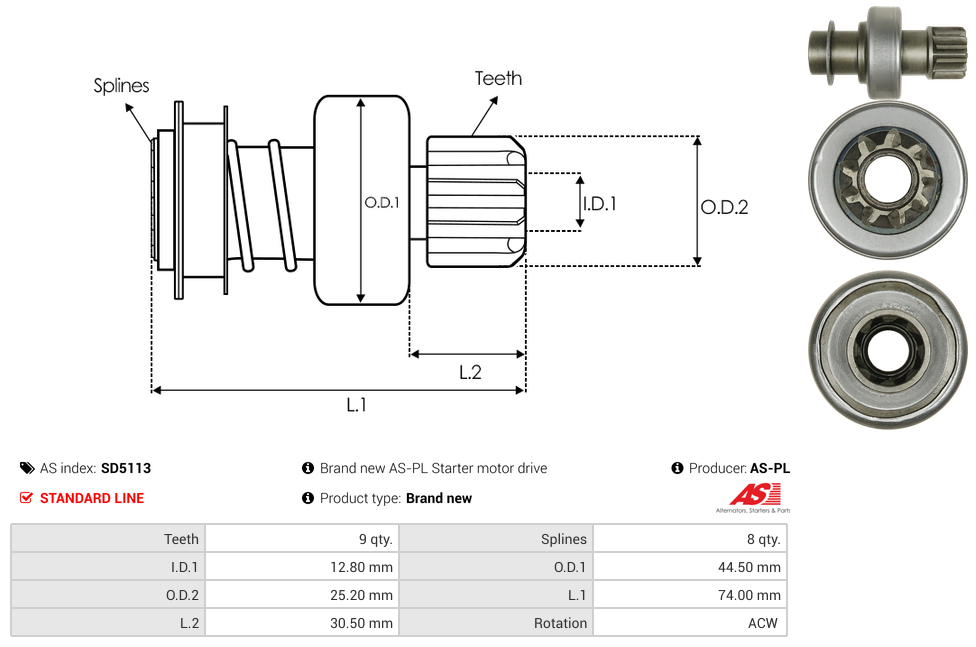

M3T19971 M003T19971 M3T19971 M003T19971Specifications
Inside Diameter (I.D.1) | 12.8 mm |
Length (L.1) | 74 mm |
Length (L.2) | 30.5 mm |
No./Splines | 8 qty |
No./Teeth | 9 qty |
Outside Diameter (O.D.1) | 44.5 mm |
Outside Diameter (O.D.2) | 25.2 mm |
Rotation | ACW |
Type | Drive |
Unit Type | MITSUBISHI |
Reference Information
1015404 08-018 M191T36471 1557 DRV5137 UD11658SD 133684 SDM3684 SDV38631 1.01.0527.0Video/Publications
08-018 1015404 M191T36471 M3T19971 1557 UD11658SD 133684 SDM3684 SDV38631 M003T19971 1.01.0527.0Add Your Number
