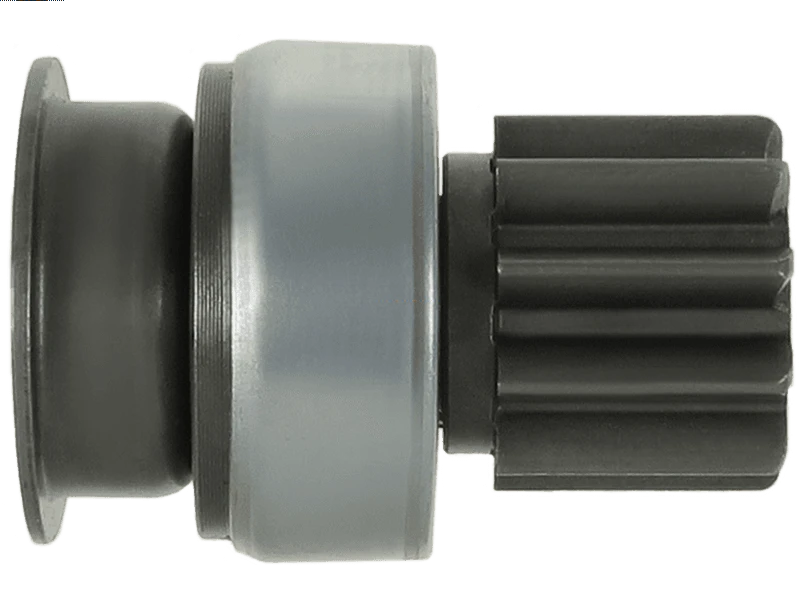

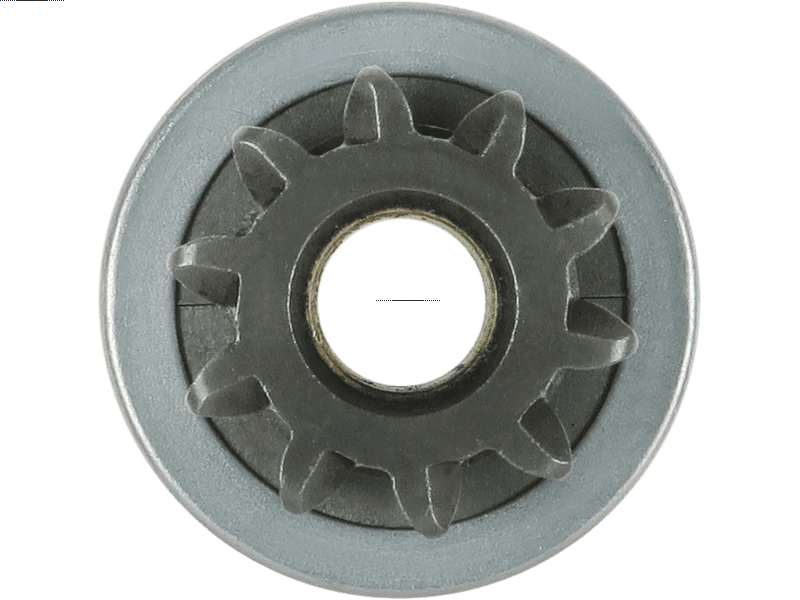

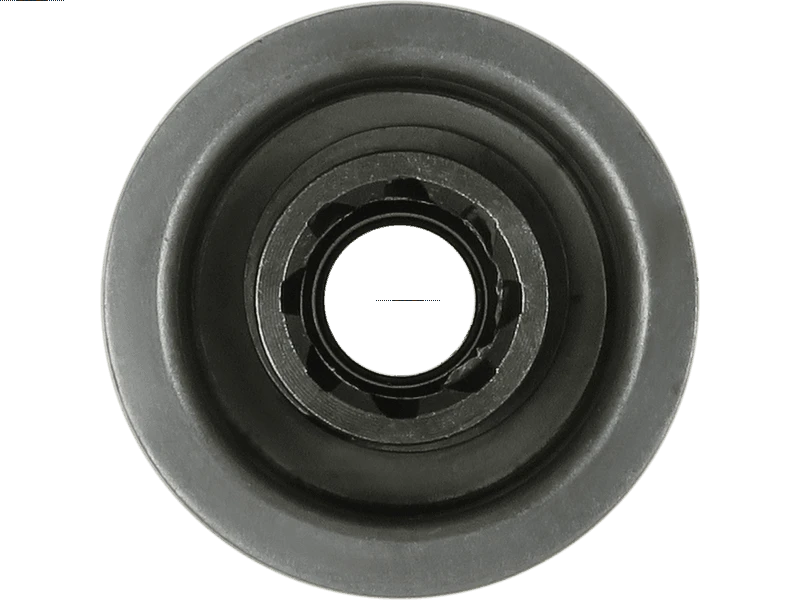

Brand new AS-PL Starter motor drive
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 28.89 including GST
NZ$ 25.12 excluding GST
UOM:
each
Product Code:
SD5076
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
M0T21271 M0T21271ZC M0T91981 M0T91981ZC M0T92081 M0T92081ZC M1T86781 M1T86781ZC M1T86782 M1T86782ZC M1T86882 M1T86883 M000T21271 M000T21271ZC M000T91981 M000T91981ZC M000T92081 M000T92081ZC M001T86781 M001T86782 M001T86782ZC M001T86882 M001T86883 M001T86781ZC M0T21271 M0T21271ZC M0T91981 M0T91981ZC M0T92081 M0T92081ZC M1T86781 M1T86781ZC M1T86782 M1T86782ZC M1T86882 M1T86883 M000T21271 M000T21271ZC M000T91981 M000T91981ZC M000T92081 M000T92081ZC M001T86781 M001T86782 M001T86782ZC M001T86882 M001T86883 M001T86781ZCSpecifications
| Inside Diameter (I.D.1) | 12 mm |
| Length (L.1) | 64 mm |
| Length (L.2) | 30 mm |
| No./Splines | 8 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Outside Diameter (O.D.1) | 45 mm |
| Outside Diameter (O.D.2) | 32.70 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Type | Drive |
| Unit Type | MITSUBISHI |
Reference Information
| 54-8341 | WAI / TRANSPO |
| 54-8341-1 | WAI / TRANSPO |
| AM-42538 | AUTO MAGNETO |
| DRV5029 | ELECTROLOG |
| UD00446SD | AS-PL |
Video/Publications
S5365S M0T21271 M001T86782 M000T91981ZC M001T86781 M001T86883 M0T91981ZC M001T86882 M000T21271 S5054 M0T92081 M000T91981 M000T92081ZC M0T92081ZC M1T86782 M1T86781 M1T86883 M1T86882 M0T21271ZC M000T21271ZC M001T86782ZC M1T86782ZC M1T86781ZC M000T92081 M001T86781ZC M0T91981View your shopping basket or Browse other items in Drives, Pinions and Clutches.
