Associated Numbers

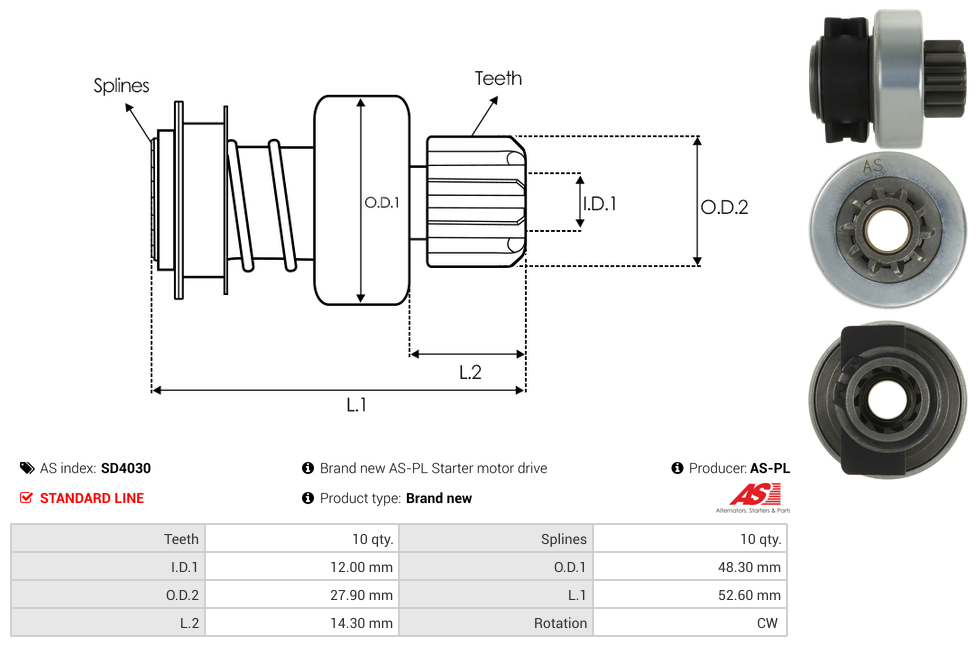

063223433010 63223433 063223433010 63223433Specifications
Inside Diameter (I.D.1) | 12 mm |
Length (L.1) | 52.6 mm |
Length (L.2) | 14.3 mm |
No./Splines | 10 qty |
No./Teeth | 10 qty |
Outside Diameter (O.D.1) | 48.3 mm |
Outside Diameter (O.D.2) | 27.9 mm |
Rotation | CW |
Type | Drive |
Unit Type | LUCAS/MARELLI |
Reference Information
21-41-18 69-9129 2090 139900 85541050 85541050010 SDE5900 SDE5900PN 85540831 1014588 DRV4192 CQ2010158 SDV32088Video/Publications
21-41-18 69-9129 2090 085541050010 139900 063223433010 63223433010 SDE5900 SDE5900PN 85540831 63223433 1014588 CQ2010158 SDV32088Add Your Number
