Associated Numbers

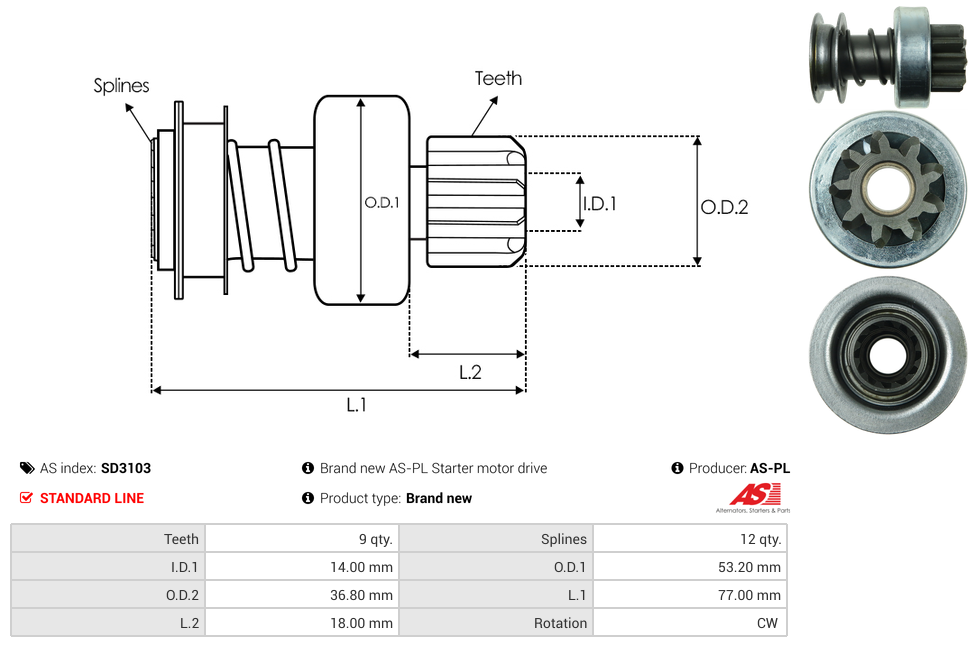

D11E161 D11E156 D11E180 D11E161 D11E156 D11E180Specifications
Inside Diameter (I.D.1) | 14 mm |
Length (L.1) | 77 mm |
Length (L.2) | 18 mm |
No./Splines | 12 qty |
No./Teeth | 9 qty |
Outside Diameter (O.D.1) | 53.2 mm |
Outside Diameter (O.D.2) | 36.8 mm |
Rotation | CW |
Type | Drive |
Unit Type | VALEO |
Reference Information
95956 26-46-07 130761 5835-42 SDV3765 DRV0026 UD12840SD ZN0216 54-9413 NE176 NE175 2972 1017137 216 95958 1.01.0216.0Video/Publications
26-46-07 D11E156 130761 5835-42 095956 SDV3765 UD12840SD ZN0216 54-9413 0216 NE176 NE175 095958 2972 1017137 D11E161 1.01.0216.0 D11E180Add Your Number
