Associated Numbers

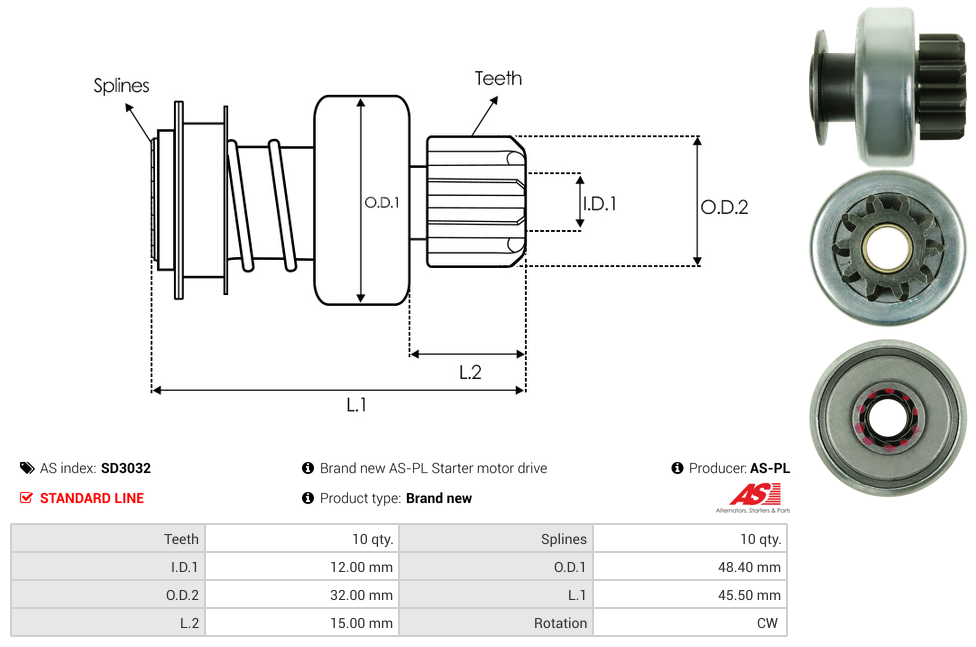

D7G11 D7G11Specifications
Inside Diameter (I.D.1) | 12 mm |
Length (L.1) | 45.5 mm |
Length (L.2) | 15 mm |
No./Splines | 10 qty |
No./Teeth | 10 qty |
Outside Diameter (O.D.1) | 48.4 mm |
Outside Diameter (O.D.2) | 32 mm |
Rotation | CW |
Type | Drive |
Unit Type | VALEO |
Reference Information
191363 225686 594657 1017557 CQ2012553 SDV0010 DRV0081 ZN1618 1618 236270 1.01.1618.0 SDV38315Video/Publications
191363 1017557 594657 225686 SDV0010 ZN1618 S3100 D7G11 236270 1.01.1618.0 SDV38315Add Your Number
