Associated Numbers
0001138039 0001138063 0001138064 0001138039 0001138063 0001138064Specifications

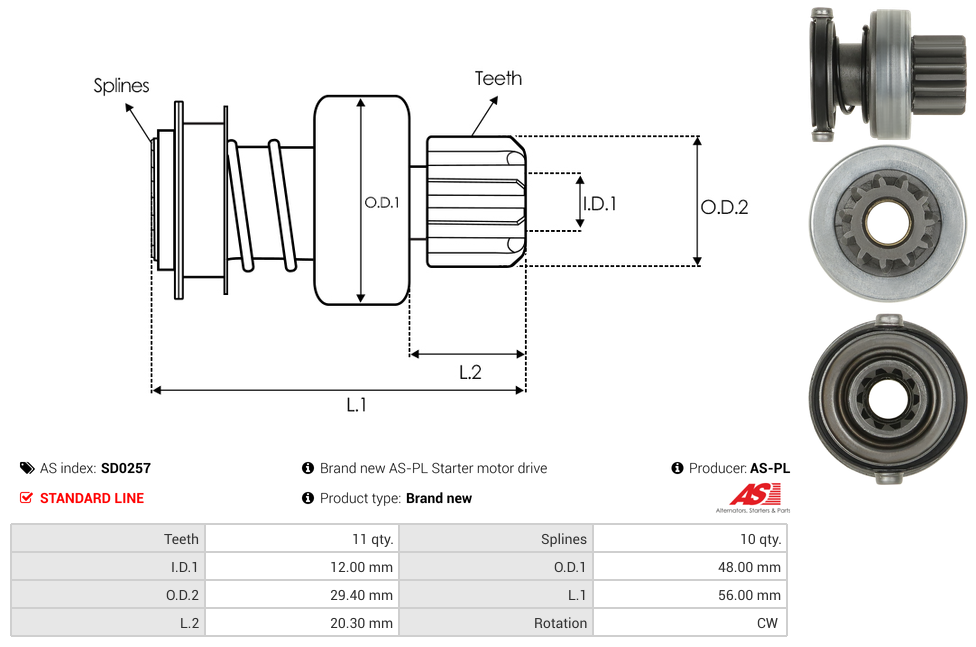

Inside Diameter (I.D.1) | 12 mm |
Length (L.1) | 56 mm |
Length (L.2) | 20.3 mm |
No./Splines | 10 qty |
No./Teeth | 11 qty |
Outside Diameter (O.D.1) | 48 mm |
Outside Diameter (O.D.2) | 29.4 mm |
Rotation | CW |
Type | Drive |
Unit Type | BOSCH |
Reference Information
28011-0X040 SDB8039 UD01833SD DRV1514 72-42-02 1006210226Video/Publications
0001138063 0001138064 28011-0X040 SDB8039 1138039 UD01833SD 0001138039 S0484 1006210226 1138064 1138063Add Your Number
