Associated Numbers

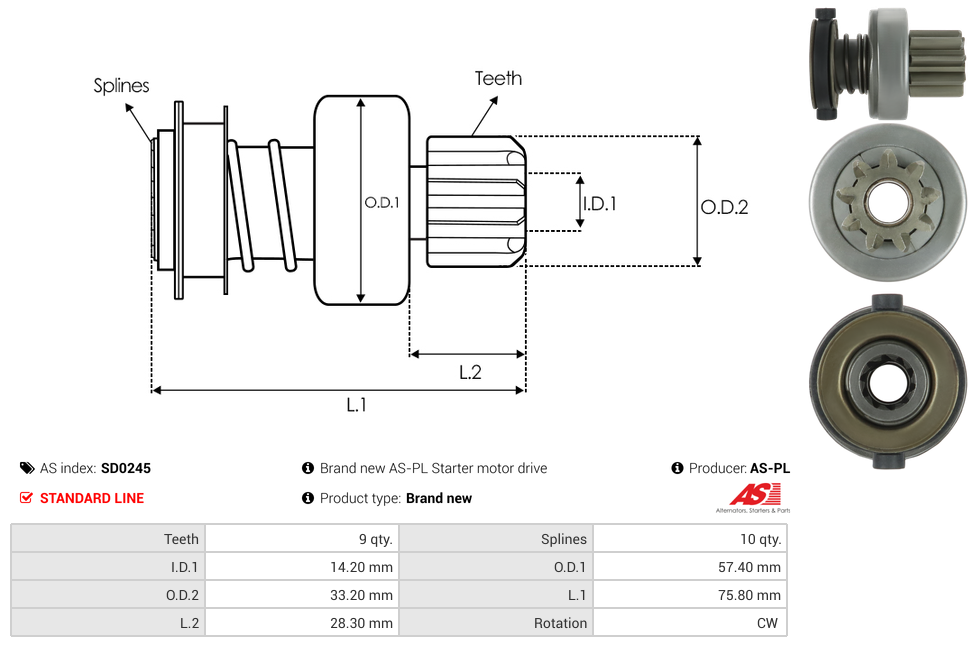

0001223503 1223503Specifications
Inside Diameter (I.D.1) | 14.2 mm |
Length (L.1) | 75.8 mm |
Length (L.2) | 28.3 mm |
No./Splines | 10 qty |
No./Teeth | 9 qty |
Outside Diameter (O.D.1) | 57.4 mm |
Outside Diameter (O.D.2) | 33.2 mm |
Rotation | CW |
Type | Drive |
Unit Type | BOSCH |
Reference Information
13-150 6033AD0150 DRV1513Video/Publications
13-150 6033AD0150 0001223503 1223503Add Your Number
