Associated Numbers

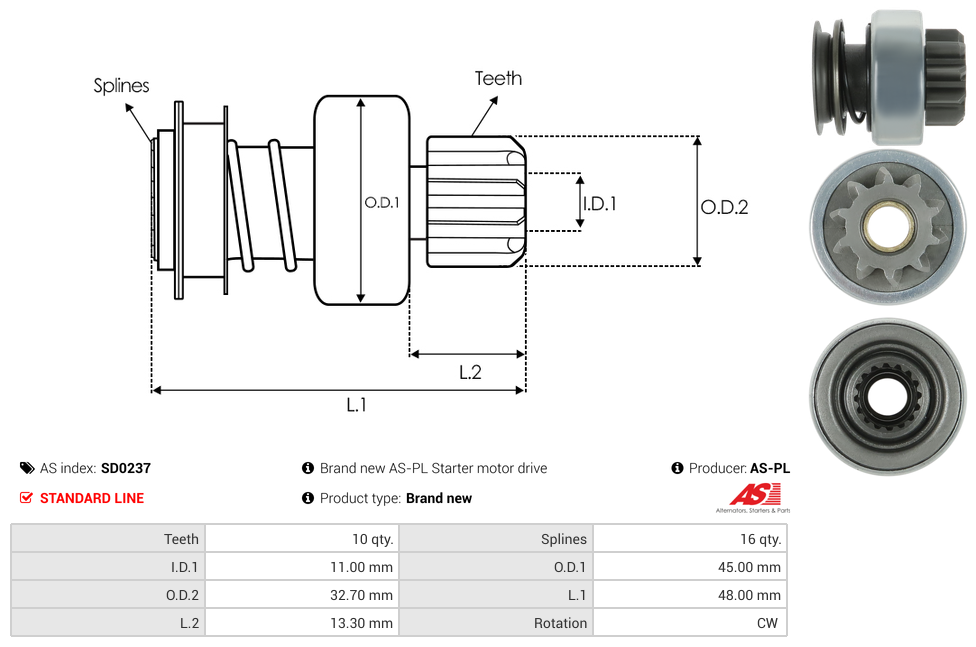

0001108405 0001108406 0001108405 0001108406Specifications
Inside Diameter (I.D.1) | 11 mm |
Length (L.1) | 48 mm |
Length (L.2) | 13.3 mm |
No./Splines | 16 qty |
No./Teeth | 10 qty |
Outside Diameter (O.D.1) | 45 mm |
Outside Diameter (O.D.2) | 32.7 mm |
Rotation | CW |
Type | Drive |
Unit Type | BOSCH |
Reference Information
DRV1166 1006209797 A0011514513 SDB9797 SDB5797 236866 11514513 SDV30646 6239 06E911335 11-797Video/Publications
1006209797 SDB9797 06E911335 11-797 A0011514513 SDB5797 236866 SDV30646 6239 S0374 1108405 0001108406 0001108405 0011514513 1108406Add Your Number
