Associated Numbers

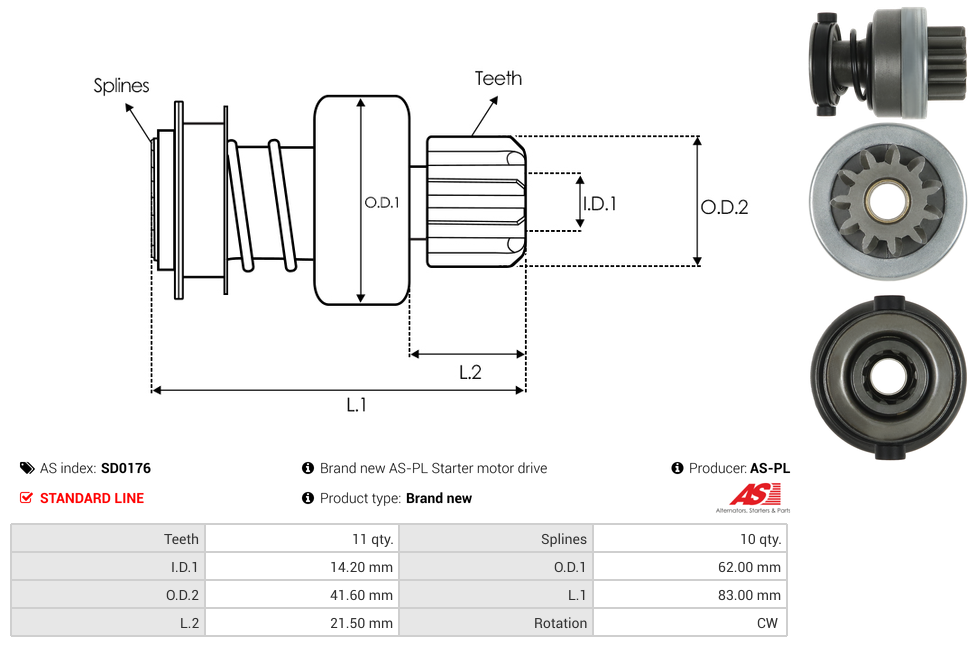

0001263004 1263004Specifications
| Inside Diameter (I.D.1) | 14.2 mm |
| Length (L.1) | 83 mm |
| Length (L.2) | 21.5 mm |
| No./Splines | 10 qty |
| No./Teeth | 11 qty |
| Outside Diameter (O.D.1) | 62 mm |
| Outside Diameter (O.D.2) | 41.6 mm |
| Rotation | CW |
| Type | Drive |
| Unit Type | BOSCH |
Reference Information
SDB1130 SDB9130 DRV1509Video/Publications
0001263004 S0258 1263004 SDB1130 SDB9130Add Your Number
