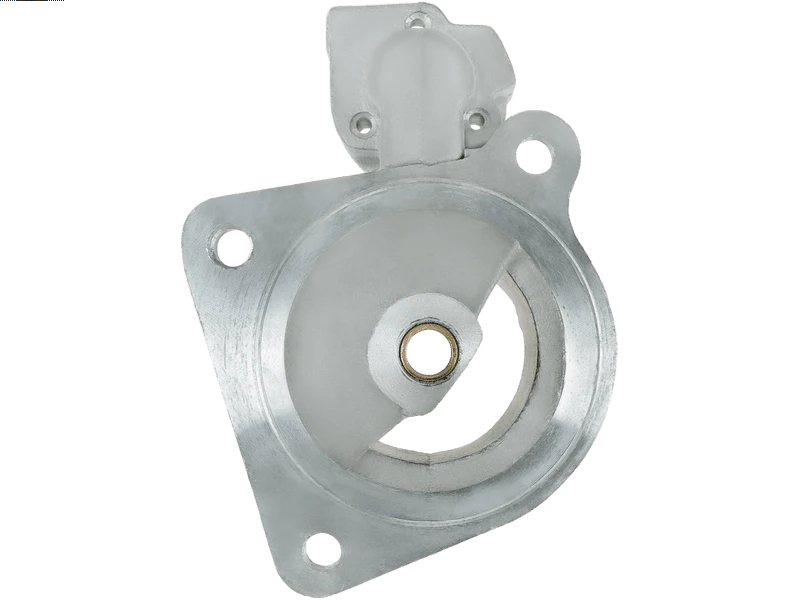

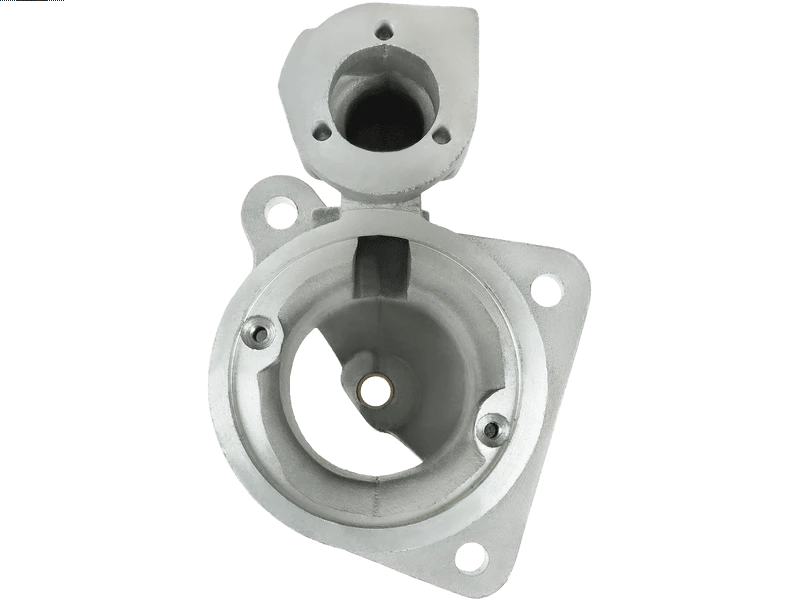

Associated Numbers
S4062 LRS00850 S4062 LRS00850Specifications
Height (H.1) | 141 mm |
Inside Diameter (I.D.1) | 12.4 mm |
Mount Hole Center - Center (O.1) | 103 mm |
Mount Hole Center - Center (O.2) | 145.5 mm |
Mount Hole Center - Center (O.3) | 103 mm |
No./Mount holes | 3 qty |
No./Mount holes with thread | 0 qty |
Spigot Diameter (A) | 109.5 mm |
Type | Drive End |
Unit Type | LUCAS/MARELLI |
Reference Information
UD44020SBRVideo/Publications
S4062 LRS00850 UD44020SBRAdd Your Number
