Associated Numbers
S3074 D7G4 S3074 D7G4Specifications

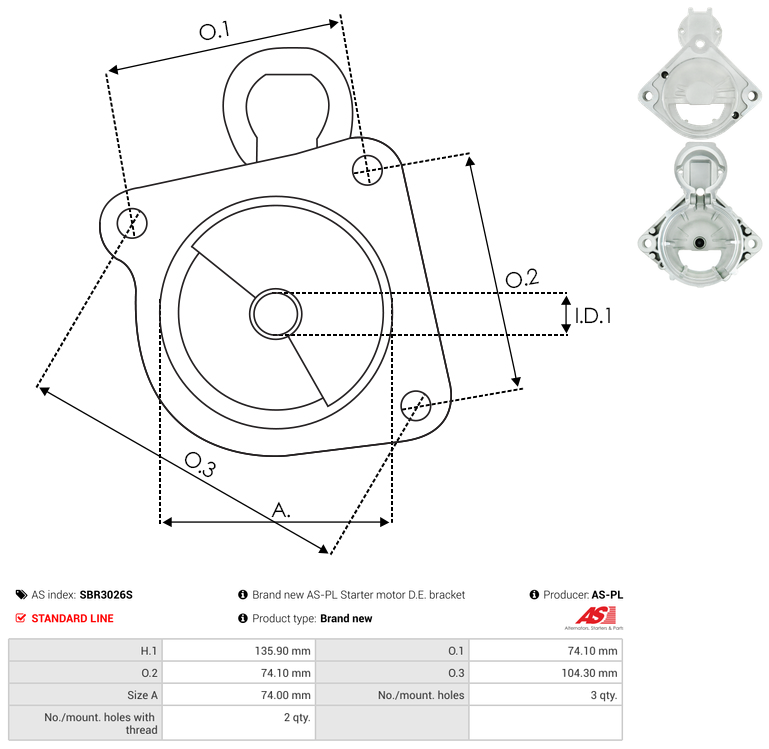

Height (H.1) | 135.9 mm |
Mount Hole Center - Center (O.1) | 74.1 mm |
Mount Hole Center - Center (O.2) | 74.1 mm |
Mount Hole Center - Center (O.3) | 104.3 mm |
No./Mount holes | 3 qty |
No./Mount holes with thread | 2 qty |
Spigot Diameter (A) | 74 mm |
Type | Drive End |
Unit Type | VALEO |
Reference Information
UD42365SBRVideo/Publications
UD42365SBR S3074 D7G4Add Your Number
