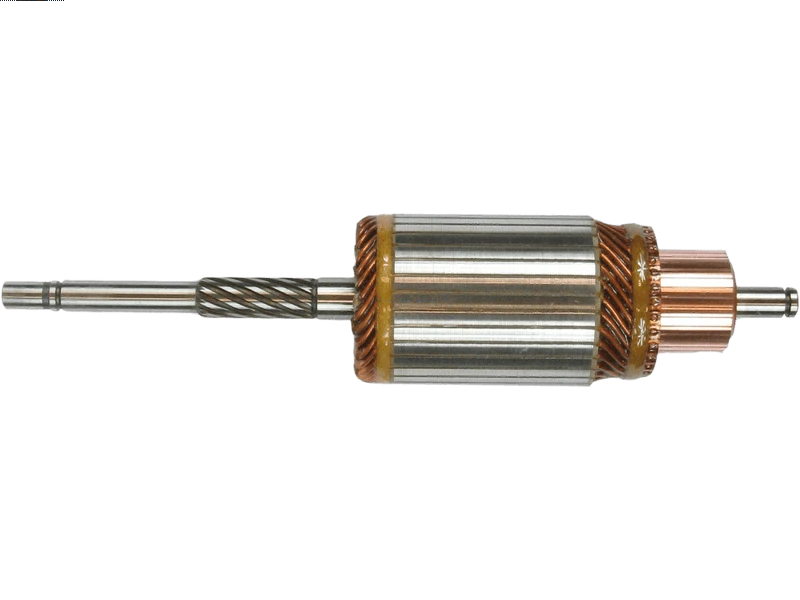

Brand new AS-PL Starter motor armature
STANDARD LINE
AS-PL
ELMOT
Price:
NZ$ 226.18 including GST
NZ$ 196.68 excluding GST
or four payments of $56.55
with
Learn More
each
SA9007
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers

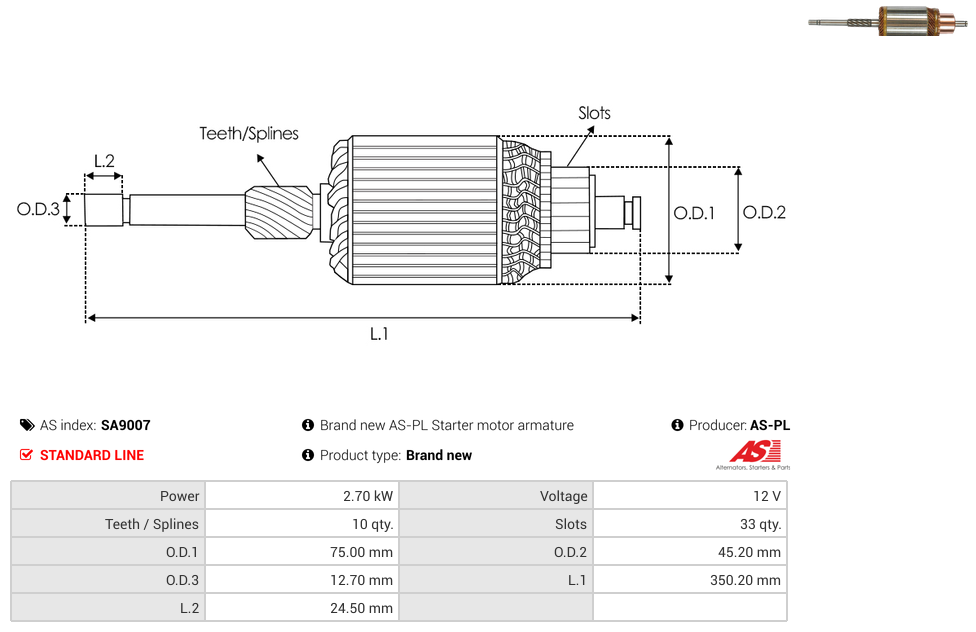

845.000.0 854.000.0 855.000.0 856.000.0 867.000.0 R11A R11B R11C R11K R11N 845.000.0 854.000.0 855.000.0 856.000.0 867.000.0 R11A R11B R11C R11K R11NSpecifications
| Com Bars | 33 qty |
| Kilowatt | 2.70 kW |
| Length (L.1) | 350.20 mm |
| Length (L.2) | 24.50 mm |
| No./Splines | 10 qty |
| OEM Product | No |
| Outside Diameter (O.D.1) | 75 mm |
| Outside Diameter (O.D.2) | 45.20 mm |
| Outside Diameter (O.D.3) | 12.70 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Unit Type | ELMOT |
| Voltage | 12 V |
Reference Information
| 19024986 | DELCO |
| 854.300.0 | ELMOT |
| ARMX009 | ELECTROLOG |
| R11 | ELMOT |
