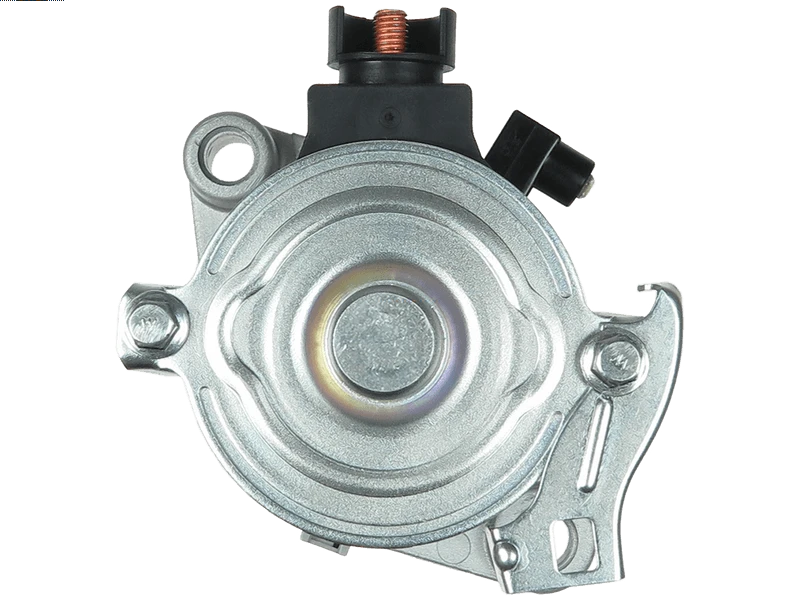

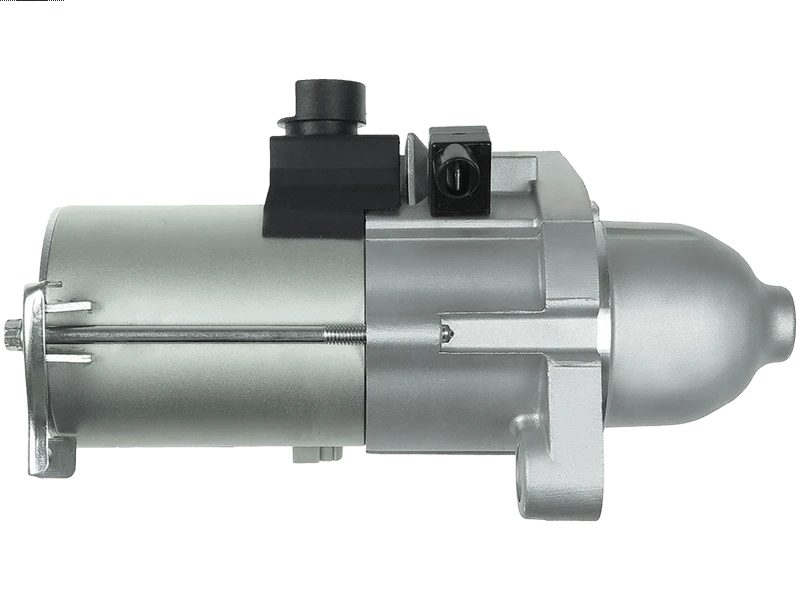

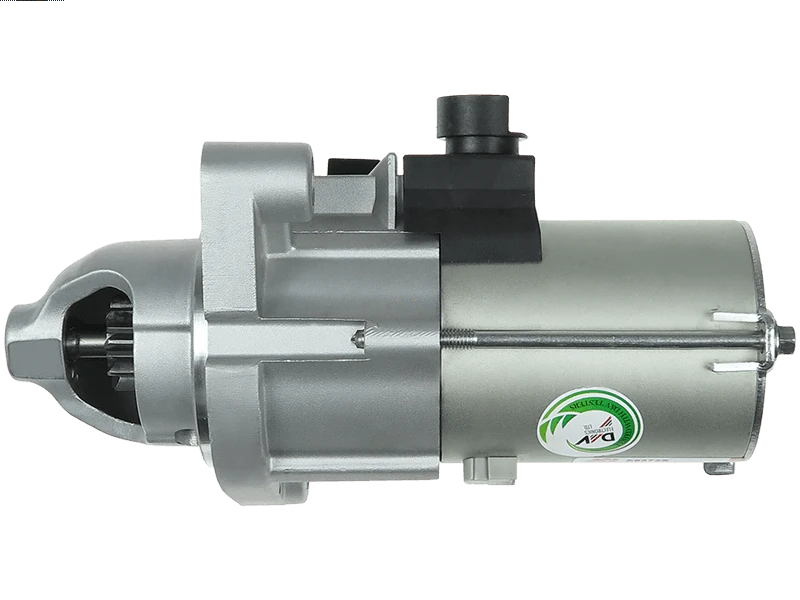

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBA
Price:
NZ$ 361.04 including GST
NZ$ 313.95 excluding GST
or four payments of $90.26
with
Learn More
each
S9372S
1
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
SM612-06Associated Numbers
SM612-06 UD16512S 3368 DRS0454 DS1564 25-5159 31200-PPA-505 31200-PPA-A01 31200-PPA-A02 31200-PPA-A03 31200-PPA-A04 PPA3M STU0080 STU9080 255705 LRS03997 88213811 120.537.092 17844N 17870N 17844R 17870R 91-26-2070N 91-26-2070 STR75452
16-304 16304
Specifications
| Kilowatt | 1.60 kW |
| Length (L.1) | 227 mm |
| Mount Hole Center - Center (O.1) | 115 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 13 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 34 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 75 mm |
| Unit Type | MITSUBA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HONDA | CR-V 2.4 i | [K24A1] | 01.2002-12.2006 |
Reference Information
| 120.537.092 | PSH |
| 17844N | WAI / TRANSPO |
| 17844R | WAI / TRANSPO |
| 17870N | WAI / TRANSPO |
| 17870R | WAI / TRANSPO |
| 25-5159 | ELSTOCK |
| 255705 | KUHNER |
| 31200-PPA-505 | HONDA |
| 31200-PPA-A01 | HONDA |
| 31200-PPA-A02 | HONDA |
| 31200-PPA-A03 | HONDA |
| 31200-PPA-A04 | HONDA |
| 3368 | CEVAM |
| 88213811 | POWERMAX |
| 91-26-2070 | WILSON |
| 91-26-2070N | WILSON |
| ANM12674X | ANDEL |
| DRS0454 | DELCO |
| DS1564 | DELCO |
| LRS03997 | LUCAS |
| LRS3997 | LUCAS |
| PPA3M | HONDA |
| SM612-06 | MITSUBA |
| STR75452 | WOODAUTO |
| STU0080 | KRAUF |
| STU9080 | KRAUF |
| UD16512S | AS-PL |
Video/Publications
