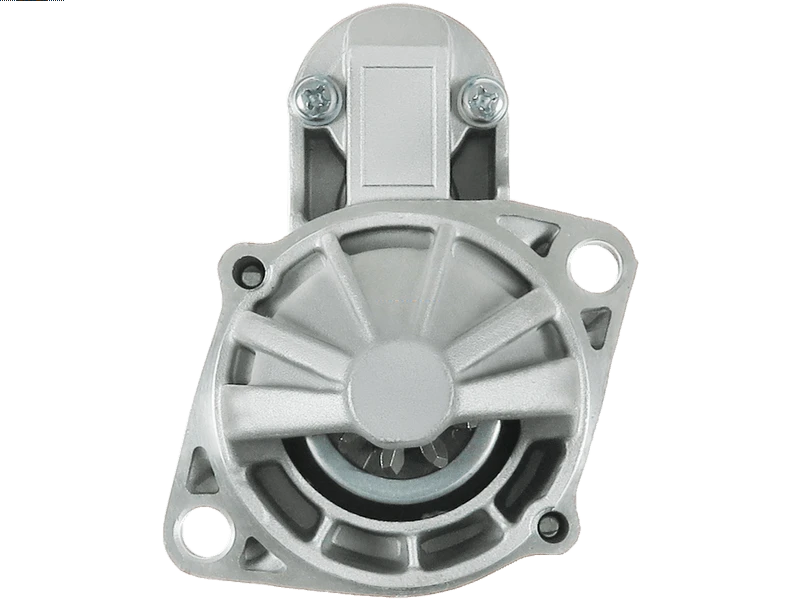

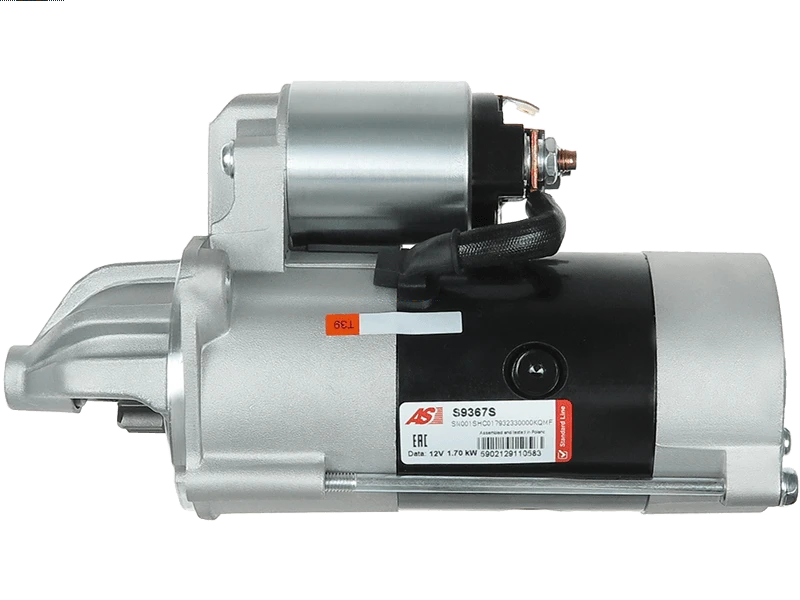

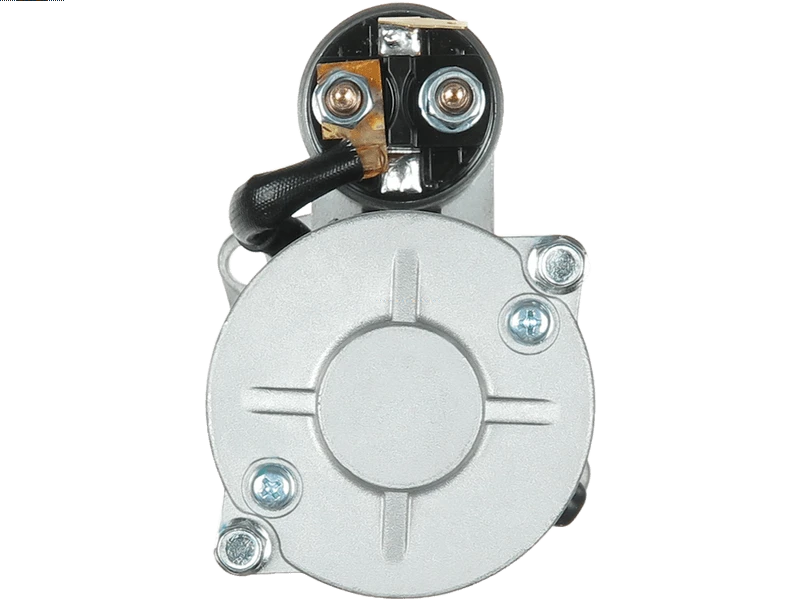

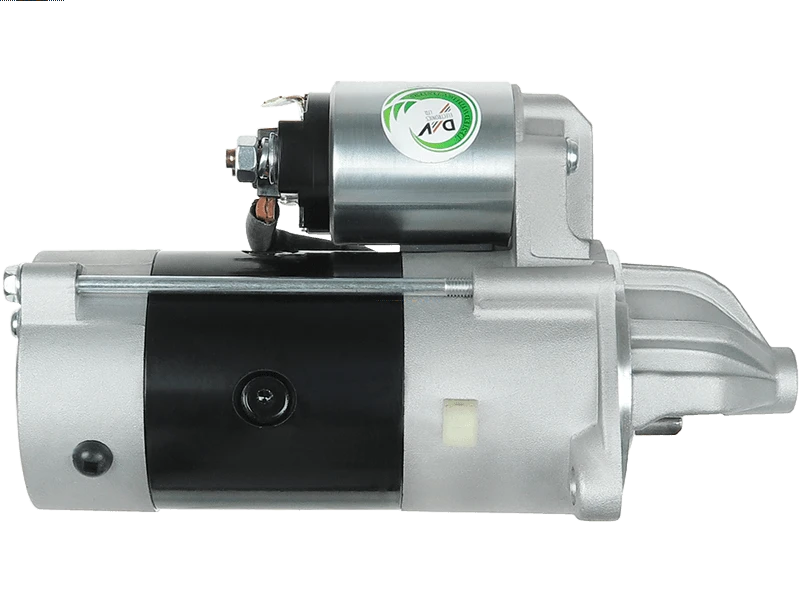

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MANDO
Price:
NZ$ 390.60 including GST
NZ$ 339.65 excluding GST
or four payments of $97.65
with
Learn More
each
S9367S
1
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
MG117559Associated Numbers
UD20351S 110245 S-80581 243-22116 25-5240 E5500-6301 E5500-63014 E5500-63015 E5500-63016 LRS04077 MG117559 130-20180 TM000A07101 19601N 91-31-9013Specifications
| Kilowatt | 1.70 kW |
| Length (L.1) | 240 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 26 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 82.50 mm |
| Unit Type | MANDO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| KIOTI | Engine | [3A139LG] | 01.2004-12.2009 |
| KIOTI | Engine | [3A165LG] | 01.2004-12.2009 |
| KIOTI | Engine | [TD1400] | 01.2004-12.2009 |
Reference Information
| 110245 | CARGO |
| 130-20180 | ROBERT'S |
| 15221-63010 | KUBOTA |
| 15221-63014 | KUBOTA |
| 15221-63015 | KUBOTA |
| 15221-63016 | KUBOTA |
| 15221-63017 | KUBOTA |
| 15221-63018 | KUBOTA |
| 15321-63015 | KUBOTA |
| 15321-63016 | KUBOTA |
| 15321-63017 | KUBOTA |
| 15435-63012 | KUBOTA |
| 15501-63010 | KUBOTA |
| 155-016-3011 | KOMATSU |
| 15501-63011 | KUBOTA |
| 15501-63012 | KUBOTA |
| 15501-63013 | KUBOTA |
| 15501-63014 | KUBOTA |
| 15707-63011 | KUBOTA |
| 17311-63010 | KUBOTA |
| 17311-63011 | KUBOTA |
| 17311-63012 | KUBOTA |
| 17331-63010 | KUBOTA |
| 17331-63011 | KUBOTA |
| 17331-63012 | KUBOTA |
| 19601N | WAI / TRANSPO |
| 243-22116 | DIXIE |
| 254649 | KUHNER |
| 25-5240 | ELSTOCK |
| 5015849 | MEAT & DORIA |
| 91-31-9013 | WILSON |
| CGB-27101 | AINDE |
| E5500-6301 | KUBOTA |
| E5500-63014 | KUBOTA |
| E5500-63015 | KUBOTA |
| E5500-63016 | KUBOTA |
| F032110245 | CARGO |
| LRS04077 | LUCAS |
| LRS4077 | LUCAS |
| MG117559 | MANDO |
| S12VA0241 | SIDAT |
| S12VA0241A2 | SIDAT |
| S-80581 | DIXIE |
| S9367S | AS-PL |
| STR8725 | ELECTROLOG |
| STRS345 | 3EFFE |
| TM000A07101 | MANDO |
| UD20351S | AS-PL |
Video/Publications
