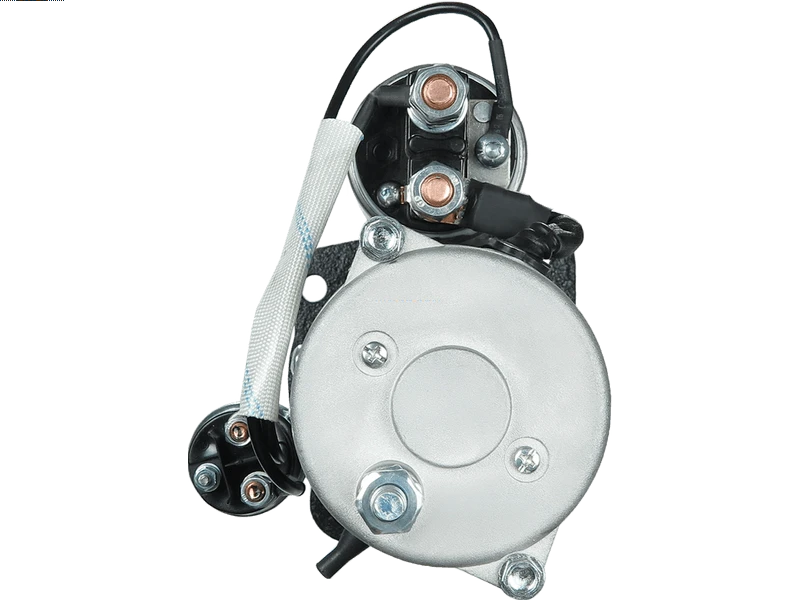

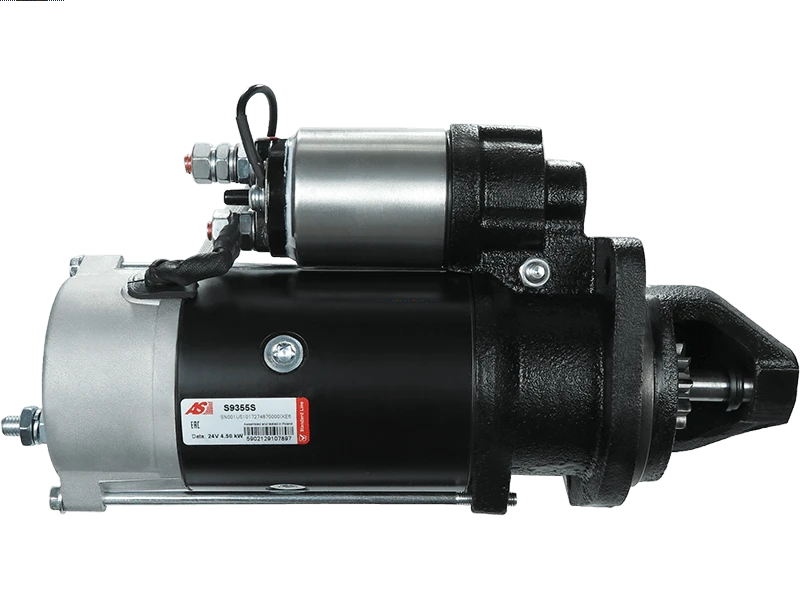

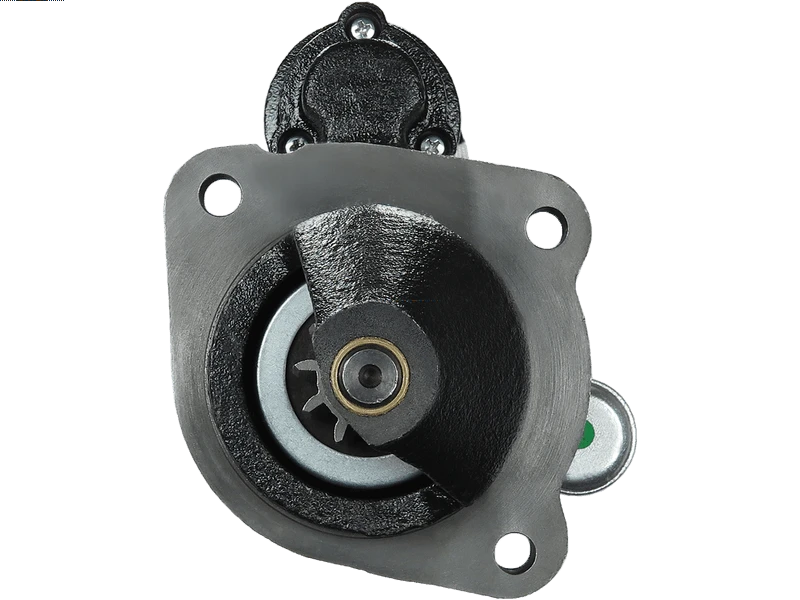

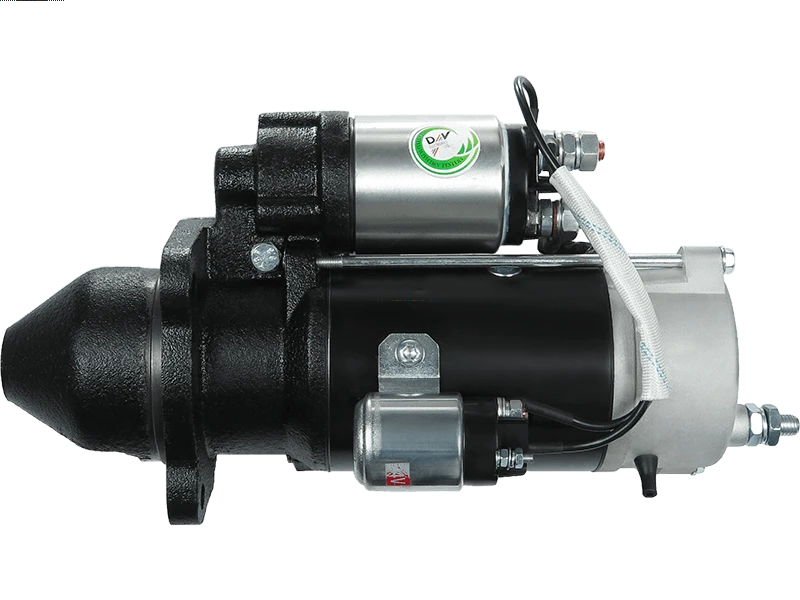

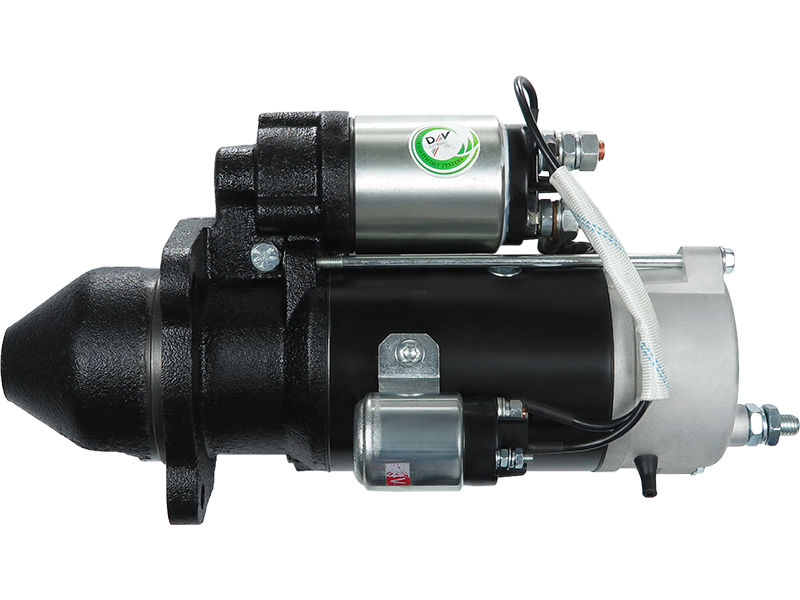

S9355S - Brand new AS-PL Starter motor

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
ISKRA / LETRIKA
Price:
NZ$ 698.27 including GST

NZ$ 607.19 excluding GST
each
S9355S
No NZ stock
Item available to backorder, submit your order. Aprox 7-14 day delay - $40 Air freight charge additional
Purchase Qty:
each

11.132.369 182-30501 273-42202 4470977 4510011 5904518 AZF4373 T434131 TS-6272 UD16543S
Kilowatt4.5 kW
Length (L.1)348 mm
Mount Hole Center - Center (O.1)90 mm
Mount Hole Center - Center (O.2)127 mm
Mount Hole Center - Center (O.3)90 mm
Mount Hole Diameter (C.1)11 mm
Mount Hole Diameter (C.2)11 mm
Mount Hole Diameter (C.3)11 mm
No./Mount holes3 qty
No./Mount holes with thread0 qty
No./Teeth10 qty
Pinion at Rest (B)28 mm
RotationCW
Spigot Diameter (A)89 mm
Unit TypeISKRA / LETRIKA
Voltage24 V
CATERPILLAR CP56B 4.4 [157HP]
CATERPILLAR CPS56B 4.4 [157HP]
CATERPILLAR CS56B 4.4 [157HP]
CATERPILLAR Engines 4.4 [61-130HP]
T434131 AZF4373 TS-6272 182-30501 11.132.369 UD16543S 273-42202 4470977 4510011 5904518
11.132.369 182-30501 273-42202 4470977 4510011 5904518 AZF4373 T434131 TS-6272 UD16543S
