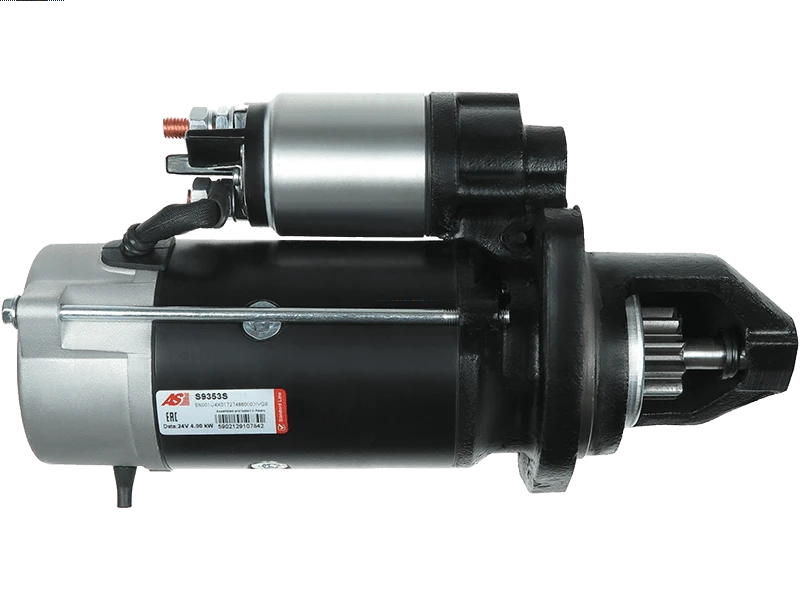

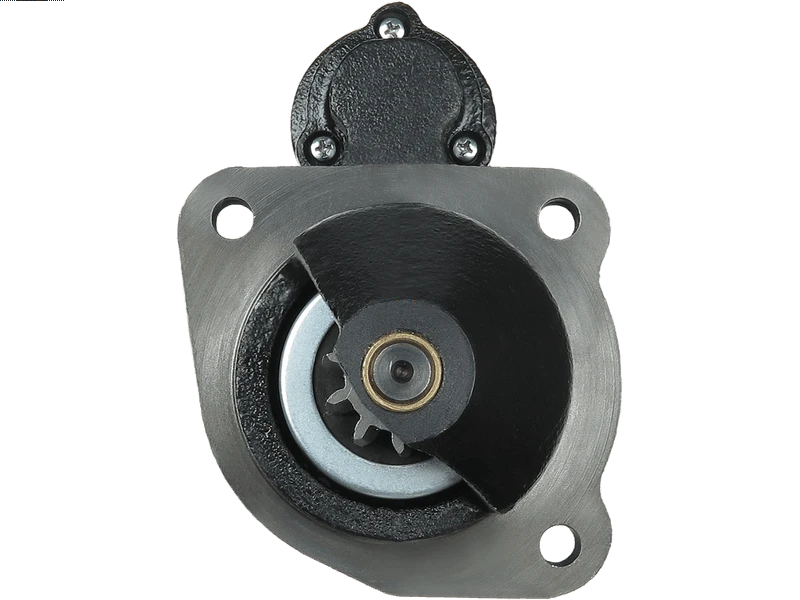

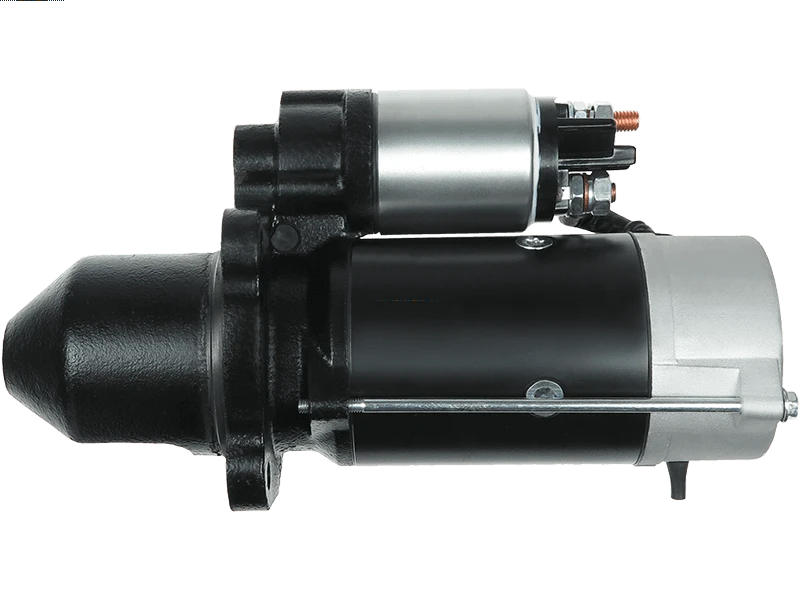

S9353S - Brand new AS-PL Starter motor

Specifications

Kilowatt	4 kW
Length (L.1)	321 mm
Mount Hole Center - Center (O.1)	90 mm
Mount Hole Center - Center (O.2)	127 mm
Mount Hole Center - Center (O.3)	90 mm
Mount Hole Diameter (C.1)	11 mm
Mount Hole Diameter (C.2)	11 mm
Mount Hole Diameter (C.3)	11 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	10 qty
Pinion at Rest (B)	47 mm
Rotation	CW
Spigot Diameter (A)	89 mm
Unit Type	ISKRA / LETRIKA
Voltage	24 V

Vehicle Applications

Make	Model	Type	Year
CASE	1080	[590]	01.1985-
CASE	1088	[590]	01.1990-12.1992
CASE	488		01.1987-12.1992
CASE	688		01.1987-12.1992
CASE	888		01.1988-12.1992
DOOSAN	10/105 4.5	[4IRD5AE]
DOOSAN	10/125 6.8	[6IRF8AE]
DOOSAN	14/115 6.8	[6IRF8AE]
DOOSAN	14/85 4.5	[4IRD5AE]
DOOSAN	7/120 4.5	[4IRD5AE]
DOOSAN	7/170 6.8	[6IRF8AE]
DOOSAN	9/110 4.5	[4IRD5AE]
JOHN DEERE	Engines 2.9	[3029DF]
JOHN DEERE	Engines 2.9	[3029DF120]
JOHN DEERE	Engines 2.9	[3029DF124]
JOHN DEERE	Engines 2.9	[3029DF150]
JOHN DEERE	Engines 2.9	[3029DF151]
JOHN DEERE	Engines 2.9	[3029DF160]
JOHN DEERE	Engines 2.9	[3029DF180]
JOHN DEERE	Engines 2.9	[3029HF270]
JOHN DEERE	Engines 2.9	[3029TF]
JOHN DEERE	Engines 2.9	[3029TF120]
JOHN DEERE	Engines 2.9	[3029TF150]
JOHN DEERE	Engines 2.9	[3029TF152]
JOHN DEERE	Engines 2.9	[3029TF160]
JOHN DEERE	Engines 2.9	[3029TF180]
JOHN DEERE	Engines 2.9	[3029TF270]
JOHN DEERE	Engines 2.9
JOHN DEERE	Engines 3.9
JOHN DEERE	Engines 4.5	[4045DF150]
JOHN DEERE	Engines 4.5	[4045HF120]
JOHN DEERE	Engines 4.5	[4045HF150]
JOHN DEERE	Engines 4.5	[4045TF120]
JOHN DEERE	Engines 4.5	[4045TF150]
JOHN DEERE	Engines 4.5	[4045TF250]
JOHN DEERE	Engines 4.5
JOHN DEERE	Engines 5.9	[6059DF092]
JOHN DEERE	Engines 6.8	[6068]
JOHN DEERE	Engines 6.8	[6068HF150]
JOHN DEERE	Engines 6.8	[6068HF275]
JOHN DEERE	Engines 6.8	[6068HFG82]
JOHN DEERE	Engines 6.8	[6068HFS]
JOHN DEERE	Engines 6.8	[6068HFS85]
JOHN DEERE	Engines 6.8	[6068HFU82]
JOHN DEERE	Engines 6.8	[6068TF092]
JOHN DEERE	Engines 6.8	[6068TF120]
JOHN DEERE	Engines 6.8	[6068TF150]
JOHN DEERE	Engines 6.8	[6068TF220]
JOHN DEERE	Engines 6.8

Reference Information

273-42203 RE528929 STRF505 MS 631.505.103 RE67087 MAV236420 CST21642GS SE502633 114824 RE503119 6021642.1 11.132.083 TS62-61 169 20419246OE STR20224 STR20223 RE528532 UD16539S STI4824 8208 AZF4292 STR78013

Video/Publications

11.132.083 114824 273-42203 631.505.103 8208 AZF4292 MS 169 RE503119 RE528532 RE528929 RE67087 SE502633 STI4824 STRF505 TS62-61 UD16539S
