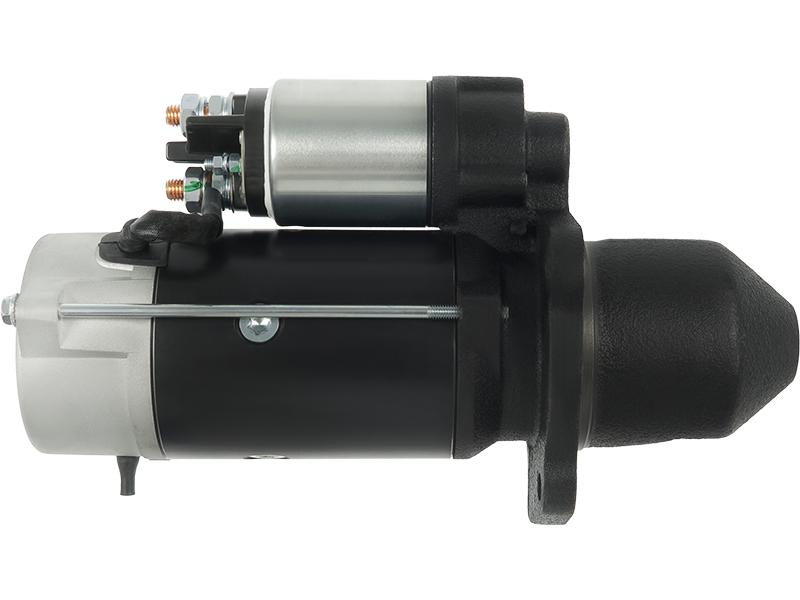

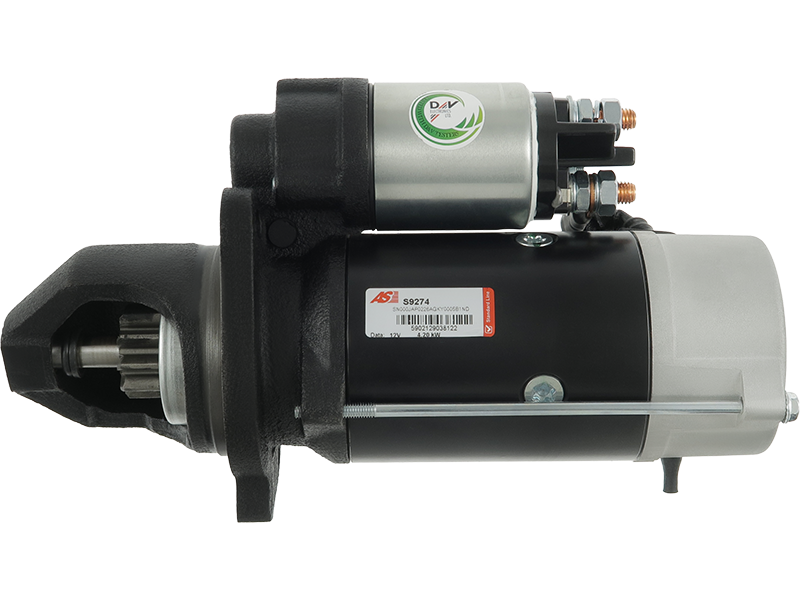

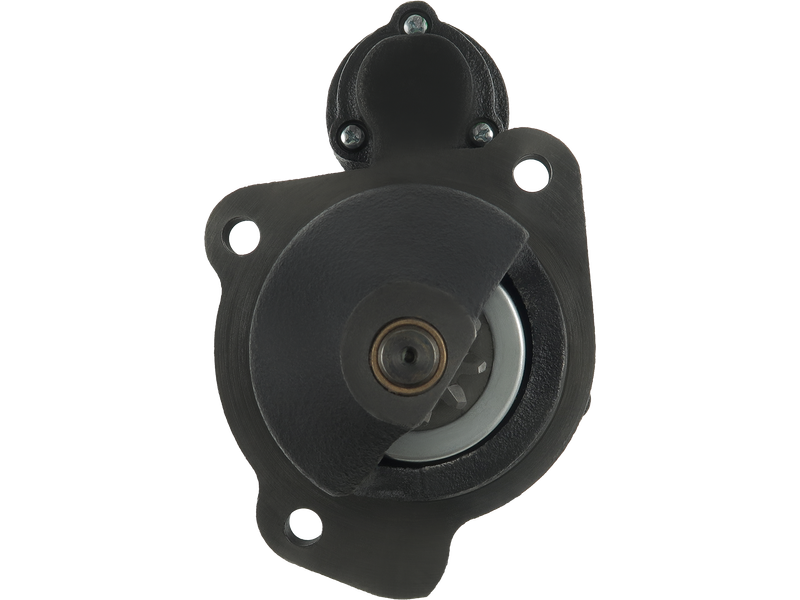

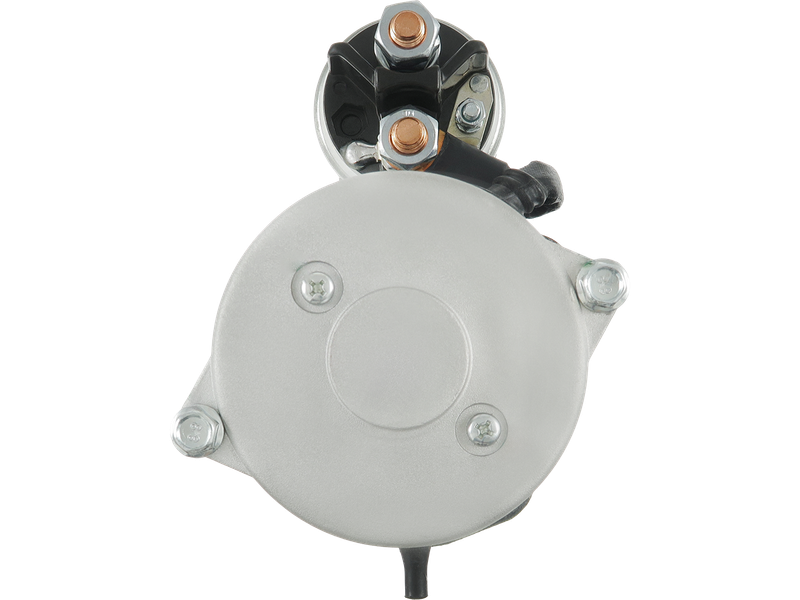

S9274 - Brand new AS-PL Starter motor

Specifications

Kilowatt	4.2 kW
Length (L.1)	322 mm
Mount Hole Center - Center (O.1)	127 mm
Mount Hole Center - Center (O.2)	90 mm
Mount Hole Center - Center (O.3)	90 mm
Mount Hole Diameter (C.1)	11.5 mm
Mount Hole Diameter (C.2)	11.5 mm
Mount Hole Diameter (C.3)	11.5 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	10 qty
Pinion at Rest (B)	48 mm
Rotation	CW
Spigot Diameter (A)	89 mm
Unit Type	ISKRA / LETRIKA
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
JOHN DEERE	6140 J 6.8	[6068?]
JOHN DEERE	6155 J 6.8	[6068?]
JOHN DEERE	6505 6.8	[6068]
JOHN DEERE	6506 4.5	[6068]
JOHN DEERE	6510	[4045T]	01.1998-01.2001
JOHN DEERE	6510L	[4045T]	01.1998-01.2001
JOHN DEERE	6510S	[4045T]	01.1998-01.2001
JOHN DEERE	6515 6.8	[6068DL070]
JOHN DEERE	6515 6.8	[6068DL071]
JOHN DEERE	6520 L 4.6	[4045HL273]	01.2002-01.2005
JOHN DEERE	6520 L 4.6	[4045T]	01.2002-01.2005
JOHN DEERE	6520 L 6.8	[6068DL..]	01.2002-12.2007
JOHN DEERE	6520 L 6.8	[6068HL..]	01.2002-12.2007
JOHN DEERE	6520 L 6.8	[6068TL..]	01.2002-12.2007
JOHN DEERE	6520 SE 4.6	[4045HL273]	01.2002-01.2005
JOHN DEERE	6520 SE 4.6	[4045T]	01.2002-01.2005
JOHN DEERE	6520 SE 6.8	[6068DL..]	01.2002-12.2007
JOHN DEERE	6520 SE 6.8	[6068HL..]	01.2002-12.2007
JOHN DEERE	6520 SE 6.8	[6068TL..]	01.2002-12.2007
JOHN DEERE	6605 6.8	[6068T]	01.2002-12.2007
JOHN DEERE	6610 SE 6.8	[6068T]	01.1997-12.2002
JOHN DEERE	6615 6.8	[6068HL271]	01.2002-01.2005
JOHN DEERE	6620 6.8	[6068HL272]
JOHN DEERE	6620 6.8	[6068HLA070]
JOHN DEERE	6620 6.8	[6068TL072]	01.2002-01.2005
JOHN DEERE	6620 SE 6.8	[6068HL272]
JOHN DEERE	6620 SE 6.8	[6068TL072]
JOHN DEERE	6715 6.8	[6068HL273]
JOHN DEERE	6715 6.8	[6068TL072]
JOHN DEERE	6810 6.8	[6068TLA]	01.1997-12.2001
JOHN DEERE	6820 6.8	[6068HL472]	01.1997-01.2005
JOHN DEERE	6820 6.8	[6068HLA71]	01.1997-01.2005
JOHN DEERE	6910 S 6.8	[6.0685S]	01.1997-12.2001
JOHN DEERE	6910 S 6.8	[6.068TLA]	01.1997-12.2001
JOHN DEERE	6920 6.8	[6068HL472]	01.1997-01.2005
JOHN DEERE	6920 6.8	[6068HLA71]	01.1997-01.2005
JOHN DEERE	6920 S 6.8	[6068HL474]
JOHN DEERE	6920 S 6.8	[6068HLA73]
JOHN DEERE	6920 SE 6.8	[6068TL074]
JOHN DEERE	7220 6.8	[6068HRW..]
JOHN DEERE	7220 6.8	[6068TP..]
JOHN DEERE	7220 6.8	[6068TRW..]
JOHN DEERE	7320 6.8	[6068HRW..]
JOHN DEERE	7320 6.8	[6068TP..]
JOHN DEERE	7320 6.8	[6068TRW..]
JOHN DEERE	7420 6.8	[6068]
JOHN DEERE	7420 6.8	[6068HRW..]
JOHN DEERE	7420 6.8	[6068TP..]
JOHN DEERE	7420 6.8	[6068TRW..]
JOHN DEERE	7425 6.8	[6068]
JOHN DEERE	7520 6.8	[6068]
JOHN DEERE	7520 6.8	[6068HRW..]
JOHN DEERE	7520 6.8	[6068TP..]
JOHN DEERE	7520 6.8	[6068TRW..]
JOHN DEERE	7525 6.8	[6068]

Reference Information

STR7818 6632415 RE504807 MAHMS416 MS416 AL70852 MAV122280 CGB-23818 IS1157 11.131.237 182-30324 416 25-5061 CGB-20002 LRS3898 S9274 MS RE503226 72736044 8263 SG2000 LRS03898 UD13181S EAA-112205 AZF4570 AL81154

Video/Publications

11.131.237 182-30324 25-5061 6632415 72736044 8263 AL70852 AL81154 AZF4570 CGB-20002 CGB-23818 EAA-112205 IS1157 LRS03898 LRS3898 MAHMS416 MAV122280 MS 416 RE503226 RE504807 SG2000 UD13181S
