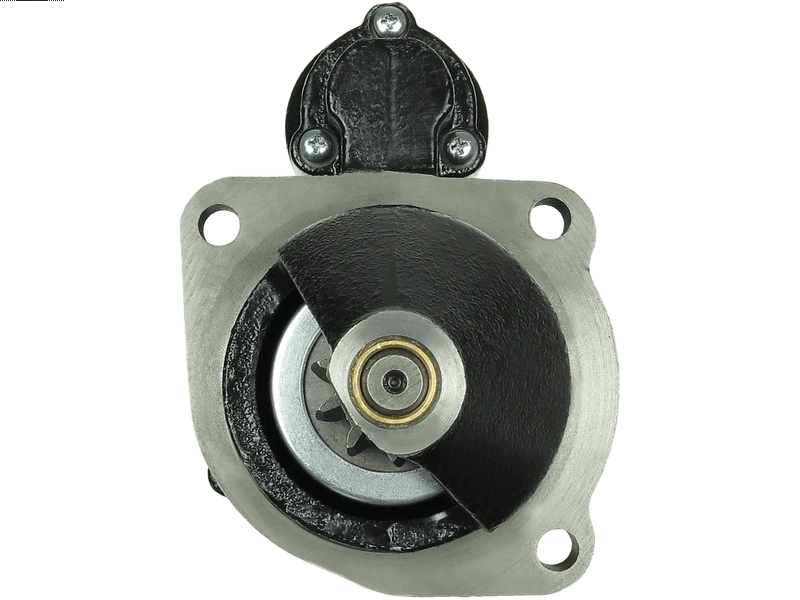

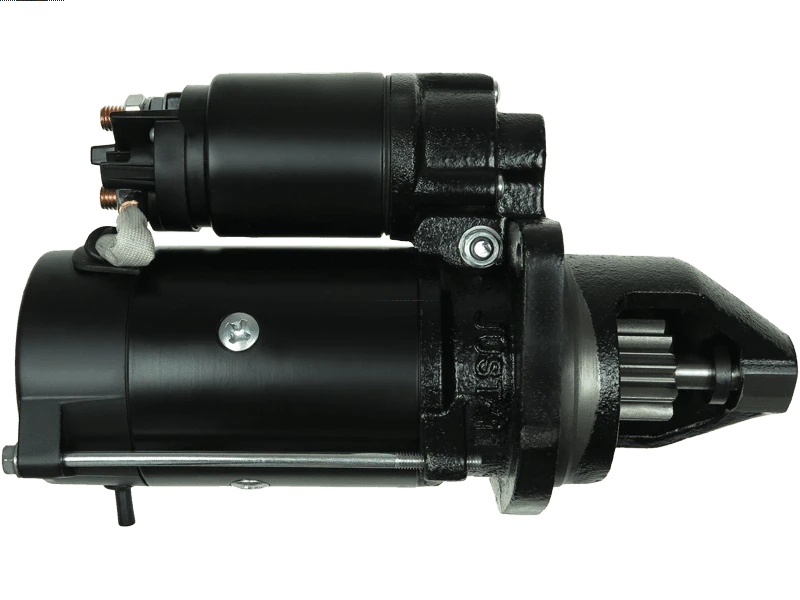

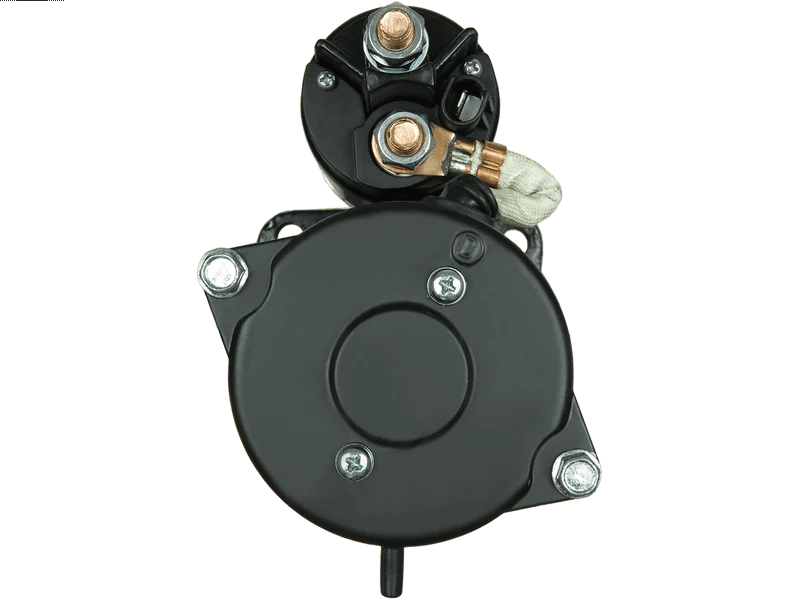

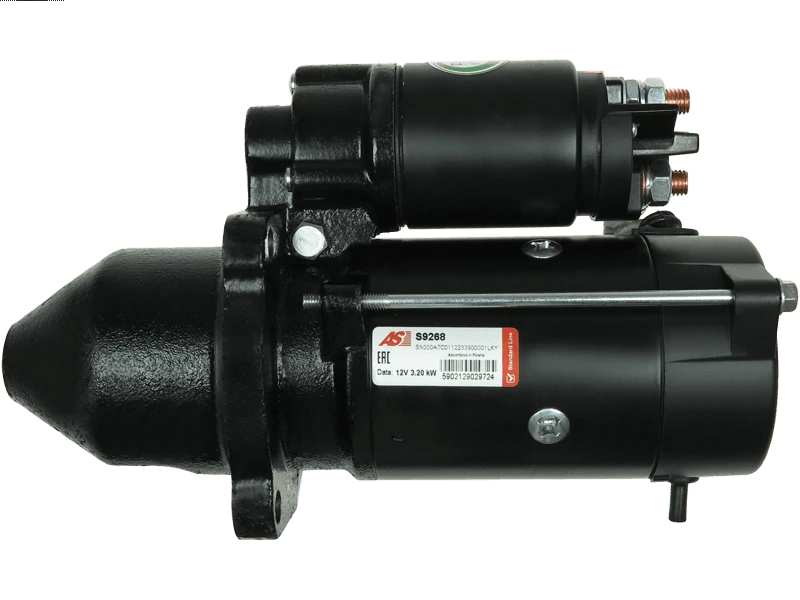

S9268 - Brand new AS-PL Starter motor

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
ISKRA / LETRIKA
Price:
NZ$ 647.62 including GST

NZ$ 563.14 excluding GST
each
S9268
No NZ stock
No NZ stock
11.131.426 11.131.728 11.132.101 113901 182-30356 25-4116 83646400 836667365 836673289 836867365 AZE4166 AZE4230 AZE4540 AZE4597 DRS0604 IS1064 LRS02444 UD11314S 11.131.116
Kilowatt3.2 kW
Length (L.1)286 mm
Mount Hole Center - Center (O.1)89 mm
Mount Hole Center - Center (O.2)89 mm
Mount Hole Center - Center (O.3)127 mm
Mount Hole Diameter (C.1)11 mm
Mount Hole Diameter (C.2)11 mm
Mount Hole Diameter (C.3)11 mm
No./Mount holes3 qty
No./Mount holes with thread0 qty
No./Teeth10 qty
No./Teeth (Replaces)10.11 qty
Pinion at Rest (B)48.5 mm
RotationCW
Spigot Diameter (A)89 mm
Unit TypeISKRA / LETRIKA
Voltage12 V
CASE CS 110 4.4 [420.85] 01.1997-12.2003
CASE CS 68 3.3 [320.80] 01.1998-12.2004
CASE CS 75 3.3 [320.81] 01.1998-12.2004
CASE CS 80 PRO 10.2007-
CASE CS 86 01.1999-01.2004
CRYSTAL TRACTOR ORION 13
MASSEY FERGUSON MF 3600 3.3 [33CTA] 01.1986-
MASSEY FERGUSON MF 5300
VALTRA 1180 S
VALTRA 6550Hi 4.4 [44ET] 01.2004-
VALTRA 6850Hi 4.4 [44EWI] 01.2004-
VALTRA A650 3.3 [320D] 01.2010-
VALTRA A650 F 3.3 [320D] 01.2010-
VALTRA A72 3.3 [33DTA]
VALTRA A75 4WD 3.3 [33DTA]
VALTRA A750 3.3 [320DS] 06.2009-
VALTRA A750F 3.3 [320DS] 06.2009-
VALTRA A75L 3.3 [33DT]
VALTRA A75N 3.3 Turbo [33DT]
VALTRA A83 3.3 [33CTA]
VALTRA A850 3.3 [320DS] 05.2009-
VALTRA A850 F 3.3 [320DS] 06.2009-
VALTRA A85N 4.4 Turbo [44DT]
VALTRA A93 3.3 [33CTA]
VALTRA A95 [44DT] 01.2004-12.2008
VALTRA A950 4.4 [420DS] 03.2009-
VALTRA A950 F 3.3 [420DS]
VALTRA A95N 4.4 [33DTA]
VALTRA A95N 4.4 Turbo [44DT]
VALTRA S230 8.4 [645ESBAE] 01.2001-12.2003
VALTRA S260 8.4 [645DSBAE] 01.2001-12.2003
VALTRA S280 8.4 [645DSBAE] 01.2003-12.2008
ZETOR 3320 2.6 [Z5201] 01.1992-
ZETOR 3321 2.6 [Z5201]
ZETOR 3340 2.6 [Z5201]
ZETOR 3341 2.7 [Z3001]
ZETOR 3511 2.7 [Z3001] 01.1994-
ZETOR 3513 [Z3001]
ZETOR 3520 [7201] 01.1995-
ZETOR 3540 [7201]
ZETOR 3545 2.7 [Z3001]
ZETOR 4320 3.9 [Z6201] 01.1992-
ZETOR 4320 3.9 [Z6202]
ZETOR 4321 3.9 [Z6201]
ZETOR 4321 3.9 [Z6202]
ZETOR 4340 3.9 [Z6201]
ZETOR 4340 3.9 [Z6202]
ZETOR 4341 3.9 [6202] 01.1997-
ZETOR 4712 2.5 [Z4701] 01.1974-12.1977
ZETOR 4718 2.5 [Z4701] 01.1974-12.1977
ZETOR 4911 2.6 [Z4901] 01.1976-12.1980
ZETOR 5011 2.6 [Z5001] 01.1980-12.1984
ZETOR 5211 2.6 [Z5001] 01.1984-12.1990
ZETOR 5213
ZETOR 5243
ZETOR 5245
ZETOR 5320 3.5 [Z7201] 01.1992-
ZETOR 5321 3.5 [7202] 01.1997-
ZETOR 5340 3.5 [Z7201]
ZETOR 5511 [Z5501]
ZETOR 5516 [Z5501]
ZETOR 5545 [Z5501]
ZETOR 5645 [Z5501]
ZETOR 5647 [Z5501]
ZETOR 5711 3.1 [Z5501] 01.1974-12.1977
ZETOR 5718 3.1 [Z5501]
ZETOR 5745 [Z5501]
ZETOR 5748 [Z5501]
ZETOR 5911 3.4 [Z5901] 01.1978-12.1980
ZETOR 5945 3.4 [Z5901]
ZETOR 6011 3.4 [Z6001] 01.1980-12.1984
ZETOR 6045 3.4 [Z6001]
ZETOR 6211 3.4 [Z6201] 01.1984-12.1990
ZETOR 6212 3.4 [Z6201] 01.2984-12.1990
ZETOR 6245 3.4 [Z6201]
ZETOR 6320 3.9 [Z7701] 01.1992-
ZETOR 6321 3.9 [Z7701] 01.1977-
ZETOR 6340 3.9 [Z7701]
ZETOR 6341 3.9 [Z7701]
ZETOR 6511
ZETOR 6518
ZETOR 6522
ZETOR 6711 3.4 [Z6701] 01.1974-12.1977
ZETOR 6718 3.4 [Z6701] 01.1974-12.1977
ZETOR 6745 3.4 [Z6701] 01.1974-12.1977
ZETOR 6748 3.4 [Z6701] 01.1974-12.1977
ZETOR 6911 3.4 [Z6901] 01.1978-12.1980
ZETOR 6918 3.4 [Z6901] 01.1978-12.1980
ZETOR 6945 3.4 [Z6901] 01.1978-12.1980
ZETOR 7011 3.4 [Z7001] 01.1980-12.1984
ZETOR 7045 3.4 [Z7001] 01.1980-12.1984
ZETOR 7211 3.5 [Z7201] 01.1984-12.1990
ZETOR 7245 3.5 [Z7201] 01.1984-12.1990
ZETOR 7321 3.9 [Z7302] 01.1997-
ZETOR 7340 3.9 [Z7301] 01.1992-
ZETOR 7341 3.9 [Z7302] 01.1997-
ZETOR 7520 4.1 [7801] 01.1991-
ZETOR 7540 01.1991-
ZETOR 7711 3.9 [Z7701] 01.1986-12.1990
ZETOR 7745 3.9 [Z7701] 01.1986-12.1990
11.131.116 11.131.426 11.131.728 11.132.101 113901 182-30356 25-4116 83646400 836667365 836673289 836867365 AZE4166 AZE4230 AZE4540 AZE4597 DRS0604 IS1064 LRS02444 LRS2444 MS 235 MS 592 UD11314S
