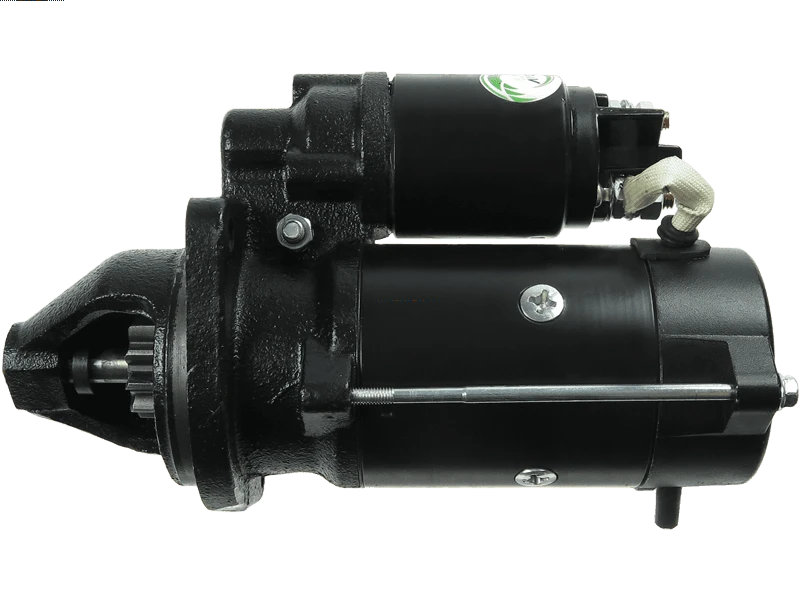

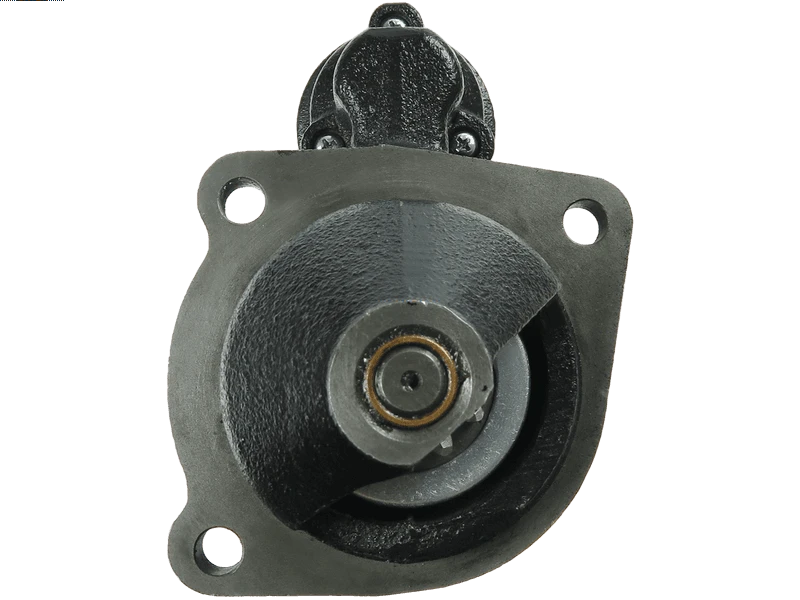

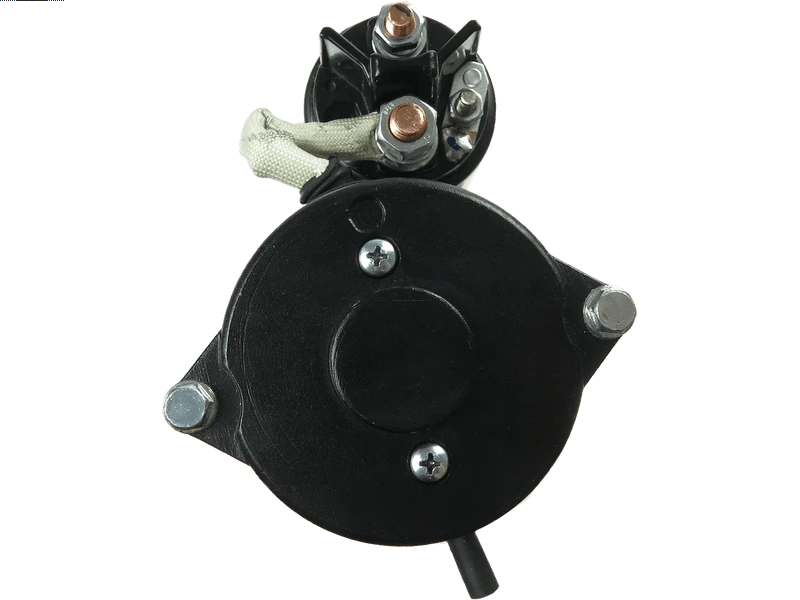

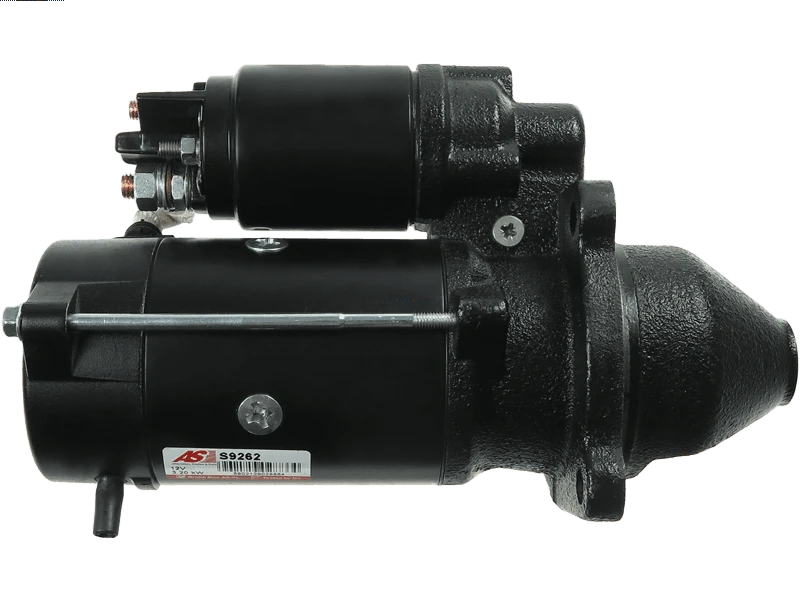

S9262 - Brand new AS-PL Starter motor

Specifications

Kilowatt	3.2 kW
Length (L.1)	339 mm
Mount Hole Center - Center (O.1)	89 mm
Mount Hole Center - Center (O.2)	89 mm
Mount Hole Center - Center (O.3)	126 mm
Mount Hole Diameter (C.1)	11 mm
Mount Hole Diameter (C.2)	11 mm
Mount Hole Diameter (C.3)	11 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	10 qty
Pinion at Rest (B)	29.5 mm
Rotation	CW
Spigot Diameter (A)	88.5 mm
Unit Type	ISKRA / LETRIKA
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
MASSEY FERGUSON	MF 200
MASSEY FERGUSON	MF 283		01.1979-
MASSEY FERGUSON	MF 283F
MASSEY FERGUSON	MF 290	[A4.248]	01.1979-01.1986
MASSEY FERGUSON	MF 290	[A4.248]	04.1980-
MASSEY FERGUSON	MF 292
MASSEY FERGUSON	MF 4200
MASSEY FERGUSON	MF 4265
MASSEY FERGUSON	MF 4265F
MASSEY FERGUSON	MF 4265K
MASSEY FERGUSON	MF 4275
MASSEY FERGUSON	MF 4275F
MASSEY FERGUSON	MF 4275K
MASSEY FERGUSON	MF 4283
MASSEY FERGUSON	MF 4283F
MASSEY FERGUSON	MF 4283K
MASSEY FERGUSON	MF 4290
MASSEY FERGUSON	MF 4290K
MASSEY FERGUSON	MF 450
MASSEY FERGUSON	MF 5200
MASSEY FERGUSON	MF 5300
MASSEY FERGUSON	MF 86
MASSEY FERGUSON	MX 720
MASSEY FERGUSON	MX 750

Reference Information

20419111OE AZE4221 S9262 11.132.168 MS3 11.131.659 11.132.050 CST21111GS UD11311S STR79333 AZE4206 35260950 AZE4237 6229400M91 MS 74203 AZE4156 6021111 AZE4250 11.132.151 35263300 3 11.131.963 323319A1 388187A1 388187A2 IS1185

Video/Publications

11.131.659 11.131.963 11.132.050 11.132.151 11.132.168 20419111OE 35260950 35263300 6021111 6229400M91 74203 AZE4156 AZE4206 AZE4221 AZE4237 AZE4250 CST21111GS IS1185 MS 3 MS3 S9262 UD11311S
