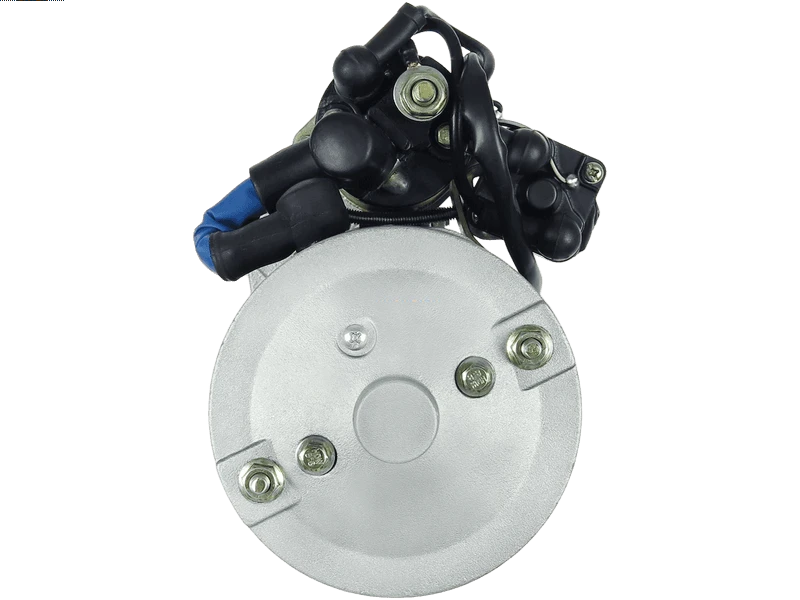

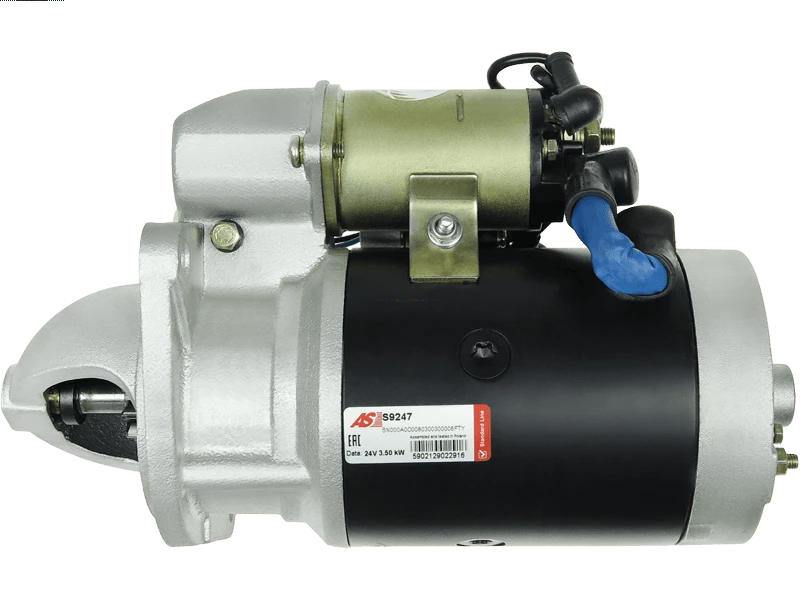

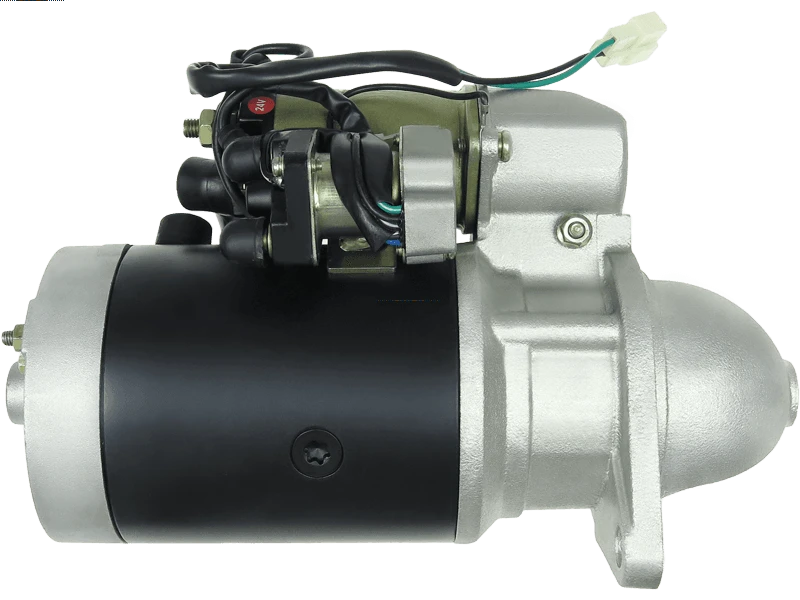

S9247 - Brand new AS-PL Starter motor

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
NIKKO
Price:
NZ$ 581.60 including GST

NZ$ 505.74 excluding GST
each
S9247
No stock in NZ
Item available to backorder, submit your order. Aprox 7-14 day delay - $40 Air freight charge additional
Purchase Qty:

0-21000-4830 0-21000-4831 02-21-2032 185-21020 600-813-2151 91-28-4073 941.519.092 UD11085S UNIT BOM 185-225 600-813-2101
Kilowatt3.5 kW
Length (L.1)299 mm
Mount Hole Center - Center (O.1)145 mm
Mount Hole Diameter (C.1)13.5 mm
Mount Hole Diameter (C.2)13.5 mm
No./Mount holes2 qty
No./Mount holes with thread0 qty
No./Teeth9 qty
Pinion at Rest (B)18 mm
RotationCW
Spigot Diameter (A)94 mm
Unit TypeNIKKO
Voltage24 V
Make Model Type Year
KOMATSU D20 [4D94-2] 01.1986-12.1987
KOMATSU D21 [4D94-2] 01.1986-12.1987
KOMATSU EC30 [4D94] 01.1981-12.1985
KOMATSU EC35V [4D94] 01.1981-12.1985
KOMATSU EC50 [4D94] 01.1981-12.1985
KOMATSU EC50Z [4D94] 01.1981-12.1985
KOMATSU EG30 [4D94] 01.1981-12.1982
KOMATSU EG30S [4D94] 01.1981-12.2008
KOMATSU PC100 [4D105] 01.1981-12.1983
KOMATSU PC120 [4D105] 01.1981-12.1983
KOMATSU PC60 [4D94] 01.1981-12.1985
BOM UNIT 600-813-2151 941.519.092 185-225 185-21020 UD11085S 0-21000-4830 0-21000-4831 600-813-2101 91-28-4073 02-21-2032
0-21000-4830 0-21000-4831 02-21-2032 185-21020 600-813-2101 600-813-2151 91-28-4073 941.519.092 UD11085S UNIT BOM 185-225
