S9241 - Brand new AS-PL Starter motor

Name: Brand new AS-PL Starter motor
Brand: AS-PL
SKU: S9241
Price: 371.15 NZD
Availability: InStock

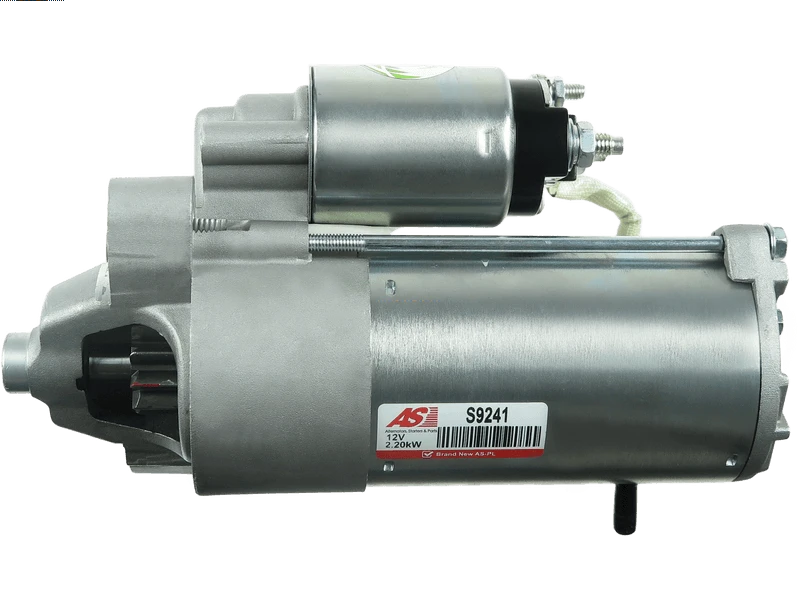

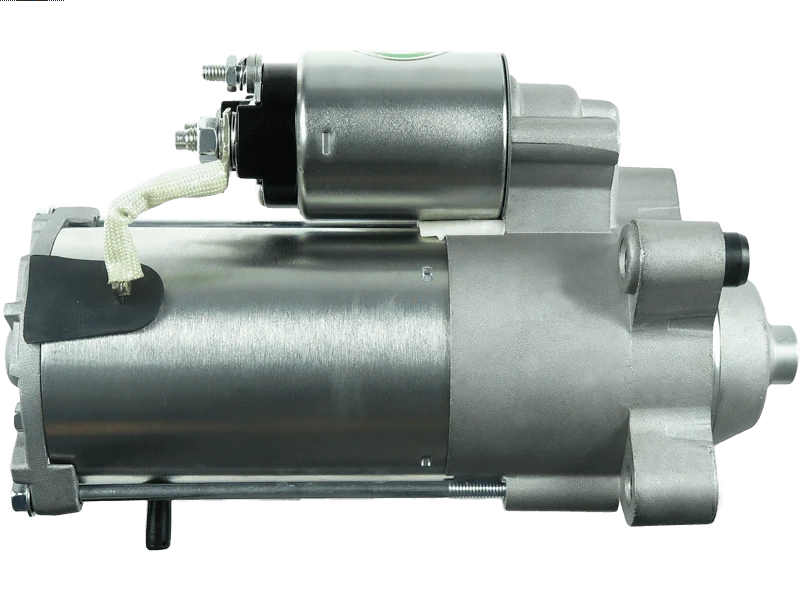

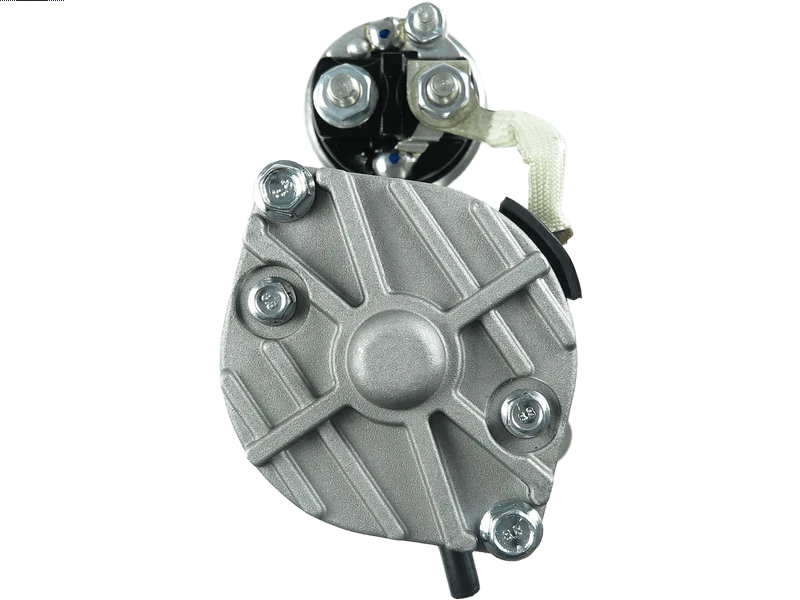

Brand new AS-PL Starter motor

STANDARD LINE

Manufacturer:

AS-PL

Replacement For:

FORD

Price:

NZ$ 371.15 including GST

NZ$ 322.74 excluding GST

UOM:

each

Product Code:

S9241

Quantity In Stock Nationally:

No stock in NZ

Availability:

Item available to backorder, submit your order. Aprox 7-14 day delay - $40 Air freight charge additional

Associated Numbers
Specifications
Vehicle Applications
Reference Information
Video/Publications
Add Your Number

1427763 1476606 1529431 20-100-01042 20450121OE 220419 25-3496 254885 254885V 590.558.103 6014121 6612N 6G9N-11000-GC AEY2324 CS1537 CST14121 CST14121AS CST14121ES CST14121GS CST14121OS CST14121RS DRS0156 LRS02324 SS746 STR82456 UD12395S

Kilowatt	2.2 kW
Length (L.1)	244 mm
Mount Hole Center - Center (O.1)	102 mm
Mount Hole Center - Center (O.2)	65 mm
Mount Hole Center - Center (O.3)	65 mm
Mount Hole Diameter (C.1)	M10x1.5 mm
Mount Hole Diameter (C.2)	M10x1.5 mm
Mount Hole Diameter (C.3)	M10x1.5 mm
No./Mount holes	3 qty
No./Mount holes with thread	3 qty
No./Teeth	10 qty
Pinion at Rest (B)	-5 mm
Rotation	CW
Spigot Diameter (A)	63 mm
Unit Type	FORD
Voltage	12 V

Make	Model	Type	Year
FORD	Galaxy 2.2 TDCi	[KNWA]	11.2010-06.2015
FORD	Galaxy 2.2 TDCi	[Q4WA]	03.2008-12.2012
FORD	Mondeo 2.2 TDCi	[KNBA]	07.2010-01.2015
FORD	Mondeo 2.2 TDCi	[KNBA]	10.2010-01.2015
FORD	Mondeo 2.2 TDCi	[Q4BA]	03.2008-10.2010
FORD	S-Max 2.2 TDCi	[KNWA]	07.2010-12.2014
FORD	S-Max 2.2 TDCi	[Q4WA]	03.2008-12.2012

DS1266 42118601 CS1537 S9241 458748 GS001042-N STRF959 6014121.1 STR82456 254885 20450121OE ANM12376X CST14121GS 42001036 590.558.103.020 1529431 20-100-01042 88214436 6612N LRS2324 1427763 12325 S12VS0481A2 S12VS0481 220419 AEY2324 254885V 220419A 6G9N-11000-GA 6G9N-11000-GB STR8982 1476606 DRS0156 STRF959VI STF1509 8697587AC 8EA011612-061 590.558.103.028 RE6G9N11000GC 8697587A-C 8697587 6G9N-11000-GC 115405 SG1170 332156 LRS02324 25-3496 50262 3905 1904993 UD12395S 590.558.103.230 STM1263

STRF959 S9241 UD12395S AEY2324 115405 CST14121GS 3905 DRS0156 DS1266 12325 25-3496 220419 1529431 1904993 6G9N-11000-GC SG1170 CS1537 42118601 STF1509 590.558.103.020 590.558.103.230 20450121OE STM1263 6014121.1 20-100-01042 8697587 8697587A-C 6612N STR82456
