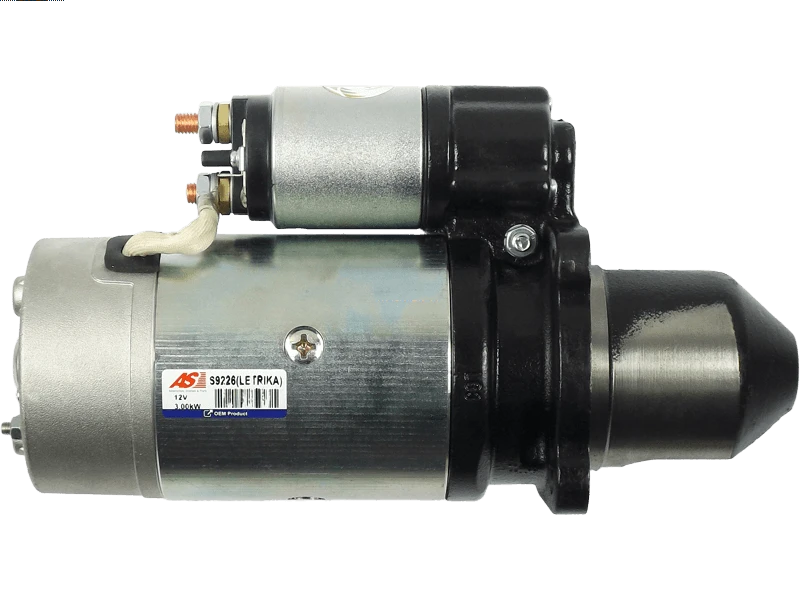

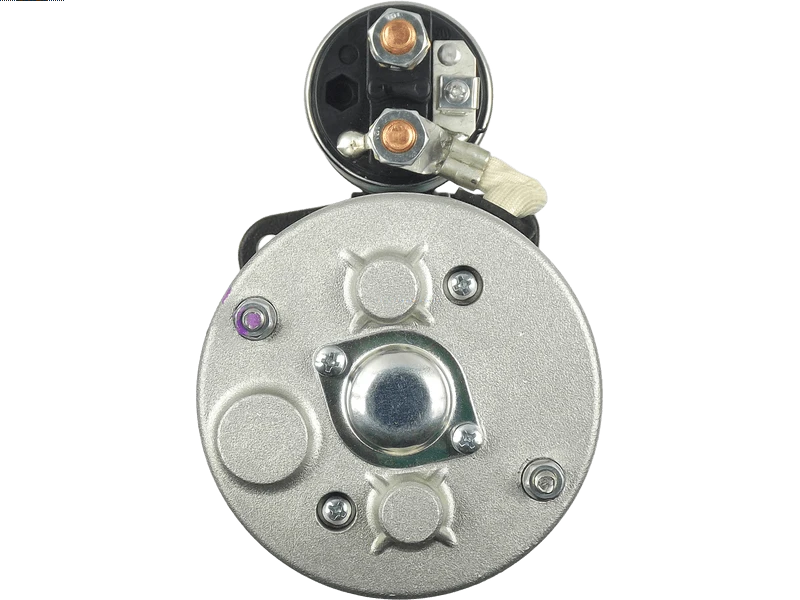

S9226(LETRIKA) - Brand new OEM ISKRA / LETRIKA Starter motor

Specifications

Kilowatt	3 kW
Length (L.1)	337 mm
Mount Hole Center - Center (O.1)	127 mm
Mount Hole Center - Center (O.2)	90 mm
Mount Hole Center - Center (O.3)	90 mm
Mount Hole Diameter (C.1)	11 mm
Mount Hole Diameter (C.2)	11 mm
Mount Hole Diameter (C.3)	11 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	9 qty
Pinion at Rest (B)	47.5 mm
Rotation	CW
Spigot Diameter (A)	89 mm
Unit Type	ISKRA / LETRIKA
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
LAMBORGHINI	R 804DT 4.6		02.1979-12.1979
LAMBORGHINI	R 904DT 5.0		02.1979-12.1979
MARSHALL	D 135
MARSHALL	D 150
MERCEDES BENZ TRUCKS & BUSES	U1000 5.7	[OM353.962]	01.1977-05.1984
MERCEDES BENZ TRUCKS & BUSES	U1000T 5.7	[OM353.980]	01.1977-12.1982
MERCEDES BENZ TRUCKS & BUSES	U1100 5.7	[OM353.940]	01.1977-12.1987
MERCEDES BENZ TRUCKS & BUSES	U1100L 5.7	[OM353.940]	01.1977-12.1987
MERCEDES BENZ TRUCKS & BUSES	U1100T 5.7	[OM353.940]	03.1989-
MERCEDES BENZ TRUCKS & BUSES	U1150 5.7	[OM353.940]	05.1988-
MERCEDES BENZ TRUCKS & BUSES	U1150L 5.7	[OM353.940]	05.1988-
MERCEDES BENZ TRUCKS & BUSES	U1300 5.7	[OM353.973]	01.1977-12.1980
MERCEDES BENZ TRUCKS & BUSES	U1300L 5.7	[OM353.961]	01.1977-05.1984
MERCEDES BENZ TRUCKS & BUSES	U1500 5.7	[OM353.958]	01.1977-12.1980
MERCEDES BENZ TRUCKS & BUSES	U1500T 5.7	[OM353.958]	01.1977-12.1980
MERCEDES BENZ TRUCKS & BUSES	U1700 5.7	[OM353.959]	05.1978-12.1980
MERCEDES BENZ TRUCKS & BUSES	U1700L 5.7	[OM353.959]	05.1978-12.1980
MERCEDES BENZ TRUCKS & BUSES	U800L 3.8	[OM314.917]	02.1981-05.1988
MERCEDES BENZ TRUCKS & BUSES	U900 5.7	[OM353.902]	05.1988-
MERCEDES BENZ TRUCKS & BUSES	U900 5.7	[OM353.940]	05.1988-
MERCEDES BENZ TRUCKS & BUSES	U900 6.0	[OM366.939]	11.1988-
SAME	Ariete 5.0	[DA1154]	01.1967-12.1971
SAME	Drago 5 .4	[D37-986]	11.1971-12.1977
STEYR	1100A 6.0	[WD610.40]	07.1971-09.1977
STEYR	11086	[WD610.44]
STEYR	11086.0	[WD610.44]
STEYR	1400A 6.0	[WD610.44]
STEYR	8140 6.6	[WD612.40]	06.1977-12.1981
STEYR	8150A 6.6	[WD612.87]	12.1982-
STEYR	8160A 6.3	[WD612.85]	06.1974-12.1981
STEYR	8165A 6.6	[WD612.86]	06.1986-
STEYR	8170A 6.6	[WD612.89]	05.1981-12.1988
STEYR	980A 4.4	[WD412.40]	04.1976-09.1977
STEYR	988A 4.4	[WD412.41]	06.1977-03.1979
STEYR	Engine	[WD612.4]
STEYR	Engine 6.6	[WD612.85]
VOLVO BM	LM218 4.0	[1113]	01.1961-12.1970
VOLVO BM	LM218 TD 4.0	[1113]	01.1961-12.1970

Reference Information

41200090004 860114Z 240847 1161384 A0031511401 LETIS0751 22.0605 1359077 1359111 8811250 2151570180 CS605 DRS3485 AZJ3269 BOM 0001367010 CST10306 UD11901(LETRIKA)S UNIT MS 1367010 550.011.093 MS280 CST10306GS 9000083027 280 0001359077 9000083029 0001359111 3151140180 000986011250 260-67135 A3431517001 S12BH0673A2 IS0751 EAA-111679 41200090001 LRS01978 120-6053 DRS1250 6010306 1163669 3431517001 12270774 0001359100 A0021515701 CST10306OS 120-6027 19024218 STB0235 1359013 STR50158 A002151570180 33552 5710901 11.130.751 10718 25-0037 10718B 0009000083027 943252283 0009000083029 STR79059 0001367039 CST10306AS 0009000083053 0009000083014 A003151140180 296190900 0001359013 8043 CST10306ES 9000083053 19024227 10605 1359100 19024269 986011250 220252 21515701 9000083014 1367039 31511401 LRS1978 002-151-57-01 CST10306RS

Video/Publications

0001359013 0001359077 0001359100 0001359111 0001367010 0001367039 002-151-57-01 0021515701 0031511401 0986011250 10605 10718 10718B 11.130.751 12270774 19024218 19024227 19024269 22.0605 240847 25-0037 260-67135 33552 41200090001 41200090004 550.011.093 6010306 8043 860114Z 8811250 9000083014 9000083027 9000083029 9000083053 943252283 A0021515701 A0031511401 AZJ3269 CS605 CST10306 CST10306AS CST10306ES CST10306GS CST10306OS CST10306RS DRS1250 DRS3485 EAA-111679 IS0751 LETIS0751 LRS01978 LRS1978 MS 280 MS280 STB0235 STR50158 UD11901(LETRIKA)S UNIT BOM 120-6027 UNIT BOM 120-6053 220252
