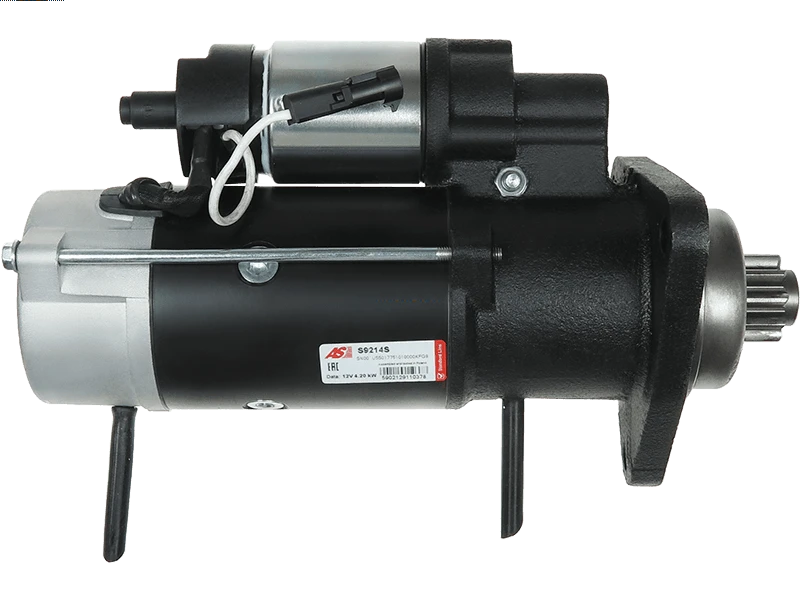

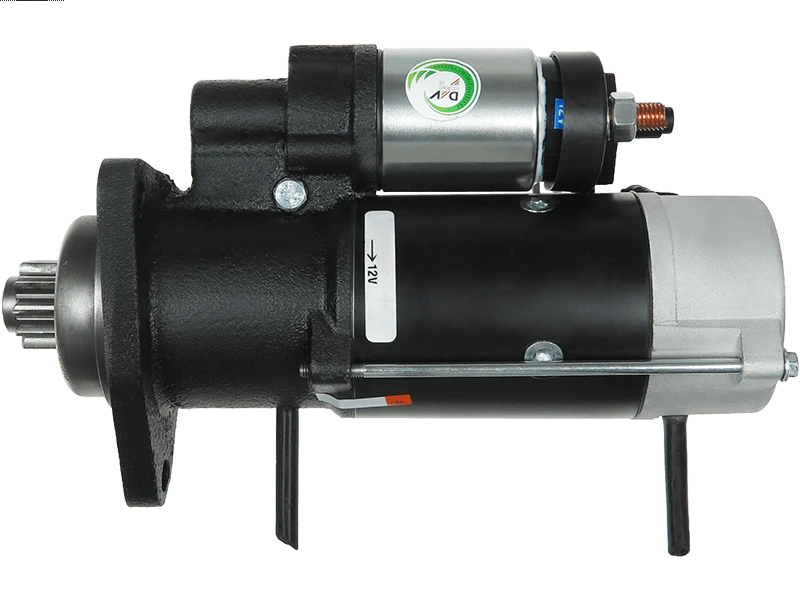

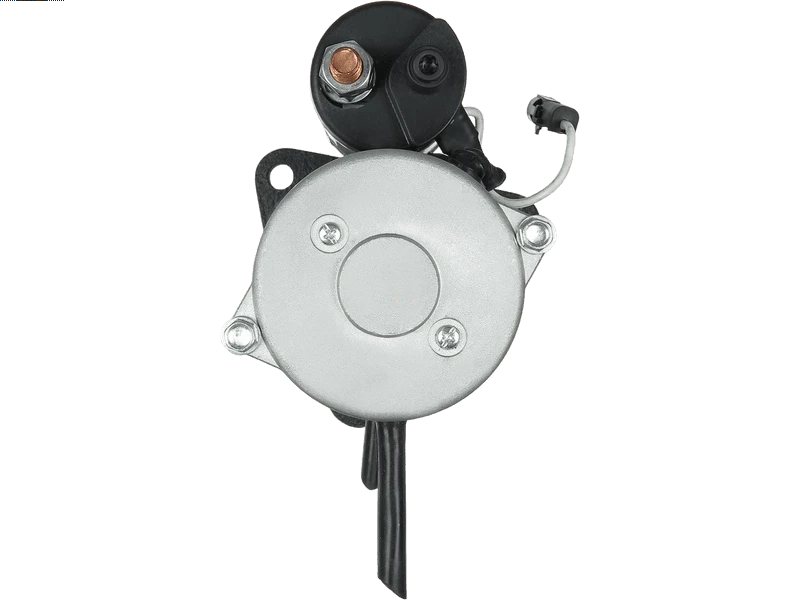

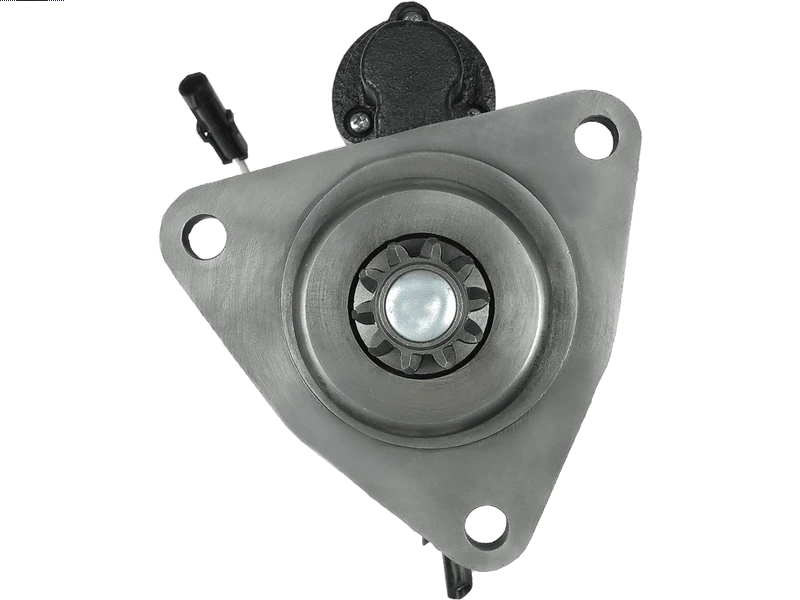

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
ISKRA / LETRIKA
Price:
NZ$ 540.01 including GST
NZ$ 469.57 excluding GST
or four payments of $135.00
with
Learn More
each
S9214S
No stock in NZ currently
No stock in NZ currently
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
11.131.830Associated Numbers
11.131.830 AZF4687 UD16547S 114480 CST21201GS 8140 273-42103 25-4274 84213446 IS1114 11.131.260 11.131.798 AZF4627 AZF4683 STN3429 STI3429 STI9429 255383M LRS02601 MS64 72735692 87425232 87499205 540.519.103 20419102OE 182-30162 6021201.1 STR60697 MAHMS64Specifications
| Kilowatt | 4.20 kW |
| Length (L.1) | 327 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 13.50 mm |
| Mount Hole Diameter (C.2) | 13.50 mm |
| Mount Hole Diameter (C.3) | 13.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 47.50 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 92 mm |
| Unit Type | ISKRA / LETRIKA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CASE | Magnum 220 | [MU7] | 09.2006- |
| CASE | Magnum 225 8.3 | [MU7] | 09.2006- |
| CASE | Magnum 235 | ||
| CASE | Magnum 240 | [MU7] | 09.2006- |
| CASE | Magnum 250 8.3 | ||
| CASE | Magnum 255 | [MU7] | 08.2006- |
| CASE | Magnum 260 | ||
| CASE | Magnum 270 | [MU7] | 09.2006- |
| CASE | Magnum 280 8.3 | [MU7] | 09.2006- |
| CASE | Magnum 290 | ||
| CASE | Magnum 305 | [MU7] | 09.2006- |
| CASE | Magnum 310 | ||
| CASE | Magnum 315 | ||
| CASE | Magnum 335 8.9 | [MU7] | 09.2006- |
| CASE | Magnum 340 | ||
| CASE | Magnum 370 | ||
| FIAT | Engine | ||
| NEW HOLLAND | T8010 | [CDC] | 01.2006- |
| NEW HOLLAND | T8020 | ||
| NEW HOLLAND | T8030 | [CDC] | 01.2006- |
| NEW HOLLAND | T8040 | [CDC] | |
| NEW HOLLAND | T8050 9.0 | [CDC] | |
| NEW HOLLAND | T9020 9.0 | [CDC] | 01.2007- |
| NEW HOLLAND | TG215 8.3 | 01.2008- | |
| NEW HOLLAND | TG245 8.3 | 01.2008- | |
| NEW HOLLAND | TG275 8.3 | 01.2008- |
Reference Information
| 11.131.260 | ISKRA / LETRIKA |
| 11.131.798 | ISKRA / LETRIKA |
| 11.131.830 | ISKRA / LETRIKA |
| 114480 | CARGO |
| 182-30162 | ROBERT'S |
| 20419102OE | REAL |
| 25-4274 | ELSTOCK |
| 255383M | KUHNER |
| 273-42103 | DIXIE |
| 540.519.103 | PSH |
| 6021201.1 | SANDO |
| 72735692 | MAHLE |
| 8140 | CEVAM |
| 84213346 | SPERRY NEW HOLLAND |
| 84213346R | SPERRY NEW HOLLAND |
| 84213446 | FIAT |
| 87425232 | NEW HOLLAND |
| 87499205 | NEW HOLLAND |
| AZF4627 | ISKRA / LETRIKA |
| AZF4683 | ISKRA / LETRIKA |
| AZF4687 | ISKRA / LETRIKA |
| CST21201GS | CASCO |
| F032114480 | CARGO |
| IS1114 | ISKRA / LETRIKA |
| LRS02601 | LUCAS |
| LRS2601 | LUCAS |
| MAHMS64 | WOODAUTO |
| MS64 | MAHLE |
| MS 64 | MAHLE |
| S133.354 | PSH |
| S144.444 | PSH |
| STI3429 | KRAUF |
| STI9429 | KRAUF |
| STN3429 | KRAUF |
| STR60697 | WOODAUTO |
| STR79268 | ELECTROLOG |
| UD16547S | AS-PL |
