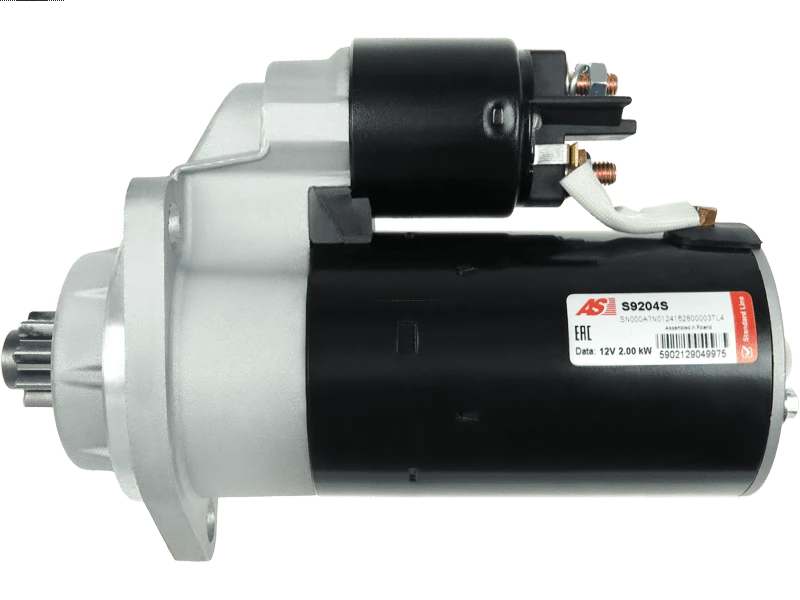

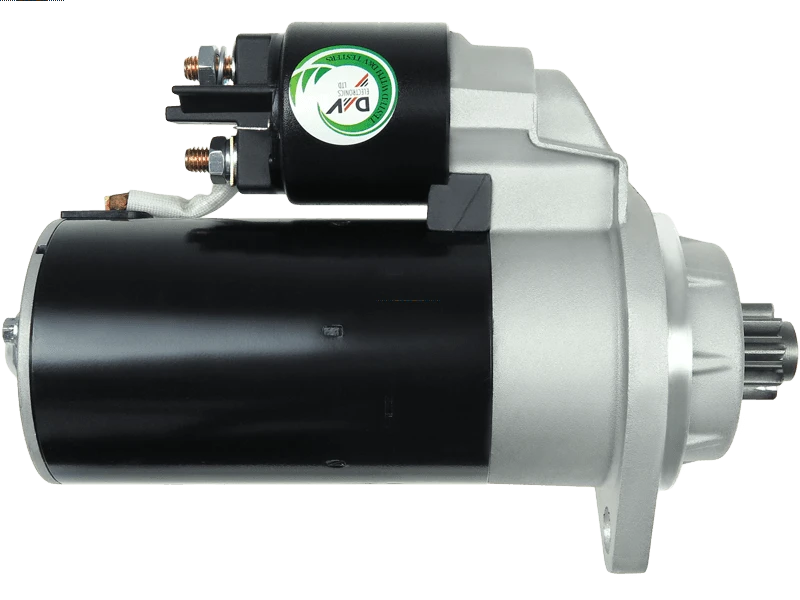

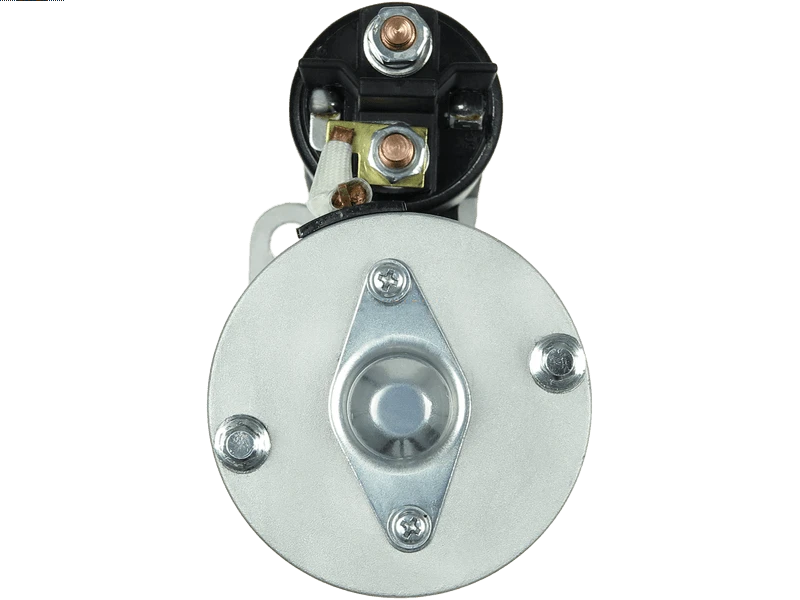

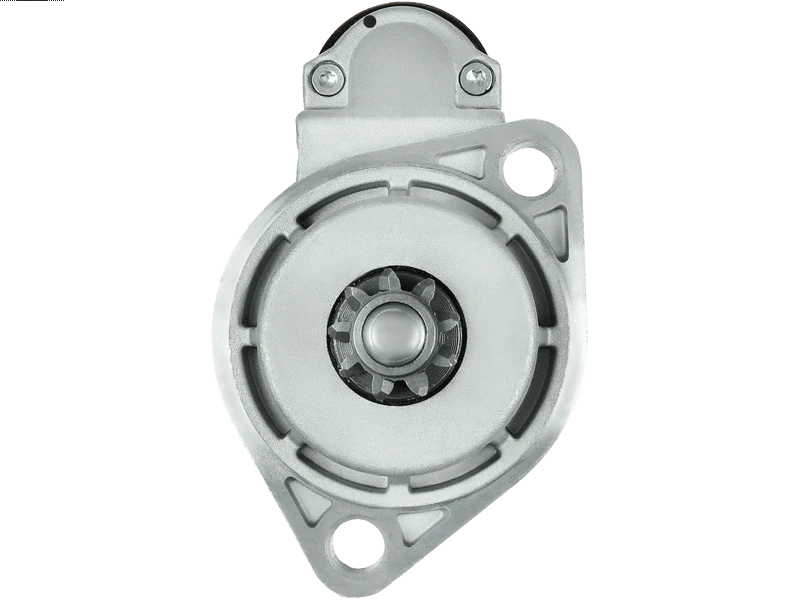

S9204S - Brand new AS-PL Starter motor

Name: Brand new AS-PL Starter motor
Brand: AS-PL
SKU: S9204S
Price: 527.75 NZD
Availability: InStock

Brand new AS-PL Starter motor

STANDARD LINE

Manufacturer:

AS-PL

Replacement For:

ISKRA / LETRIKA

Price:

NZ$ 527.75 including GST

NZ$ 458.92 excluding GST

UOM:

each

Product Code:

S9204S

Quantity In Stock Nationally:

No stock in NZ

Availability:

Item available to backorder, submit your order. Aprox 7-14 day delay - $40 Air freight charge additional

Associated Numbers
Specifications
Vehicle Applications
Reference Information
Video/Publications
Add Your Number

11.131.527 114677 25-4433 30253N 50496200 50496201 72735768 730.505.092 AZE2605 AZE2662 DRS0266 IS1149 LETIS1149 LRS02760 MS140 S-6582 S9204S STR60696 UD11325S

Kilowatt	2 kW
Length (L.1)	235 mm
Mount Hole Center - Center (O.1)	102 mm
Mount Hole Diameter (C.1)	12.5 mm
Mount Hole Diameter (C.2)	12.5 mm
No./Mount holes	2 qty
No./Mount holes with thread	0 qty
No./Teeth	9 qty
Pinion at Rest (B)	40.5 mm
Rotation	CW
Spigot Diameter (A)	82 mm
Unit Type	ISKRA / LETRIKA
Voltage	12 V

Make	Model	Type	Year
HATZ	Engine	[1D41]	01.2007-

72735768 AZE2662 6021118.1 S12ML0390 S12ML0390A2 S-6582 LETIS1149 25-4433 30253N AZE2605 730.505.092 50496201 50496200 UD11325S 98417134 STR60696 MS140 MS CST21118GS 1721000 114677 140 20419811BN CST21118AS 6021118 11.131.527 LRS02760 IS1149 20419811OE LRS2760 STR79203 S9204S

11.131.527 114677 25-4433 30253N 50496200 50496201 72735768 730.505.092 AZE2605 AZE2662 IS1149 LETIS1149 LRS02760 LRS2760 MS 140 MS140 S-6582 S9204S STR60696 UD11325S
