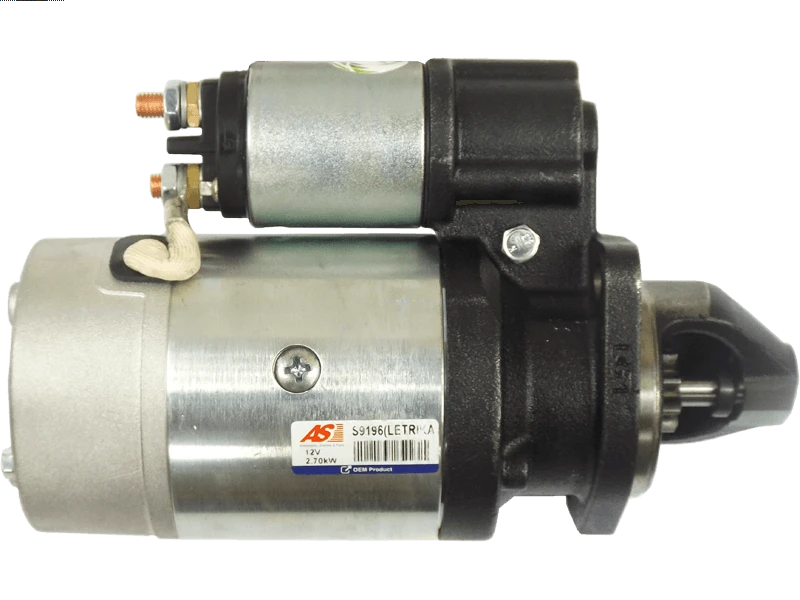

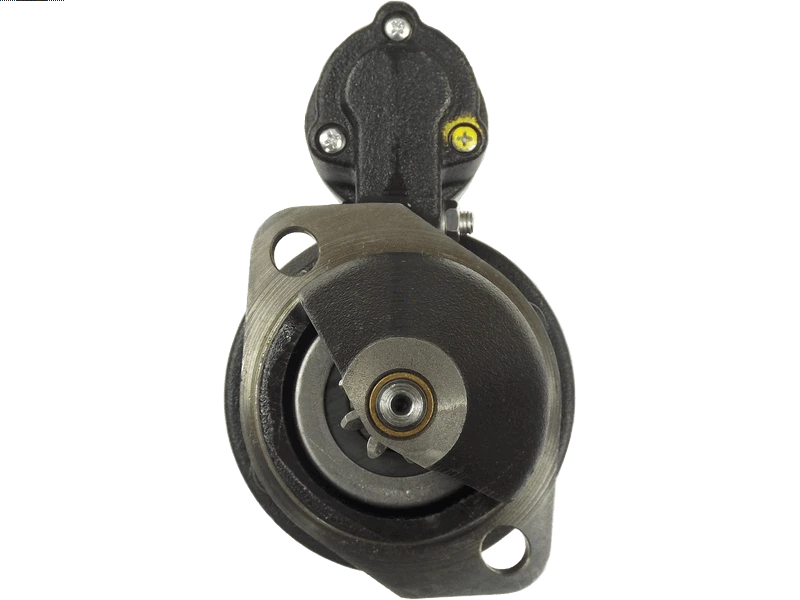

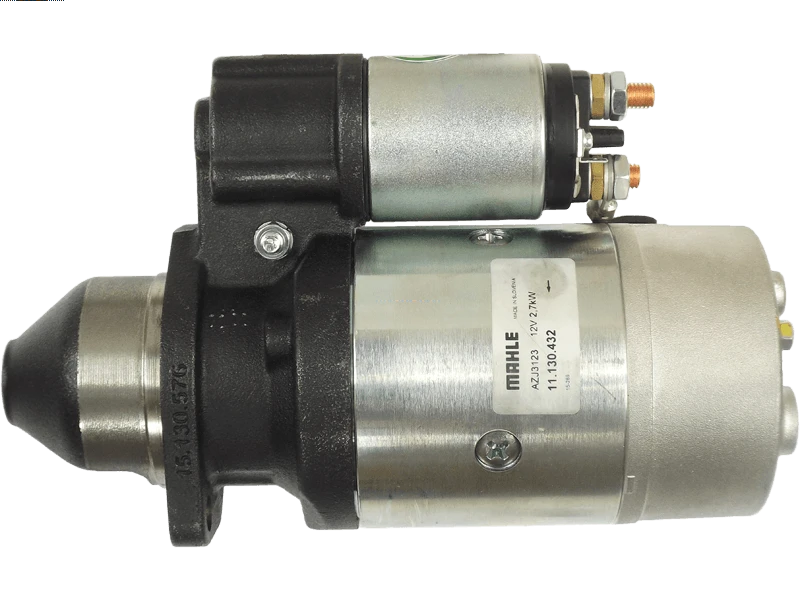

S9196(LETRIKA) - Brand new OEM ISKRA / LETRIKA Starter motor

Specifications

Kilowatt	2.7 kW
Length (L.1)	294 mm
Mount Hole Center - Center (O.1)	105 mm
Mount Hole Diameter (C.1)	13.5 mm
Mount Hole Diameter (C.2)	13.5 mm
No./Mount holes	2 qty
No./Mount holes with thread	0 qty
No./Teeth	9 qty
Pinion at Rest (B)	21 mm
Rotation	CW
Spigot Diameter (A)	82 mm
Unit Type	ISKRA / LETRIKA
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
AGRIA	6900 D 1.2	[RW270]	06.1982-
ARONA	AD 295 1.4		02.1976-
ARONA	AD 395 2.0		02.1976-
ARONA	AD 4100M		09.1982-
ARONA	AD 495M 2.0		02.1976-
ARONA	AD 952PM		02.1976-
ARONA	AD 953		02.1976-
ARONA	AD 954PM		02.1976-
BAUTZ	Commodore		01.1968-12.1972
BAUTZ	T600		01.1968-12.1972
BERTOLINI	740 1.8	[DVA1750]	01.1987-
CARRARO	Supertigre 625 L		01.1969-09.1978
CARRARO	Supertigre 635 1.4	[LDA672]	01.1970-09.1978
CARRARO	Supertigre 650 2.0	[LDA673]	01.1973-09.1978
CARRARO	Supertigre 835 1.4	[LDA672]	01.1973-09.1978
CARRARO	Supertigre 850 2.0	[LDA673]	01.1973-09.1978
CARRARO	Tigrone Atlas 750 2.0	[LDA673]	01.1972-09.1978
CARRARO	Tigrone Tropical 750 2.0	[LDA673]	01.1972-09.1978
FERRARI	76	[LDA673]	06.1980-
FERRARI	85	[LDA673]	06.1980-
FERRARI	86	[LDA833]	06.1980-
FERRARI	933 1.8	[DVA1750]	01.1982-12.1989
FERRARI	94SLT 1.8	[DVA1750]	09.1989-12.1991
FERRARI	95 1.5	[DVA1750]	06.1980-09.1984
GOLDONI	1038 1.7	[5LD825.2]	03.1982-12.1985
GOLDONI	1039 1.6	[LDA832]	03.1982-12.1985
GOLDONI	1040 1.9	[DVA1750]	06.1979-12.1988
GOLDONI	230	[LDA672]	01.1982-12.1984
GOLDONI	236 1.5	[DVA1550]	06.1978-12.1984
GOLDONI	238 1.6	[5LD825.2]	02.1982-
GOLDONI	240 1.8	[DVA1750]	06.1979-10.1988
GOLDONI	245 1.9	[11LD625.3]	01.1989-
GOLDONI	336 1.5	[DVA1550]	06.1974-11.1990
GOLDONI	3445 1.9	[11LD625.3]	10.1988-
GOLDONI	40 B 1.6	[11LD535]	06.1991-
GOLDONI	45 B 1.6	[LDA832]	06.1991-12.1991
GOLDONI	50 B 1.9	[11LD626.3]	06.1991-
GOLDONI	834 1.5	[DVA1550]	09.1977-12.1984
GOLDONI	938 1.3	[5LD825.2L]	09.1988-04.1990
GOLDONI	945 RS 1.9	[11LD625.3]	04.1990-
GOLDONI	Transporter 336 1.5	[DVA1550]	01.1974-06.1986
GOLDONI	Universal 224
GOLDONI	Universal 226
GOLDONI	Universal 230 1.4	[LDA672]	06.1982-12.1984
GUTBROD	2500 D 0.7	[1071DRT]	03.1973-03.1984
HANOMAG	F 20		01.1971-12.1973
HANOMAG	F 25		01.1971-07.1978
HANOMAG	F 30		01.1971-12.73
HANOMAG	F 35		01.1971-12.73
KHD	Engine	[F1L410]	03.1968-06.1973
KHD	Engine	[F1L411D]	07.1973-12.1975
KHD	Engine	[F1L411W]	07.1973-12.1975
KHD	Engine	[F2L410]	03.1968-06.1973
LAMBORGHINI	R 503	[47HP]	03.1971-12.1982
LAMBORGHINI	R 603		03.1971-
LANZ	NF		01.1972-03.1977
LANZ	NI R		01.1972-03.1977
LANZ	NO		01.1972-03.1977
LANZ	RA		01.1972-03.1977
LOMBARDINI	5LD 825/2
LOMBARDINI	5LD 825/3
LOMBARDINI	5LD 825/4
LOMBARDINI	5LD 826/2
LOMBARDINI	5LD 930/3		04.1983-
LOMBARDINI	5LD 930/4		04.1983-
LOMBARDINI	832		04.1977-
LOMBARDINI	834		07.1976-
LOMBARDINI	L 27		03.1977-
LOMBARDINI	L 40		03.1972-
LOMBARDINI	L 54		03.1972-
LOMBARDINI	LADM 833		07.1976-
LOMBARDINI	LADM 834		07.1976-
LOMBARDINI	LDA 674		07.1976-12.1981
LOMBARDINI	LDA 833		07.1976-
LOMBARDINI	LDAL 674		07.1976-12.1981
LOMBARDINI	LDAM 672		04.1977-
LOMBARDINI	LDAM 673		04.1977-12.1979
LOMBARDINI	LDAM 674		07.1976-12.1981
LOMBARDINI	LDAM 832		04.1977-12.1979
LOMBARDINI	LDAM 833		07.1976-12.1979
LOMBARDINI	LDAM 834		07.1976-12.1979
MAG-MOTOSACOCHE	1067 DRT		02.1973-03.1975
MWM	D225-2		03.1968-12.1976
MWM	D280-2		03.1968-12.1973
MWM	D280-3		03.1968-12.1973
MWM	D280-4		03.1968-12.1973
MWM	D308-2		03.1968-12.1973
MWM	D308-3		03.1968-12.1973
MWM	D308-4		03.1968-12.1973
MWM	TD208-4		03.1968-12.1973
O&K	Motrak S10	[F1L411D]	01.1974-05.1976
REFORMWERKE BAUER	Metrac 3000		03.1977-12.1978
SCHANZLIN	Gigant 300		10.1976-03.1944
SCHANZLIN	Gigant 300 K		10.1976-03.1977
SCHILTER	TR 1000	[LDA90]	03.1966-12.1977
SCHILTER	TR 1500	[LDA90]	03.1966-12.1977
SCHILTER	TR 2000		03.1966-12.1977
SLANZI	DVA 1500 1.5		11.1968-10.1987
SLANZI	DVA 1550 1.5		04.1974-11.1983
SLANZI	DVA 1550 S 2 1.5		10.1983-12.1991
SLANZI	DVA 1750 1.8		01.1978-12.1991
SLANZI	DVA 2001 2.0		06.1985-03.1987
SLANZI	DVA 2350 2.3		01.1984-12.1991
STEYR	30

Reference Information

72735941 220912 520.003.092.018 STG2039BW 520.003.092.017 8059 91-15-6847 190 520.003.092.010 58400450 LETIS0432 1362017 STB2039 11516001 1362018 CST10166AS SG0590 254007 6005706625 SG0553 11.130.612 17112N 6.0572E+11 72735818 AZJ3192 2130090013 5840067 MAHMS190 0001366004 STB2039LC S12BH0801A2 STB5039LC 112039 1142566685 0001362040 1362040 MS 1303920 520.003.092 STB2039TJ TS-6012 25-1415 CST10166GS STR7924 220268 720534 STR22114 MSN232 IS0432 855159400 1366004 11511301 000986017310 STB9039UL STR50000 MS190 63217158 MT71GB 7664 520.003.092.312 8EA015642-511 520.003.092.311 58400070 58400670 MS313 A0021519501 16562N 855787900 0001354055 0001354052 11.130.432 0001354091 STB9039LC 25-0072 STR79033 AZJ3123 8643 254007B UD11882(LETRIKA)S 255177 A0011516001 IS0612 CST10166ES 986017310 A0011511301 21519501 0001362018 0001362017 1354055 1354052 STB5039MN F139900060011 8757 260-62105 1354091

Video/Publications

IS0612 AZJ3192 72735941 11.130.612 MS313 5840067 58400670 0001354091 0001362017 0001362018 0001362040 0001366004 07664 11.130.432 112039 16562N 17112N 254007 254007B 260-62105 520.003.092 58400450 6005706625 63217158 720534 72735818 8059 8643 8757 AZJ3123 CST10166AS IS0432 LETIS0432 MAHMS190 MS 190 MSN232 MT71GB SG0590 STB2039 STB2039LC STB2039TJ STB5039LC STB5039MN STB9039LC STB9039UL STG2039BW STR22114 TS-6012 UD11882(LETRIKA)S 220268 220912
