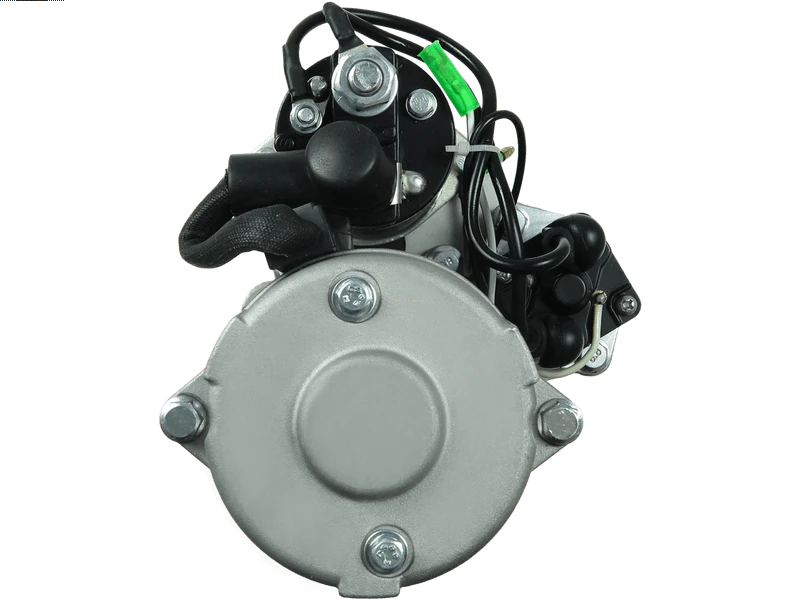

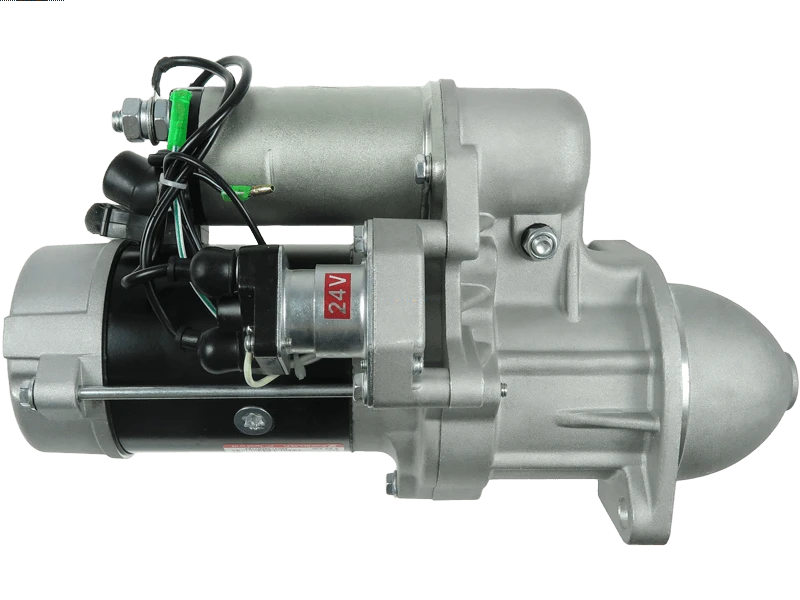

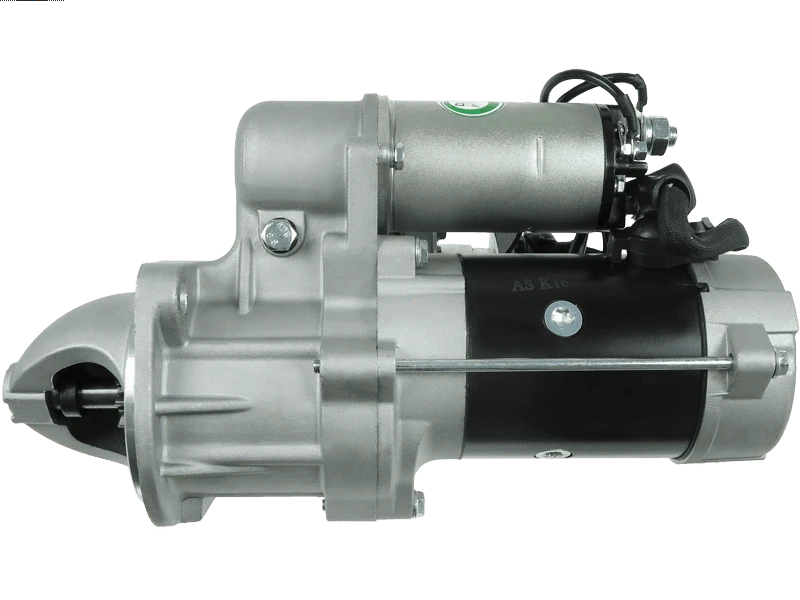

S9190 - Brand new AS-PL Starter motor

Specifications

Kilowatt	4.5 kW
Length (L.1)	335 mm
Mount Hole Center - Center (O.1)	120 mm
Mount Hole Diameter (C.1)	12.5 mm
Mount Hole Diameter (C.2)	12.5 mm
No./Mount holes	2 qty
No./Mount holes with thread	0 qty
No./Teeth	9 qty
Pinion at Rest (B)	17.5 mm
Rotation	CW
Spigot Diameter (A)	95 mm
Unit Type	NIKKO
Voltage	24 V

Vehicle Applications

Make	Model	Type	Year
ISUZU	Engine	[4BD1T]	01.1990-
JOHN DEERE	135C RTS
NEW HOLLAND	E130		01.2006-
NEW HOLLAND	E200SR

Reference Information

LRS01905 335860 91-28-4026 5811000131 0-23000-2100 0-23000-2540 18194N 0-23000-2101 0-23000-2541 CST50606AS 0-23000-2102 0-23000-2542 246-25235E CST50606ES TT16052 0-23000-2103 714-35900 8970298635 UD11091S 8970298634 8970298637 8970298636 S9190 CST50606 20446606BN CST50606RS MAV526060 20446606OE 894171-7720 8941717700 6050606 111254 STR29007 8971298636 0-23000-1260 STR29002 8970298631 8970298630 LRS1905 8970298633 8970298632 244-45201E 5150160 8944545590 CST50606GS 0-23000-1310 0-23000-2201 45-2214 CST50606OS 8970789261 8944545591 8970789264 8970789263 8941717720
