Associated Numbers
0-24000-0030 0-24000-0040 185-24001 6008633110 6008633210 941.526.112 S-80511 STR75225 UD11102SSpecifications
Kilowatt | 3 kW |
Length (L.1) | 295 mm |
Mount Hole Center - Center (O.1) | 120 mm |
Mount Hole Diameter (C.1) | 13 mm |
Mount Hole Diameter (C.2) | 13 mm |
No./Mount holes | 2 qty |
No./Mount holes with thread | 0 qty |

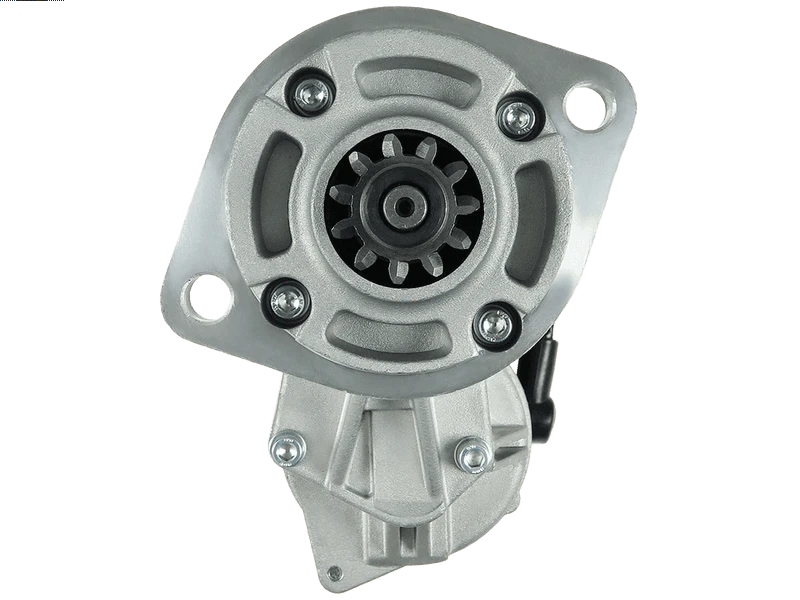

No./Teeth | 11 qty |
No./Teeth (Replaces) | 11 qty |
Pinion at Rest (B) | 20 mm |
Rotation | CW |
Spigot Diameter (A) | 95 mm |
Unit Type | NIKKO |
Voltage | 24 V |
Vehicle Applications
Make | Model | Type | Year |
---|---|---|---|
KOMATSU | PC128US-2 3.3 | [SAA4D95LE] | 01.2006-12.2008 |
KOMATSU | PC128US-2 3.9 | [SAA4D102E] | 01.1999-12.2005 |
KOMATSU | PC130-7 | [SAA4D95LE-5] | 01.2006-12.2012 |
KOMATSU | PC130-7 3.3 | [SAA4D95LE] | 01.2004-12.2012 |
KOMATSU | PC130-7K | [S4D102E] | 01.2005-12.2012 |
KOMATSU | PC130-7K 3.3 | [SAA4D95LE] | 01.2004-12.2012 |
KOMATSU | PC130-8 | [SAA4D95LE-5] | 01.2006-12.2012 |
KOMATSU | PC138 | [SAA4D95LE-3] | 01.2004-12.2006 |
KOMATSU | PC138US-2 | [SAA4D95LE-3] | 01.2004-12.2006 |
KOMATSU | PC138US-2 3.3 | [SAA4D95LE] | 01.2006-12.2008 |
KOMATSU | PC138US-6 | [SAA4D95LE-3] | 01.2006-12.2012 |
KOMATSU | PC138USLC-2 | [SAA4D95LE] | 01.2004-12.2007 |
KOMATSU | PC60-7 | [4D102E] | 01.2002-12.2006 |
KOMATSU | PC60-7 3.3 | [4D95L] | 01.1995-12.2011 |
KOMATSU | PC60EN-7 3.3 | [4D95LE] | 01.2000-12.2010 |
KOMATSU | PC70-7 3.3 | [4D95L] | 01.1997-12.2004 |
KOMATSU | PC75UU-3 3.3 | [4D95L] | 01.1997-12.2006 |
KOMATSU | PC78 | [S4D95LE-3] | 01.2001-12.2009 |
KOMATSU | PC78MR | [S4D95LE-3] | 01.2004-12.2009 |
KOMATSU | PC78MR-6 | [S4D95LE-3] | 01.2004-12.2009 |
KOMATSU | PC78MR-6 3.3 | [S4D95LE] | 01.2003-12.2010 |
KOMATSU | PC78US-5 3.3 | [4D95LE] | 01.1995-12.2003 |
KOMATSU | PC78US-6 | [S4D95LE-3] | 01.2001-12.2009 |
KOMATSU | PC78US-6 3.3 | [4D95L] | 01.2002-12.2009 |
KOMATSU | PC78US-6 3.3 | [S4D95LE] | 01.2002-12.2009 |
KOMATSU | PC78UU | [S4D95LE-3] | 01.2004-12.2009 |
KOMATSU | PC78UU-6 3.3 | [4D95LE] | 01.2002-12.2011 |
KOMATSU | PC78UU-6 3.3 | [S4D95LE] | 01.2002-12.2011 |
KOMATSU | PC88MR | [SAA4D95LE-5] | 01.2009-12.2012 |
KOMATSU | PC88MR-6 3.3 | [S4D95LE] | 01.2003-12.2010 |
KOMATSU | PW98MR-6 3.3 | [S4D95LE] | 01.2003-12.2010 |
KOMATSU | WA80-3 3.3 | [S4D95LE] | 01.2004-12.2006 |
Reference Information
941.526.112.050 254909 0-24000-0030 19942N 115954 336502 6050623.1 941.526.112.710 CGB-23116 600-863-3211 MAV526230 88215029 600-863-3110 185-24019 600-863-3210 220629 0-24000-0041 STK4209 0-24000-0040 941.526.112.140 190-25170 STR8857 91-28-4052 CST50623GS 20446326OE S-80511 R6008633210 STR75225 UD11102S 600-863-3220Video/Publications
0-24000-0030 0-24000-0040 0-24000-0041 185-24001 50825 6008633110 6008633210 6008633211 781310 91-28-4052 941.526.112 R6008633210 S-80511 STR75225 UD11102SAdd Your Number
