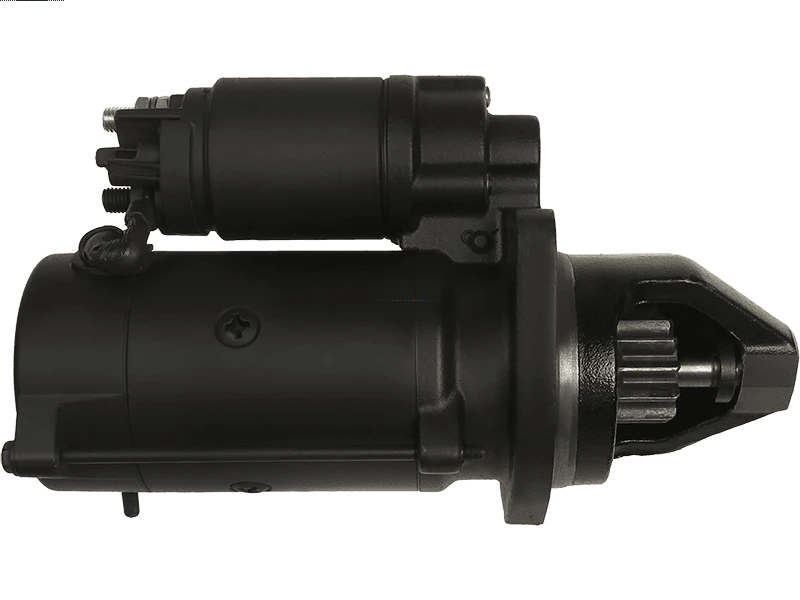

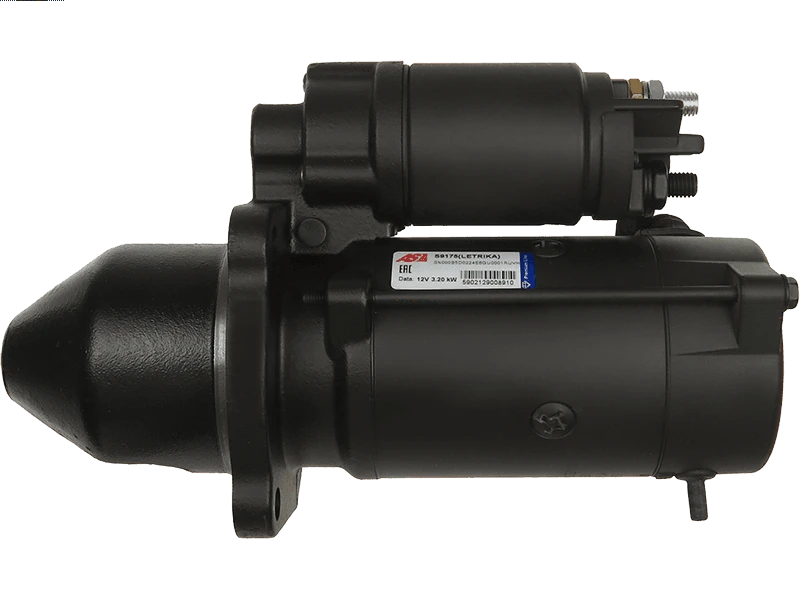

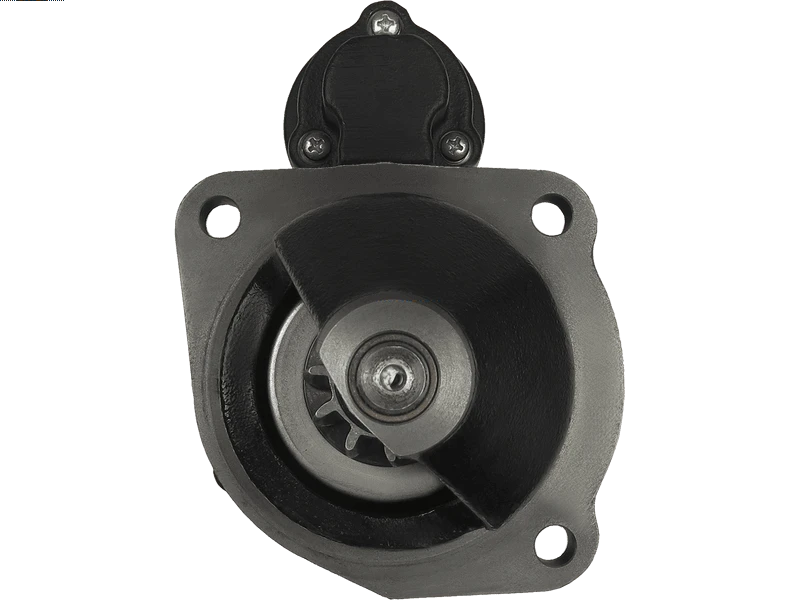

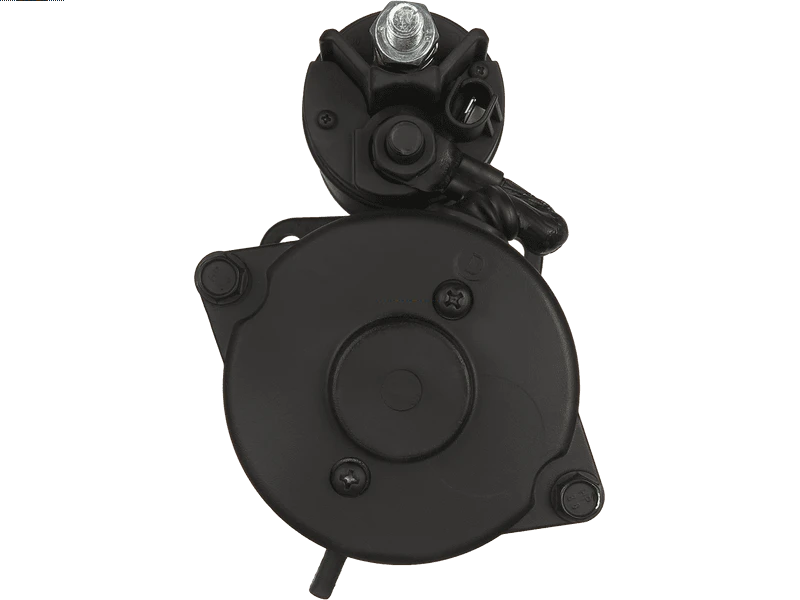

S9175(LETRIKA) - Brand new OEM ISKRA / LETRIKA Starter motor

Specifications

Kilowatt	3.2 kW
Length (L.1)	287 mm
Mount Hole Center - Center (O.1)	90 mm
Mount Hole Center - Center (O.2)	127 mm
Mount Hole Center - Center (O.3)	90 mm
Mount Hole Diameter (C.1)	11 mm
Mount Hole Diameter (C.2)	11 mm
Mount Hole Diameter (C.3)	11 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	11 qty
No./Teeth (Replaces)	10.11 qty
Pinion at Rest (B)	48 mm
Rotation	CW
Spigot Diameter (A)	89 mm
Unit Type	ISKRA / LETRIKA
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
CASE	110 4.4		01.1997-12.2003
CASE	68 3.3		01.1998-12.2004
CASE	75 3.3		01.1998-12.2004
CASE	80 PRO		10.2007-
CASE	86		01.1999-01.2004
CRYSTAL TRACTOR	ORION 13
MASSEY FERGUSON	MF 5300
VALTRA	1180 S
VALTRA	A650 3.3		01.2010-
VALTRA	A650 3.3
VALTRA	A650 F 3.3		01.2010-
VALTRA	A72 3.3	[33DTA]
VALTRA	A750 3.3		06.2009-
VALTRA	A750 3.3
VALTRA	A750F 3.3		06.2009-
VALTRA	A75 4WD 3.3	[33DTA]
VALTRA	A75n/A75L 3.3	[33DT]
VALTRA	A83 3.3	[33CTA]
VALTRA	A850 3.3		05.2009-
VALTRA	A850 3.3
VALTRA	A850 F 3.3		06.2009-
VALTRA	A93 3.3	[33CTA]
VALTRA	A950 4.4		03.2009-
VALTRA	A950 4.4
VALTRA	A950 F 3.3
VALTRA	A95N 4.4	[33DTA]
ZETOR	3320 2.6	[Z5201]	01.1992-
ZETOR	3511 2.7	[Z5201]	01.1994-
ZETOR	3513	[Z3001]
ZETOR	3520. 3540	[7201]	01.1995-
ZETOR	4320 3.9	[Z6201]	01.1992-
ZETOR	4320 3.9	[Z6202]
ZETOR	4341 3.9	[6202]	01.1997-
ZETOR	4712 2.5	[Z4701]	01.1974-12.1977
ZETOR	4718 2.5	[Z4701]	01.1974-12.1977
ZETOR	4911 2.6	[Z4901]	01.1976-12.1980
ZETOR	5011 2.6	[Z5001]	01.1980-12.1984
ZETOR	5211 2.6	[Z5001]	01.1984-12.1990
ZETOR	5213
ZETOR	5243
ZETOR	5245
ZETOR	5320.534 3.5	[Z7201]	01.1992-
ZETOR	5321 3.5	[7202]	01.1997-
ZETOR	5511.5545	[Z5501]
ZETOR	5516	[Z5501]
ZETOR	5611.5645	[Z5501]
ZETOR	5647	[Z5501]
ZETOR	5711.5718 3.1	[Z5501]	01.1974-12.1977
ZETOR	5745.5748	[Z5501]
ZETOR	5911.5945 3.4	[Z5901]	01.1978-12.1980
ZETOR	6011.6045 3.4	[Z6001]	01.1980-12.1984
ZETOR	6211 3.4	[Z6201]	01.1984-12.1990
ZETOR	6212.6245 3.4	[Z6201]	01.2984-12.1990
ZETOR	6320.634 3.9	[Z7701]	01.1992-
ZETOR	6321.6341 3.9	[Z7701]	01.1977-
ZETOR	6511.6518
ZETOR	6522
ZETOR	6711.6718 3.4	[Z6701]	01.1974-12.1977
ZETOR	6745.6748 3.4	[Z6701]	01.1974-12.1977
ZETOR	6911 3.4	[Z6901/]	01.1978-12.1980
ZETOR	6918.6945 3.4	[Z6901/]	01.1978-12.1980
ZETOR	7011.7045 3.4	[Z7001/]	01.1980-12.1984
ZETOR	7211.7245 3.5	[Z7201]	01.1984-12.1990
ZETOR	7321.7341 3.9	[Z7302]	01.1997-
ZETOR	7340 3.9	[Z7301]	01.1992-
ZETOR	7520 4.1	[7801/]	01.1991-
ZETOR	7520.754
ZETOR	7711.7745 3.9	[Z7701]	01.1986-12.1990

Reference Information

STR79002 836873290 6021143 UD11907(LETRIKA)S 11.132.101 83646400 STR7858 72735863 LETIS1303 MS235 TS-6268 20419341OE V836673353 235 30528N 836673289 6021143.1 MS AZE4230 VPF7264 836667365 CST21143GS 836867365 836673353 CST21143AS IS1303 STR7882 20419341BN STR79003

Video/Publications

11.132.101 72735863 83646400 836673289 836673353 AZE4230 IS1303 LETIS1303 MS 235 MS235 TS-6268 UD11907(LETRIKA)S V836673353 VPF7264
