Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
NIKKO
Price:
NZ$ 386.09 including GST
NZ$ 335.73 excluding GST
or four payments of $96.52
with
Learn More
each
S9170
No stock in NZ currently
No stock in NZ currently
Associated Numbers

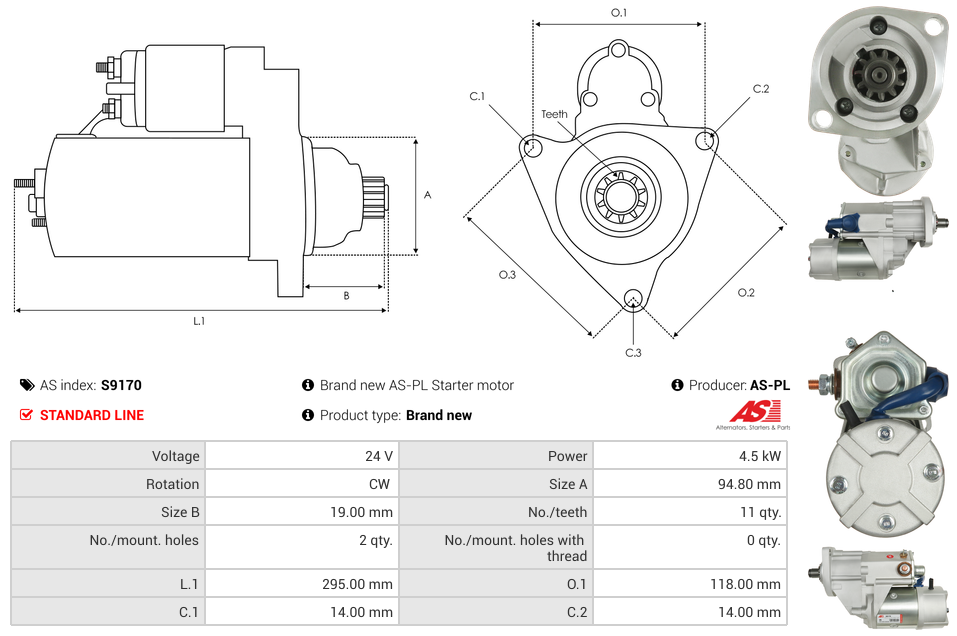

0230001700 8944497250 8944545590 UD11139S UNIT BOM 185-260ASpecifications
| Kilowatt | 4.5 kW |
| Length (L.1) | 295 mm |
| Mount Hole Center - Center (O.1) | 118 mm |
| Mount Hole Diameter (C.1) | 14 mm |
| Mount Hole Diameter (C.2) | 14 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 19 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 94.80 mm |
| Unit Type | NIKKO |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| ISUZU | Engine | [4BD1] | |
| ISUZU | Engine | [4BD1M] |
Reference Information
| 0230001700 | NIKKO |
| 8944497250 | ISUZU |
| 8944545590 | ISUZU |
| MAV526060 | SIOM |
| UD11139S | AS-PL |
| UNIT BOM 185-260A | WAI / TRANSPO |
