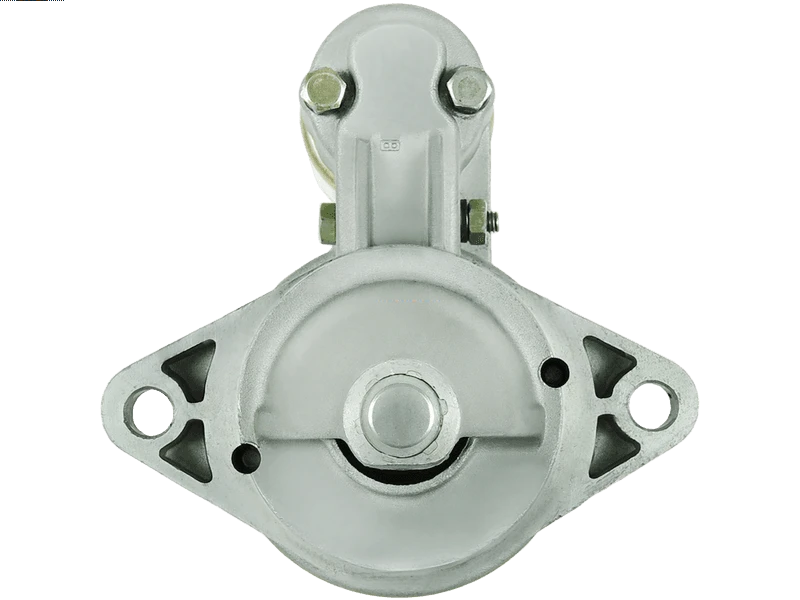

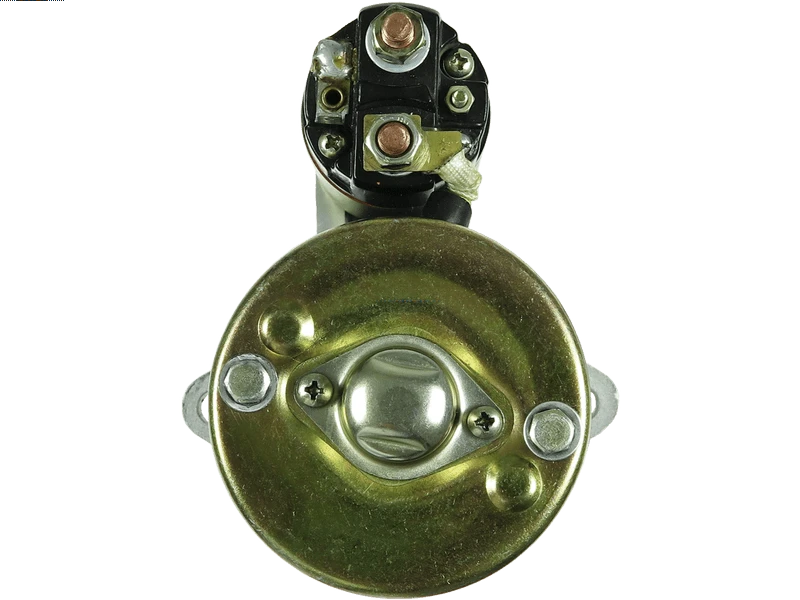

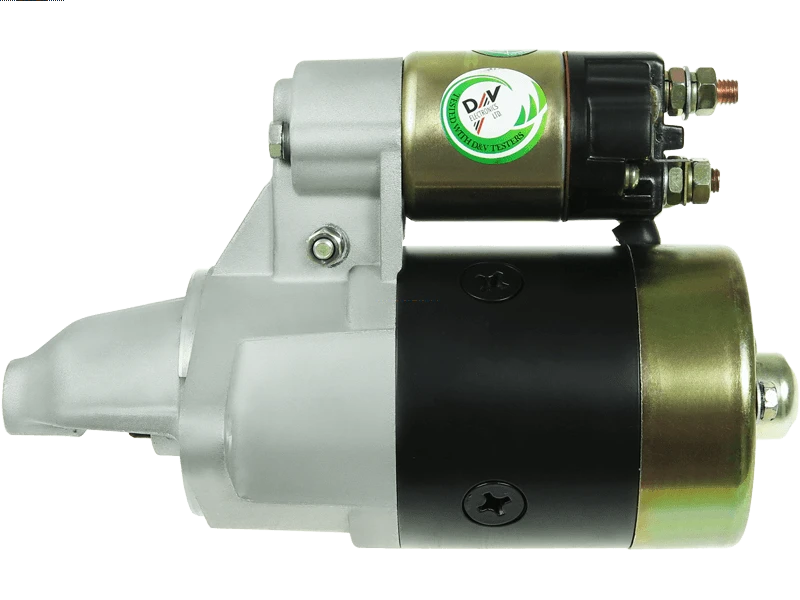

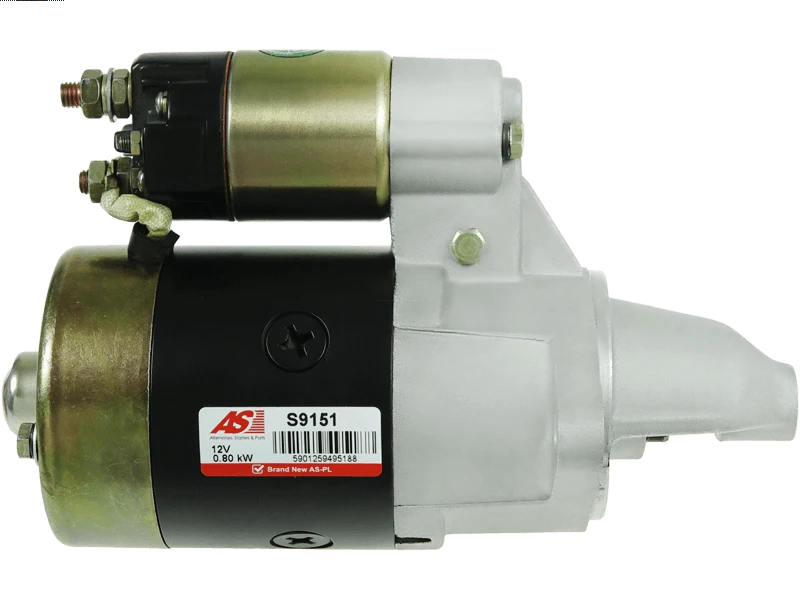

S9151 - Brand new AS-PL Starter motor

Specifications

Kilowatt	0.8 kW
Length (L.1)	235 mm
Mount Hole Center - Center (O.1)	115 mm
Mount Hole Diameter (C.1)	10.5 mm
Mount Hole Diameter (C.2)	10.5 mm
No./Mount holes	2 qty
No./Mount holes with thread	0 qty
No./Teeth	8 qty
Pinion at Rest (B)	25 mm
Rotation	ACW
Spigot Diameter (A)	74 mm
Unit Type	DAIHATSU
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
DAIHATSU	Charade 1.0	[CB23]	01.1987-12.1993
DAIHATSU	Charade 1.0	[CB35]	01.1983-12.1987
DAIHATSU	Charade 1.0 GTi	[CB]	01.1987-12.1992
DAIHATSU	Charade 1.0 TS	[CB]	01.1983-12.1987
DAIHATSU	Charade 1.0 Turbo	[CB60]	01.1985-12.1987
DAIHATSU	Charade 1.0 Turbo	[CB61]	01.1987-12.1990

Reference Information

22.5376 UD02216S 20376 128000-5650 9644 28100-87722 2810087214 28100-87727 28100-87708 LRS720 2330087709 CST40115OS AES7120 2810048705 MAV5965 25-1040 028000-7200 28100-48708 CST40115GS 128000-4532 2810087700 CST40115ES SS307 128000-4531 28100-87734 CST40115AS 9.43241E+11 128000-4530 CST40115 S9151 20432511BN 6040115 028000-9490 110.004.082 CST40115RS STR6212 2810087725 LRS00720 455598 2810087728

Video/Publications

S9151 028000-7200 028000-9490 110.004.082 128000-4530 128000-4531 128000-4532 128000-5650 20376 20432511BN 22.5376 25-1040 28100-48708 28100-87708 28100-87722 28100-87727 28100-87734 455598 6040115 943241100010 9644 AES7120 CST40115 CST40115AS CST40115ES CST40115GS CST40115OS CST40115RS LRS00720 LRS720 MAV5965 SS307 UD02216S
