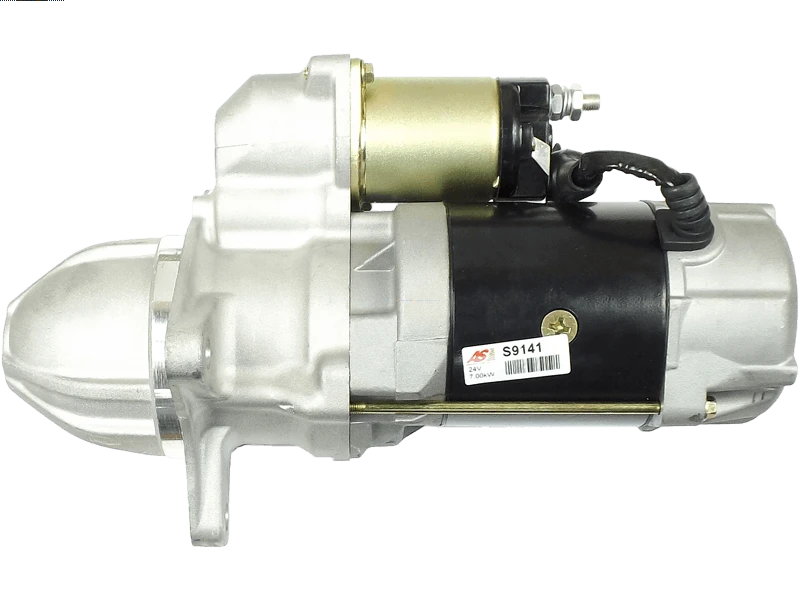

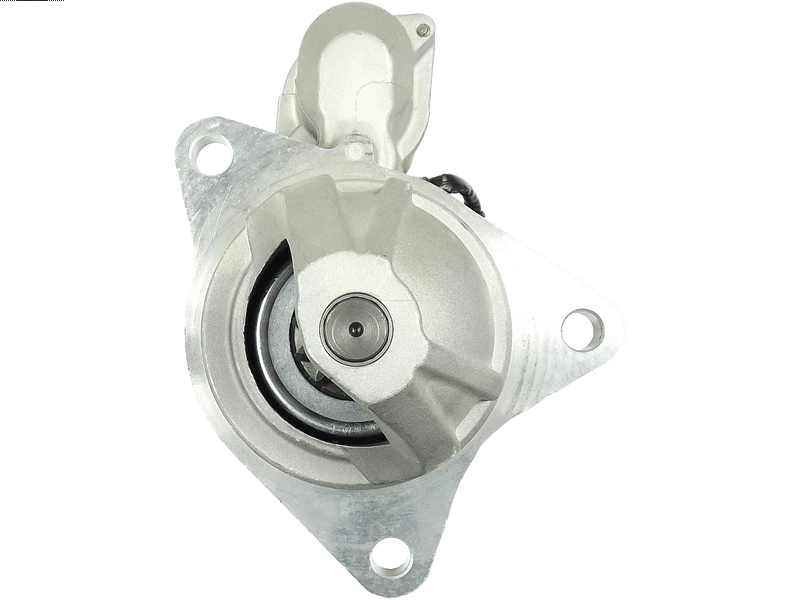

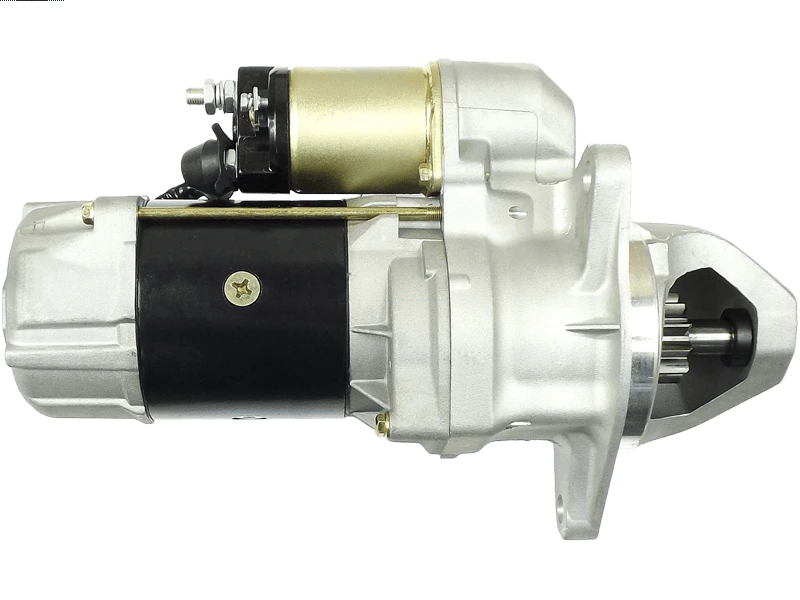

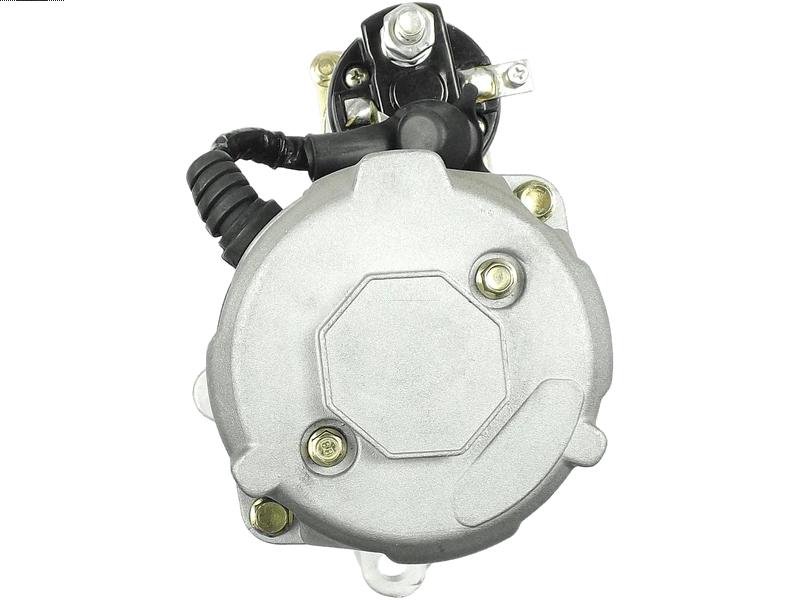

S9141 - Brand new AS-PL Starter motor

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
SAWAFUJI
Price:
NZ$ 700.29 including GST

NZ$ 608.95 excluding GST
each
S9141
No stock in NZ
Item available to backorder, submit your order. Aprox 7-14 day delay - $40 Air freight charge additional
Purchase Qty:

03507020020 03507020021 03507020022 03507020023 03507020024 03507020025 03507020180 03507020220 03507020226 03507020231 03507020290 03507020294 03507020330 03507020339 254924 2810001645A 281001490A 281001491A 281001492 281001492A 281001492B 281001493 281001644 281001790 281001790A 281001791 281001942 UD02170S
Kilowatt7 kW
Length (L.1)405 mm
Mount Hole Center - Center (O.1)119 mm
Mount Hole Center - Center (O.2)178 mm
Mount Hole Center - Center (O.3)165 mm
Mount Hole Diameter (C.1)15.5 mm
Mount Hole Diameter (C.2)15.5 mm
Mount Hole Diameter (C.3)15.5 mm
No./Mount holes3 qty
No./Mount holes with thread0 qty
No./Teeth11 qty
No./Teeth (Replaces)11 qty
Pinion at Rest (B)42 mm
RotationCW
Spigot Diameter (A)122 mm
Unit TypeSAWAFUJI
Voltage24 V
Make Model Type Year
HINO EK100
HINO EL100
HINO Engine [K13C]
HINO Engine [K13D]
281001644 281001942 3507020226 STR9856 3507020022 3507020220 3507020021 3507020020 281001491A 281001790A 3507020025 3507020024 3507020023 254924 3507020180 3507020339 3507020231 3507020330 UD02170S 281001492A 281001492 3507020294 281001492B 281001490A 2810001645A 281001493 281001790 281001791 3507020290
03507020020 03507020021 03507020022 03507020023 03507020024 03507020025 03507020180 03507020220 03507020226 03507020231 03507020290 03507020294 03507020330 03507020339 254924 2810001645A 281001490A 281001491A 281001492 281001492A 281001492B 281001493 281001644 281001790 281001790A 281001791 281001942 UD02170S
