S9140 - Brand new AS-PL Starter motor

We will be closed Wednesday 29 May, Thursday 30 May, Friday 31 May & Monday 3 June (Kings Birthday) - reopening Tuesday 4 June.  Any orders placed while we are closed will be shipped on Tuesday 4 June - Thanks

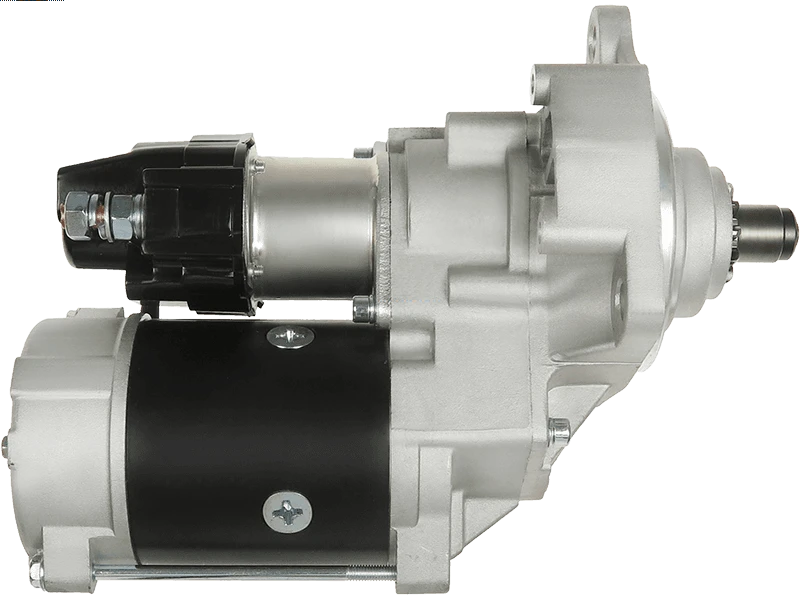

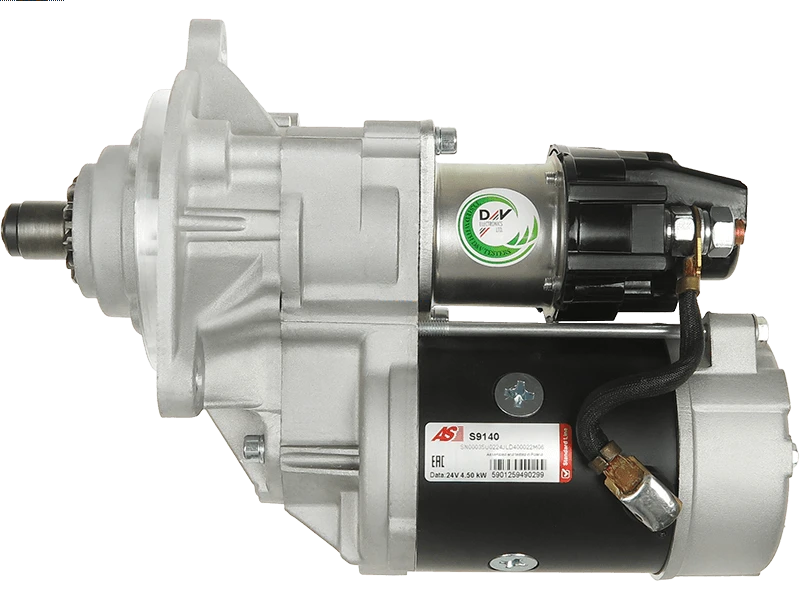

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
NIKKO
Price:
NZ$ 820.97 including GST

NZ$ 713.89 excluding GST
each
S9140
No stock in NZ
Item available to backorder, submit your order. Aprox 7-14 day delay - $40 Air freight charge additional
Purchase Qty:

0-24000-3150 0-24000-3151 114267 1811003380 1811003381 185-24011 19868 19868N 20446226OE 246-25227 6050622 91-28-4069 CST50622GS S9140 UD02164S
Kilowatt4.5 kW
Length (L.1)294 mm
Mount Hole Center - Center (O.1)111 mm
Mount Hole Center - Center (O.2)136 mm
Mount Hole Center - Center (O.3)111 mm
Mount Hole Diameter (C.1)13.5 mm
Mount Hole Diameter (C.2)13.5 mm
Mount Hole Diameter (C.3)13.5 mm
No./Mount holes3 qty
No./Mount holes with thread0 qty
No./Teeth11 qty
No./Teeth (Replaces)11 qty
Pinion at Rest (B)41 mm
RotationCW
Spigot Diameter (A)105 mm
Unit TypeNIKKO
Voltage24 V
Make Model Type Year
JOHN DEERE 225C [6BG1T] 01.1999-
0-24000-3150 0-24000-3151 114267 1811003380 1811003381 185-24011 19868 19868N 20446226OE 246-25227 6050622 91-28-4069 CST50622GS S9140 UD02164S
