S9098(LETRIKA) - Brand new OEM ISKRA / LETRIKA Starter motor

Name: Brand new OEM ISKRA LETRIKA Starter motor
Brand: Letrika
SKU: S9098(LETRIKA)
Price: 1169.81 NZD
Availability: InStock

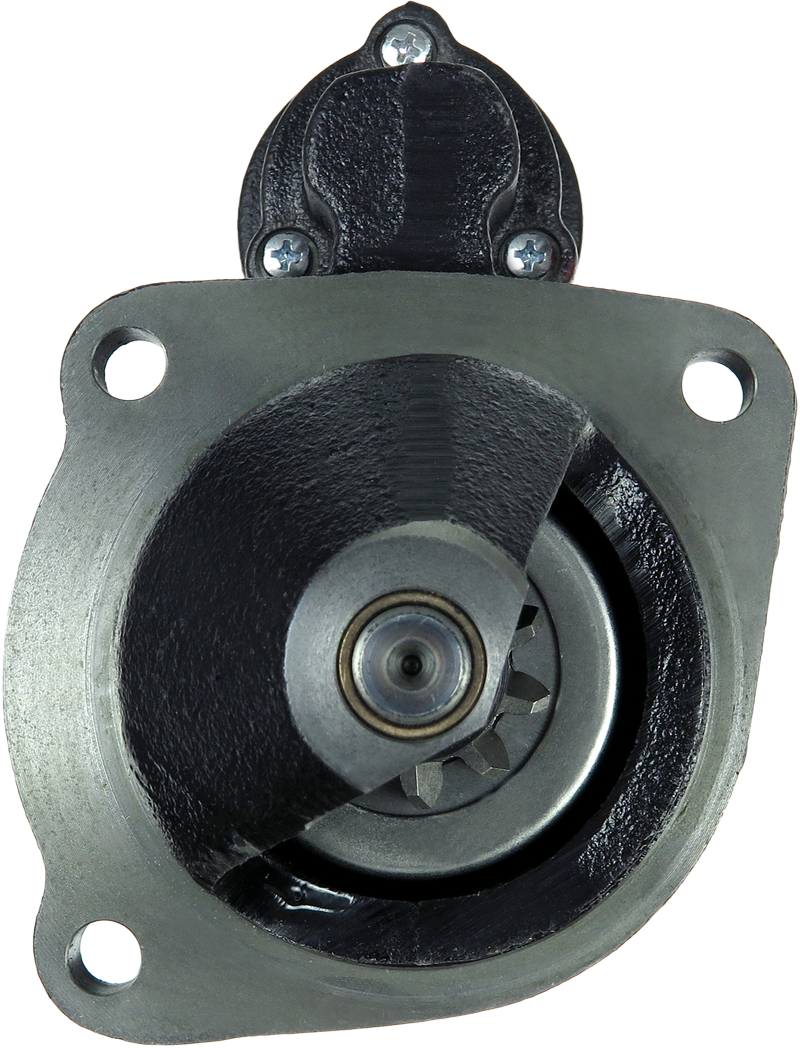

Brand new OEM ISKRA / LETRIKA Starter motor

PREMIUM LINE

Manufacturer:

Letrika

Replacement For:

ISKRA / LETRIKA

Price:

NZ$ 1,169.81 including GST

NZ$ 1,017.22 excluding GST

UOM:

each

Alternative Item:

S9098

Product Code:

S9098(LETRIKA)

Quantity In Stock Nationally:

No stock in NZ

Availability:

Item available to backorder, submit your order. Aprox 7-14 day delay - $40 Air freight charge additional

Associated Numbers
Specifications
Vehicle Applications
Reference Information
Video/Publications
Add Your Number

225-3149 254193 254193M 2873K405 2873K624 2873K625 2873K626 2873K634 312-7540 329-0290 3586849 365-3422 3873K627 63280041 714/40159 714/40159R 714/40231 714/40531 714/40536 7169477 860715 IS1201 MSN 8041

0740000000 Magneti Marelli
102259 PIC
105460 FARC
11022680 EuroTec
11090183 EuroTec
11131181 Mahle
11131605 Mahle
11131761 Mahle show
11131781 Mahle show
11131793 Mahle
11131942 Mahle
11131947 Mahle
11131956 Mahle
11131989 Mahle show
11132036 Mahle
11132063 Mahle
113655 Cargo
114388 Cargo
116308 Cargo
18940 Lester
19083018 Delco
2253149 Caterpillar
230694 Cargo
254097 Elstock
254149 Elstock
26194600 Agco
2872K405 Perkins
2873B029 Perkins
2873B031 Perkins
2873B072 Perkins
2873K405 Perkins show
2873K624 Perkins
2873K625 Perkins
2873K634 Perkins
2873K672 Perkins
29194800 Agco
3127540 Caterpillar
3181C057 Perkins
3290290 Caterpillar
35263300 Prestolite
3586849 Perkins
3653422 Caterpillar
3873K627 Perkins
4227054M91 Agco
4280001290 Denso
600232102 DRI
600236102 DRI
6021108 Sando
605002 Cosmos
63280041 Magneti Marelli show
63280041010 Magneti Marelli
68296 Sparex
700504103 PSH
71440159R JCB
71440231 JCB
71440531 JCB
71440536 JCB
7169477 Bobcat
72736027 Mahle
7700036535 Renault
860715 Prestolite
8818300 Friesen
8818300F Friesen
91178869 Wilson
91192515 Wilson
913954 EDR
9HM12008A6A Other
A78430 ATL
AEX1050 Auto Electro
AZE4150 Mahle
AZE4170 Mahle
AZE4173 Mahle show
AZE4175 Mahle
AZE4197 Mahle
AZE4201 Mahle
AZE4204 Mahle
AZE4215 Mahle
AZE4220 Mahle
BSO7311 Bowers
DEM101201 ADI
DEM708041 ADI
DFJ020263 DFJ
DFJ020491 DFJ
DRS3954 Remy
DRS3954N Remy
DSN043 Denso
E730163011 Kubota
IS1201 Mahle show
IS1281 Mahle
IS1301 Mahle
LES0271 Lucas
LRS02425 Lucas
LRS2425 Lucas
LRS2477 Lucas
MS399 Mahle show
MSN8041 Magneti Marelli
PEST0002 Universal Components
RNL2873K405 RNL
RNLAZE4150 RNL
S512136 BTS Turbo
SG0133 Ghibaudi
SG9079 Ghibaudi
SM328 SAS
STR7974sa Electrolog
STR9009sa Electrolog
STR9771sa Electrolog
T410865 Perkins
T412689 Perkins
TM000A23301 Mando
TS6209 Dixie

Kilowatt	3.2 kW
Length (L.1)	296 mm
Mount Hole Center - Center (O.1)	127 mm
Mount Hole Center - Center (O.2)	90 mm
Mount Hole Center - Center (O.3)	90 mm
Mount Hole Diameter (C.1)	11 mm
Mount Hole Diameter (C.2)	11 mm
Mount Hole Diameter (C.3)	11 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	10 qty
No./Teeth (Replaces)	10 qty
Pinion at Rest (B)	29 mm
Rotation	CW
Spigot Diameter (A)	89 mm
Unit Type	ISKRA / LETRIKA
Voltage	12 V

Make	Model	Type	Year
JCB	8	[Perkins 6-354]	01.1969-
JCB	8	[Perkins6-354]	01.1969-
PERKINS	Various Models

LETIS1201 700.504.103.265 STR60623 CST30170AS TS-6243 T410865 CGB-93405 700336A1 714/40531 63280041 DRS3954N 71440159 714/40536 18940 700.504.103.311 71440536 E730163011 254193M DRS3954 IS1201 11.131.761 700.504.103.320 STR7974 3873K625 2873K624 MS399 M1T84181 254193 2873K626 2873K625 20404071BN 296194600 3873K627 8818300 20419801OE 700.504.103.208 714/40159 4227054M91 LRS2477 329-0290 PRSL281 MSN STRS023 AZE4197 700.504.103.050 8041 365-3422 11.131.989 88214602 AZE4220 MAV231080 6030170 399 LRS02477 2873K405 3542185M93 91-19-2515 MSN8041 71440231 220702 3586849 312-7540 AZE4215 6021108.1 MS AZE4173 AZE4175 11.132.036 2873K634 AZE4170 11.131.605 714/40159R 114388 MAV321700 AZE4204 331834 AZE4201 3821818M91 CST21108GS 116308 18940N-IK 225-3149 3821818M93 STRL281 11.131.956 PRSS023 11.131.793 71440531 STR52056 700.504.103.098 714/40231 AZE4150 18940R 18940N 700.504.103.090 7169477 11.131.947 958579 11.131.942 25-4149 860715 71440159R 11.131.781
