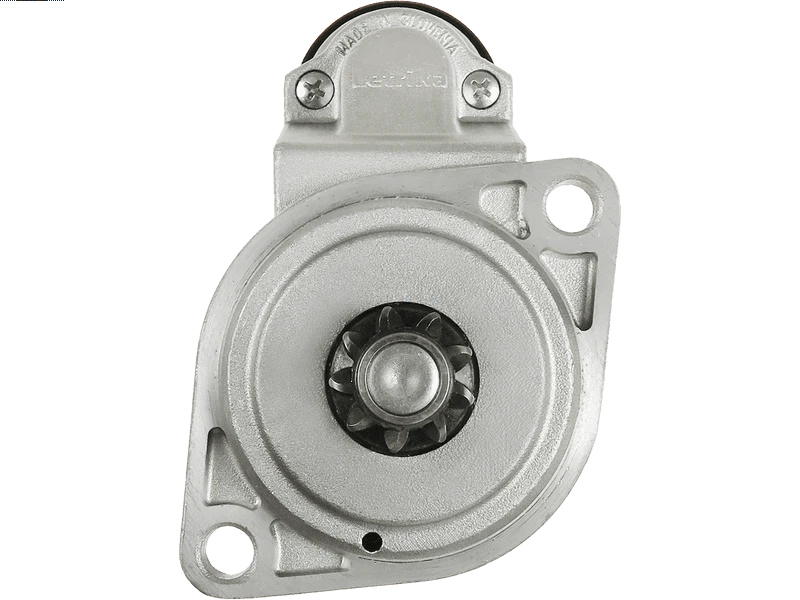

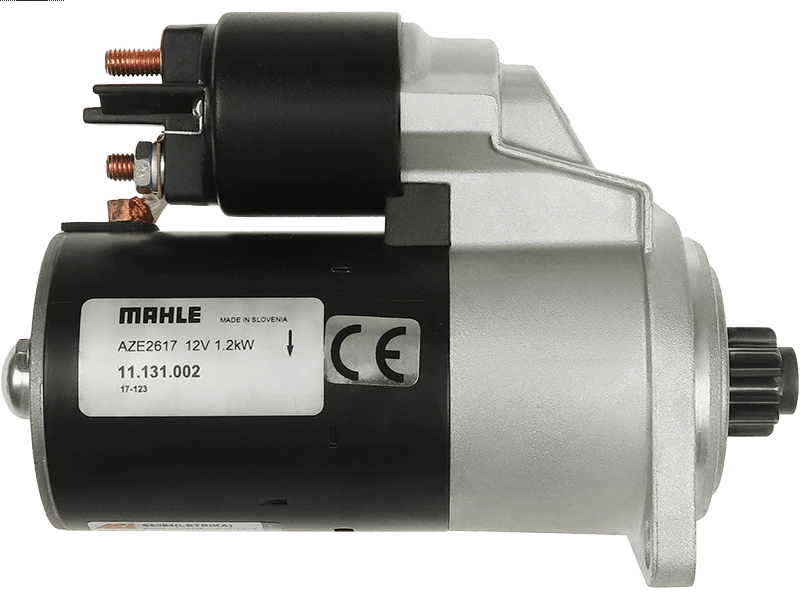

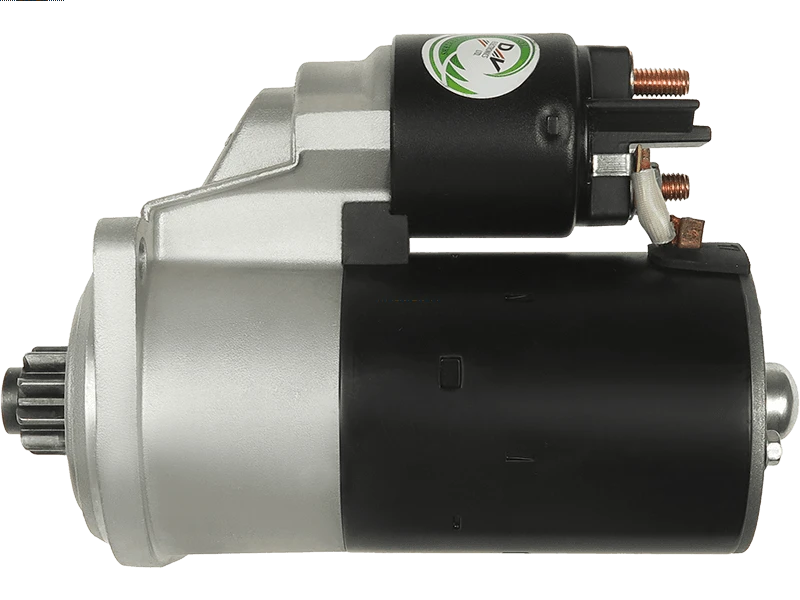

S9094(LETRIKA) - Brand new OEM ISKRA / LETRIKA Starter motor

Specifications

Kilowatt	1.2 kW
Length (L.1)	209 mm
Mount Hole Center - Center (O.1)	105 mm
Mount Hole Diameter (C.1)	11 mm
Mount Hole Diameter (C.2)	11 mm
No./Mount holes	2 qty
No./Mount holes with thread	0 qty
No./Teeth	9 qty
No./Teeth (Replaces)	9 qty
Pinion at Rest (B)	27 mm
Rotation	ACW
Spigot Diameter (A)	76 mm
Unit Type	ISKRA / LETRIKA
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
BERTOLINI	Various Models
FERRARI	305 0.4	[6LD400]	09.1989-
FERRARI	305 0.5	[6L360]	09.1989-
FERRARI	306 0.4	[6LD400]	09.1989-
FERRARI	307 0.4	[6LD400]	10.1990-
FERRARI	72S 0.7	[7LD665]	01.1971-
FERRARI	792 0.4	[6LD400]	09.1989-
FERRARI	794 0.4	[6LD400]	09.1989-
FERRARI	91 0.4	[6LD400]	09.1989-
FERRARI	92 0.5	[3LD350]	09.1989-
GOLDONI	Various Models
LANDBRUG	270
LANDBRUG	303
LANDBRUG	603
LANDBRUG	701
LANDBRUG	735
LANDBRUG	737
LANDBRUG	745
LOMBARDINI	Various Models	[6LD..]	01.1982-
LOMBARDINI	Various Models
LOMBARDINI	Various Models 0.5	[3LD..]	01.1982-
PIAGGIO	APE 0.4	[GL400]	06.2000-
VALPADANA	Various Models
VALPADANA	VMC 130		01.1989-
VALPADANA	VMC 150		04.1984-

Reference Information

1214002 0001107024 63221435 1107024 CGB-28110 520.502.092.210 RNL1811 331733 520.502.092.010 S12BH0065A2 220755 254567 25-1466 LRT00192 IS1015 5840142 DRS8110 112171 432681 11545 520.502.092.280 D6RA19 63221405 D6RA54 S-6537 58402460 STV3307 18473N 6010182 56342 594082 CST15284GS STRL136 11.131.002 STR50245 S-03090 254567B 260-10107 1112034 STRS550 56350 0001112034 EAA-121079 MS636 CST21134GS 11.131.757 MS359 986018110 D6RA50 STR54118 6015284.1 S12BH0065 5840246 000986018110 6010182.1 63501270 AZE2669 8046 113307 CST10182GS LRT192 20401281OE 91-20-3523 58402480 D6RA34 STB2171 58401420 GS107024-A PRSS550 20479482OE STR79106 455635 AZE2617 56328 432695 2330099B05 20419431OE 612A1700 0001214002 MAV6520 STR79105

Video/Publications

0001107024 0001112034 0001214002 0986018110 11.131.002 11.131.757 18473N 254567 254567B 58401420 58402480 63221435 63501270 AZE2617 AZE2669 GS107024-A IS1015 LRT00192 MS 359 MS 636 63221405 220755
