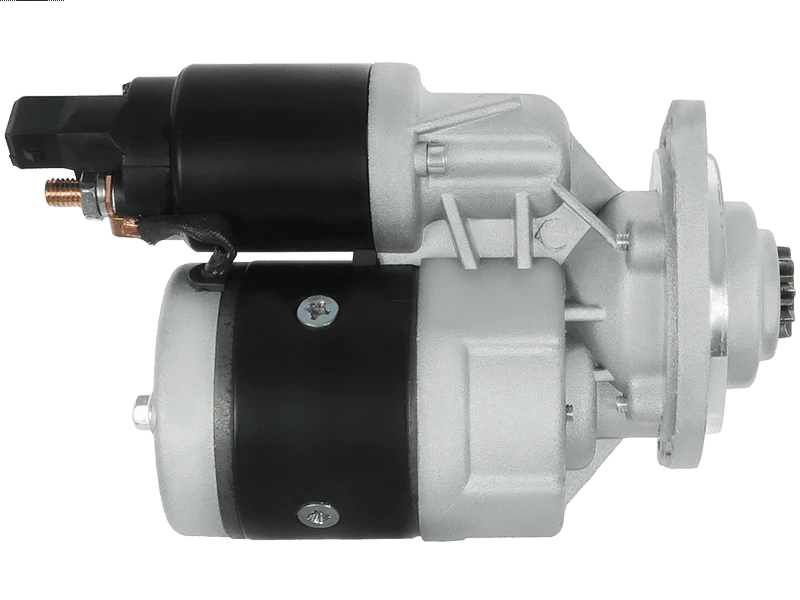

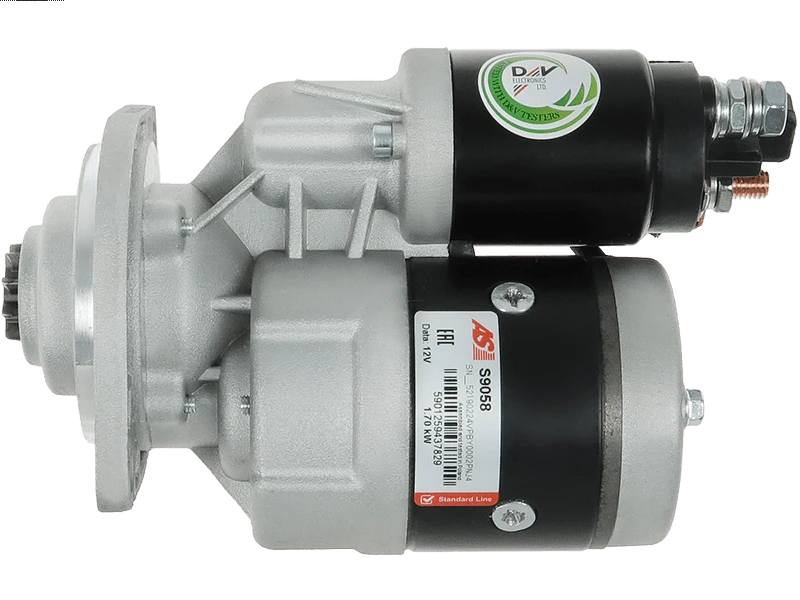

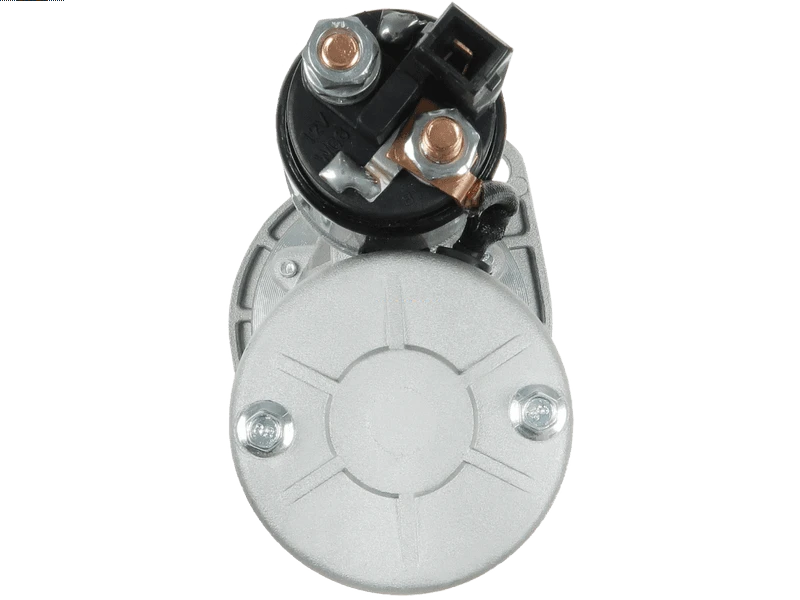

S9058 - Brand new AS-PL Starter motor

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MAGNETON
Price:
NZ$ 231.00 including GST

NZ$ 200.87 excluding GST
each
S9058
No stock in NZ
Item available to backorder, submit your order. Aprox 7-14 day delay - $40 Air freight charge additional
Purchase Qty:

0001124013 0001124014 0986015701 0986018410 101047 103743 10561 112236 20510110 20510219 25-2204 441.04009-219.6 441040092196 441040092206 458552 6U0911023 6U0911023A 6U0911023AX 6U0911023B 8018410 8EA726737306 8EA737306-001 9141399 943253156010 A18410 AES2219 B001127041 CS1047 DRS3636 LRT00219 M1204E MSR5356 S1047B S1048B STR50179
Kilowatt1.7 kW
Length (L.1)170 mm
Mount Hole Center - Center (O.1)105 mm
Mount Hole Diameter (C.1)10.5 mm
Mount Hole Diameter (C.2)10.5 mm
No./Mount holes2 qty
No./Mount holes with thread0 qty
No./Teeth9 qty
No./Teeth (Replaces)9 qty
Pinion at Rest (B)27 mm
RotationACW
Spigot Diameter (A)76 mm
Unit TypeMAGNETON
Voltage12 V
Make Model Type Year
SKODA Felicia 1.9 Diesel [AEF] 09.1988-09.1994
20401453RC 88213354 6048103 STRS012 9141399 4.4104E+11 CST10354AS S12BH0255A2 000B001127041 6010354.2 6010354.1 9.43253E+11 986018410 000986018410 458552 A18410 CST10354RS STR50179 438466 6U0911023A 6U0911023AX 8EA012526-531 B001127041 112236 440.502.092.210 440.502.092.010 LRT00219 STRX731 S1048B 440.502.092.018 EAA-121146 9.4428E+11 440.502.092.215 CS1047 DRS3636 1124014 1124013 3685 PRSS012 22.1047 31219N 6U0911023 8018410 22.1047M 20408301BN AES2219 331199 8EA737306-001 SS456 MAV123540 11802 MSR5356 LRT219 MRS18410 STB1047 101047 CST48103AS 0001124013 103743 6010354 20510219 0001124014 ANM15856X S9058 440.502.092.350 RNL1841 20401453BN 6UO911023AX 25-2204 220053 CST10354GS 20401453OE
0001124013 0001124014 0986015701 0986018410 101047 103743 10561 112236 20510110 20510219 25-2204 441.04009-219.6 441040092196 441040092206 458552 6U0911023 6U0911023A 6U0911023AX 6U0911023B 8018410 8EA726737306 8EA737306-001 9141399 943253156010 A18410 AES2219 B001127041 CS1047 DRS3636 LRT00219 M1204E MAV123540 MAV3430 MAV501000 MAV501030 MSR5356 S1047B S1048B STR50179 STRS012 220041 220053 220160
