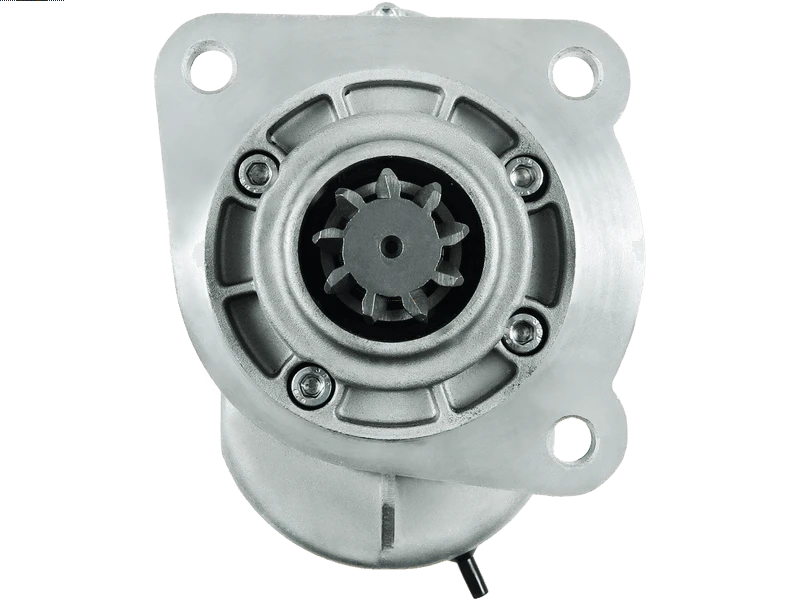

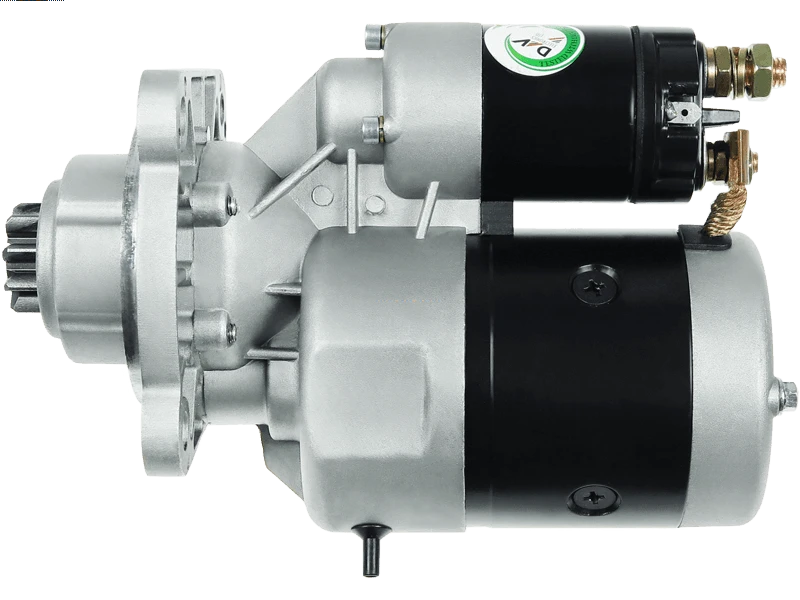

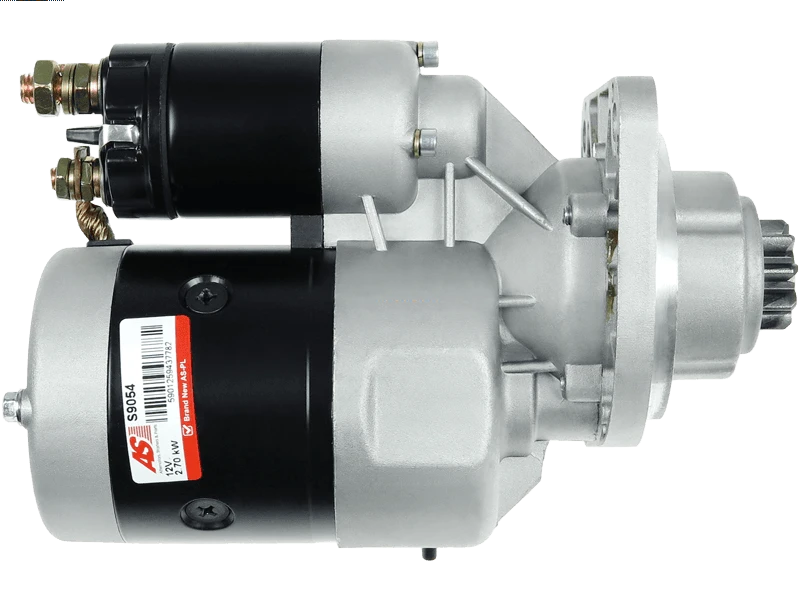

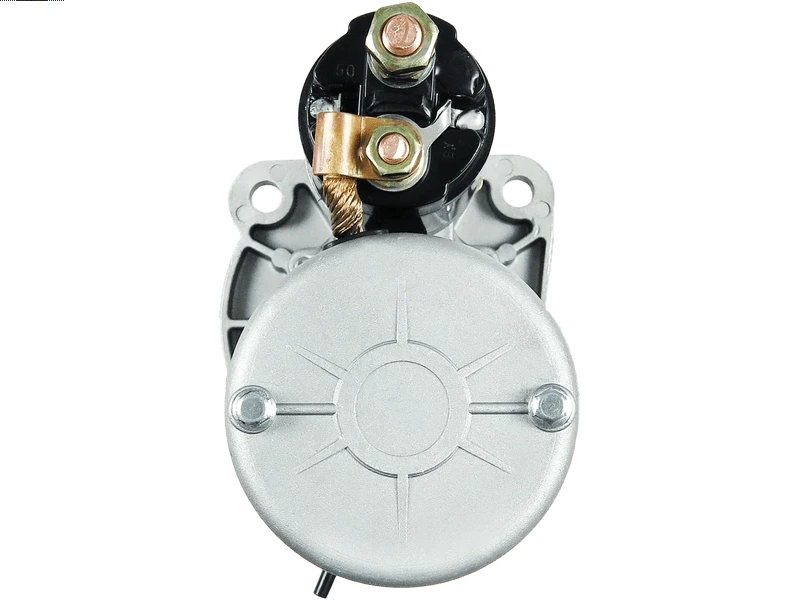

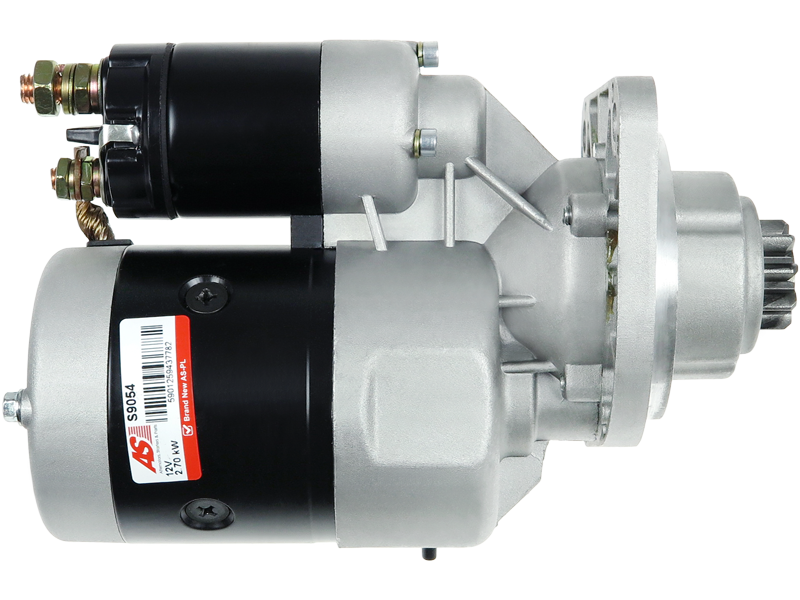

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MAGNETON
Price:
NZ$ 349.54 including GST
NZ$ 303.95 excluding GST
or four payments of $87.39
with
Learn More
UOM:
each
Product Code:
S9054
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
9142744Associated Numbers
0001359071 0001367026 0001367030 11360 12270774 2022518 20401762BN 20401762EL 20500847 254089 254089K 255701 4712894 4713805 4737758 4755112 6010267 63216802 63216833 861049 882005018 8962687 9142744 943252232 CST10267AS CST10267ES MSN220 MT66B MT66BA S9054 STR52030Specifications
| Kilowatt | 2.70 kW |
| Length (L.1) | 235 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 90 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 48.50 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | MAGNETON |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FIAT | 1000 1000S | 8065.04.200 | 01.1976-12.1979 |
| FIAT | 1000 1300 | CP3-100 | 01.1973-12.1976 |
| FIAT | 1000 1300S | CP3-100 | 01.1976-12.1979 |
| FIAT | 1000 1300S | CP3-100 | 01.1976-12.1979 |
| FIAT | 1300DT 7.4 | [CP3/100 Var.16] | 04.1973-12.1979 |
| FIAT | 1300DT 7.4 | [CP3/100Var.16] | 04.1973-12.1979 |
| FIAT | 1300DT/S DTS | ||
| FIAT | 1300S 7.4 | [CP3/100 Var.17] | 04.1976-12.1979 |
| FIAT | 1300S 7.4 | [CP3/100Var.17] | 04.1976-12.1979 |
| FIAT | 130 NC/14 7.4 | [OM-CP3/42.3000] | 09.1972-12.1979 |
| FIAT | 130 NR 7.4 | [OM-CP 3/42.300] | 09.1972-07.1984 |
| FIAT | 130 NR 7.4 | [OM-CP3/42.300] | 09.1972-07.1984 |
| FIAT | 130 NT 7.4 | [OM-CP 3/42.300] | 09.1972-07.1984 |
| FIAT | 130 NT 7.4 | [OM-CP3/42.300] | 09.1972-07.1984 |
| FIAT | 65 NC 4.6 | [OM-CO3/41?] | 09.1972-12.1979 |
| FIAT | 70 NC 4.6 | [OM-CO3/41?] | 09.1972-12.1979 |
| FIAT | 75 NC 4.6 | [OM-CO3/41?] | 09.1972-12.1979 |
| FIAT | 800 850 | C03-80 | 01.1969-12.1975 |
| FIAT | 800 850 | C03-80 | 01.1969-12.1975 |
| FIAT | 800 880 | C03-130 | 01.1978-12.1980 |
| FIAT | 800 880 | C03-130 | 01.1978-12.1980 |
| FIAT | 850 DT 5.0 | [CO3/80 Var.7] | 04.1973-12.1979 |
| FIAT | 850 DT 5.0 | [CO3/80Var.7] | 04.1973-12.1979 |
| FIAT | 880 DT 4.6 | [CO3/75] | 02.1975-12.1980 |
| FIAT-ALLIS | 4C/6/9 | ||
| IVECO | EUROCARGO I-III 75 E 14, 75 E 14 P | 8040.45.4000 | 01.1991-09.2015 |
| IVECO | EUROCARGO I-III 75 E 14, 75 E 14 P | 8040.45.4180 | 01.1991-09.2015 |
| IVECO | ZETA 109-14 | 8060.04.689 | 06.1983-12.1985 |
| IVECO | ZETA 109-14 | 8060.05.289 | 11.1985-03.1991 |
| IVECO | ZETA 109-14 H | 8060.04.689 | 06.1983-12.1985 |
| IVECO | ZETA 109-14 H | 8060.05.289 | 11.1985-03.1991 |
| IVECO | ZETA 79-13 | 8060.04.060 | 11.1979-12.1983 |
| IVECO | ZETA 79-13 | 8060.04.060 | 11.1979-12.1983 |
| IVECO | ZETA 79-13 | 8060.04.060 | 11.1979-12.1983 |
| IVECO | ZETA 79-13 | 8060.04.660 | 11.1979-12.1983 |
| IVECO | ZETA 79-13 | 8060.04.660 | 11.1979-12.1983 |
| IVECO | ZETA 79-13 | 8060.04.660 | 11.1979-12.1983 |
| IVECO | ZETA 79-14 | 8060.04.660 | 01.1983-11.1985 |
| IVECO | ZETA 79-14 | 8060.04.660 | 01.1983-11.1985 |
| IVECO | ZETA 79-14 | 8060.05.280 | 12.1985-03.1991 |
| IVECO | ZETA 79-14 | 8060.05.280 | 12.1985-03.1991 |
| IVECO | ZETA 79-14 H | 8060.04.660 | 01.1983-11.1985 |
| IVECO | ZETA 79-14 H | 8060.04.660 | 01.1983-11.1985 |
| IVECO | ZETA 79-14 H | 8060.05.280 | 12.1985-03.1991 |
| IVECO | ZETA 79-14 H | 8060.05.280 | 12.1985-03.1991 |
| IVECO | ZETA 79-14 V | 8060.04.660 | 01.1983-11.1985 |
| IVECO | ZETA 79-14 V | 8060.04.660 | 01.1983-11.1985 |
| IVECO | ZETA 79-14 V | 8060.05.280 | 12.1985-03.1991 |
| IVECO | ZETA 79-14 V | 8060.05.280 | 12.1985-03.1991 |
| IVECO | ZETA 95-14 | 8060.04.669 | 07.1983-10.1985 |
| IVECO | ZETA 95-14 H | 8060.04.669 | 07.1983-10.1985 |
| VOLVO | B 6F 5.5 | [TD60A] | 11.1978-07.1984 |
| VOLVO | B 6FA 5.5 | [TD60B] | 11.1979-12.1987 |
| VOLVO | F 609 7.0 | [D60A] | 01.1977-01.1980 |
| VOLVO | F 610 5.5 | [TD60C] | 02.1980-10.1980 |
| VOLVO | F 611 5.5 | [D60A, TD60C] | 01.1977-10.1980 |
| VOLVO | F 611 5.5 | [D60A,TD60C] | 01.1977-10.1980 |
| VOLVO | F 613 5.5 | [TD60A, TD60B] | 01.1977-10.1980 |
| VOLVO | F 613 5.5 | [TD60A,TD60B] | 01.1977-10.1980 |
| VOLVO | F 614 5.5 | [TD60B] | 12.1978-10.1980 |
| VOLVO | F 615S 5.5 | [TD60B] | 12.1978-10.1981 |
| VOLVO | F 616S 5.5 | [TD60B] | 12.1978-10.1981 |
| VOLVO | F 617S 5.5 | [TD60B] | 12.1978-10.1981 |
| VOLVO | F6 F 609 | D60A | 03.1975-02.1980 |
| VOLVO | F6 F 610 | TD60C | 02.1980-10.1986 |
| VOLVO | F6 F 611 | D60A | 09.1975-01.1980 |
| VOLVO | F6 F 611 | TD60C | 02.1980-02.1986 |
| VOLVO | F6 F 613,F 614 | TD60A | 09.1975-02.1986 |
| VOLVO | F6 F 613,F 614 | TD60B | 09.1975-02.1986 |
| VOLVO | F6 F 615 S | TD60B | 12.1978-10.1981 |
| VOLVO | F6 F 617 S | TD60B | 12.1978-02.1986 |
| VOLVO | F 7 7.0 | [TD70FS] | 08.1978-09.1981 |
| VOLVO | F7 F 7 | TD70F | 08.1978-12.1985 |
| VOLVO | F7 F 7 | TD70F | 08.1978-12.1985 |
| VOLVO | F7 F 7 | TD70F | 08.1978-12.1985 |
| VOLVO | F7 F 7 | TD70F | 08.1978-12.1985 |
| VOLVO | F7 F 7 | TD70FS | 08.1978-12.1985 |
| VOLVO | F7 F 7 | TD70FS | 08.1978-12.1985 |
| VOLVO | F7 F 7 | TD70FS | 08.1978-12.1985 |
| VOLVO | F7 F 7 | TD70FS | 08.1978-12.1985 |
| VOLVO | F7 F 7 | TD70FS | 08.1978-12.1985 |
| VOLVO | F7 F 7 | TD70FS | 08.1978-12.1985 |
| VOLVO | F7 F 7 | TD70FS | 08.1978-12.1985 |
| VOLVO | F7 F 7 | TD70FS | 08.1978-12.1985 |
| VOLVO | F7 F 7 | TD70G | 08.1978-12.1985 |
| VOLVO | F7 F 7 | TD70G | 08.1978-12.1985 |
| VOLVO | F7 F 7 | TD70G | 08.1978-12.1985 |
| VOLVO | F7 F 7 | TD70G | 08.1978-12.1985 |
| VOLVO | N 7 6.7 | [TD70E] | 01.1977-07.1978 |
| VOLVO | N7 N7 | TD70ES | 01.1973-09.1980 |
Reference Information
| 0001359071 | BOSCH |
| 0001367026 | BOSCH |
| 0001367030 | BOSCH |
| 11360 | EFEL |
| 12270774 | MWM |
| 2022518 | FIAT |
| 20401762BN | REAL |
| 20401762EL | REAL |
| 20500847 | PRESTOLITE |
| 220237 | ERA |
| 254089 | KUHNER |
| 254089K | KUHNER |
| 255701 | KUHNER |
| 4712894 | FIAT |
| 4713805 | FIAT |
| 4737758 | FIAT |
| 4755112 | FIAT |
| 6010267 | SANDO |
| 63216802 | MAGNETI MARELLI |
| 63216833 | MAGNETI MARELLI |
| 861049 | PRESTOLITE |
| 882005018 | FIAT |
| 88205018 | FIAT |
| 8962687 | FIAT |
| 9142744 | MAGNETON |
| 943252232 | MAGNETI MARELLI |
| CST10267AS | CASCO |
| CST10267ES | CASCO |
| MAV121900 | SIOM |
| MAV122670 | SIOM |
| MAV2070 | SIOM |
| MAV2120 | SIOM |
| MAV321760 | SIOM |
| MSN220 | MAGNETI MARELLI |
| MT66B | MAGNETI MARELLI |
| MT66BA | MAGNETI MARELLI |
| S12BH0661A2 | SIDAT |
| S9054 | AS-PL |
| STR52030 | WOODAUTO |
| STRS007 | 3EFFE |
| STRX759 | ELECTROLOG |
| STX210078 | STARDAX |
