Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MAGNETON
Price:
NZ$ 437.08 including GST
NZ$ 380.07 excluding GST
or four payments of $109.27
with
Learn More
each
S9053
No stock in NZ currently
No stock in NZ currently
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
9142687Associated Numbers
443115144744 9142687 S9053Specifications

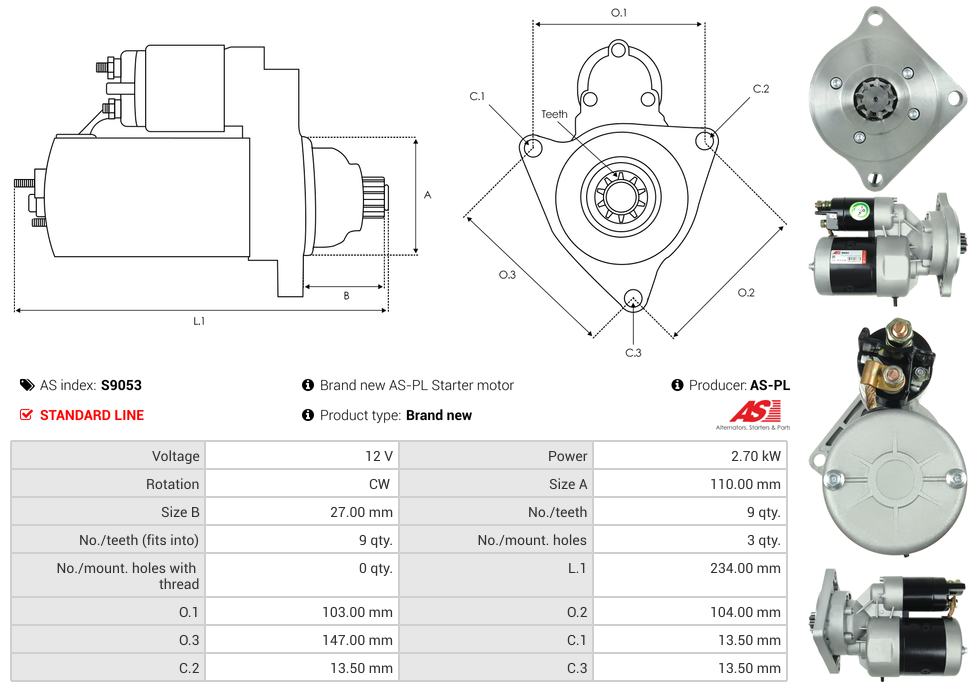

| Kilowatt | 2.70 kW |
| Length (L.1) | 234 mm |
| Mount Hole Center - Center (O.1) | 103 mm |
| Mount Hole Center - Center (O.2) | 104 mm |
| Mount Hole Center - Center (O.3) | 147 mm |
| Mount Hole Diameter (C.1) | 13.50 mm |
| Mount Hole Diameter (C.2) | 13.50 mm |
| Mount Hole Diameter (C.3) | 13.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 27 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 110 mm |
| Unit Type | MAGNETON |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FIAT | 402 | (agriculture) |
Reference Information
| 443115144744 | MAGNETON |
| 9142687 | MAGNETON |
| S9053 | AS-PL |
Video/Publications
