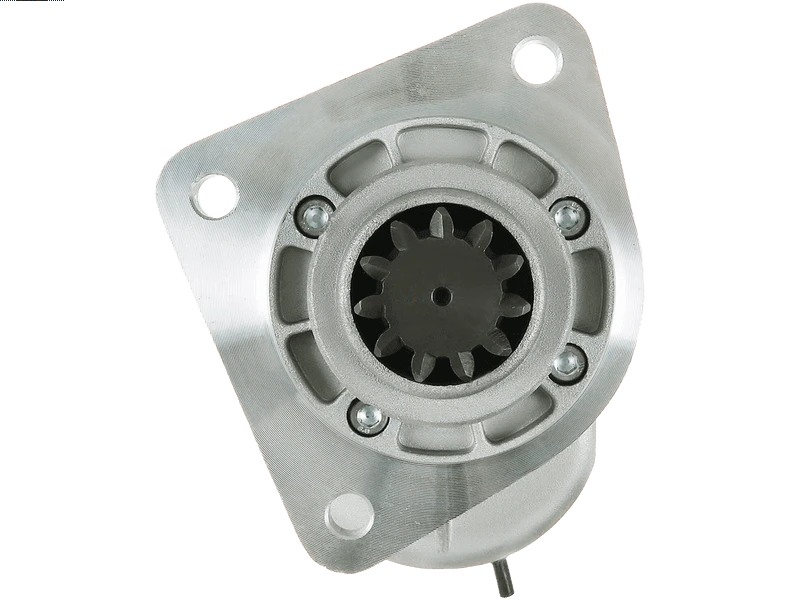

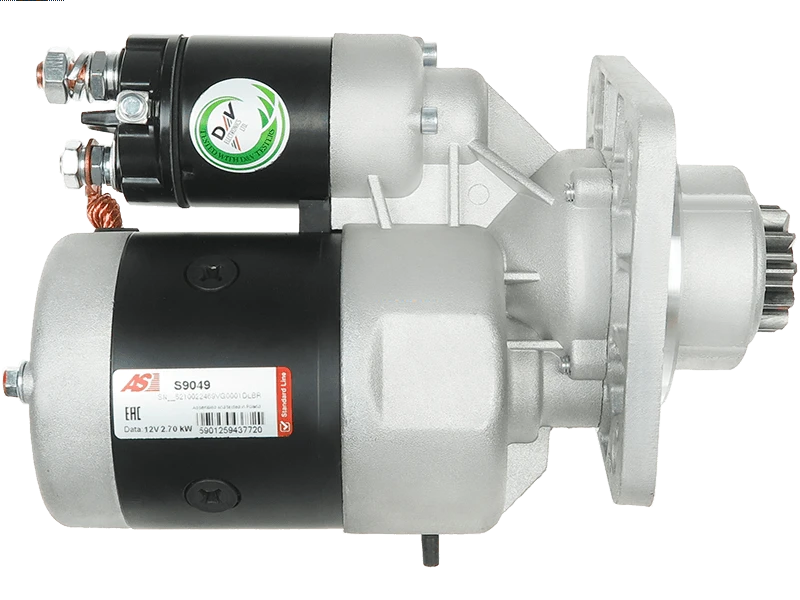

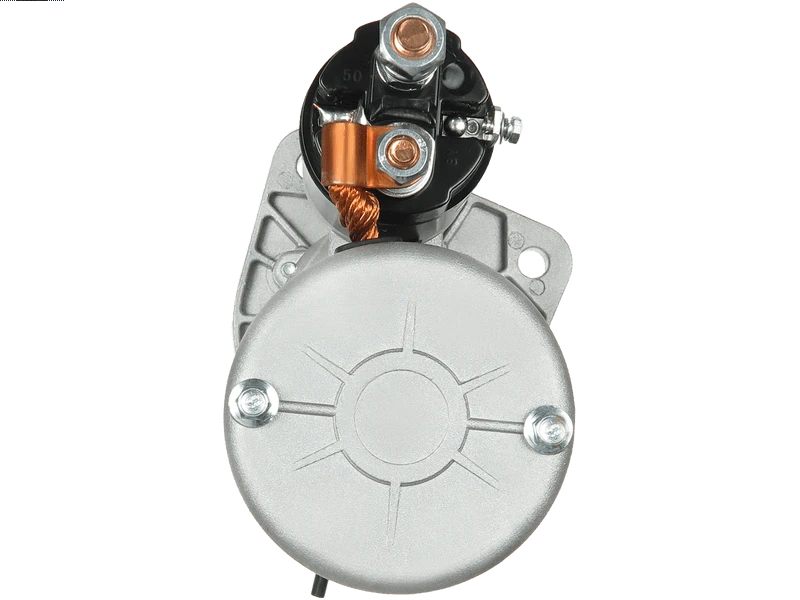

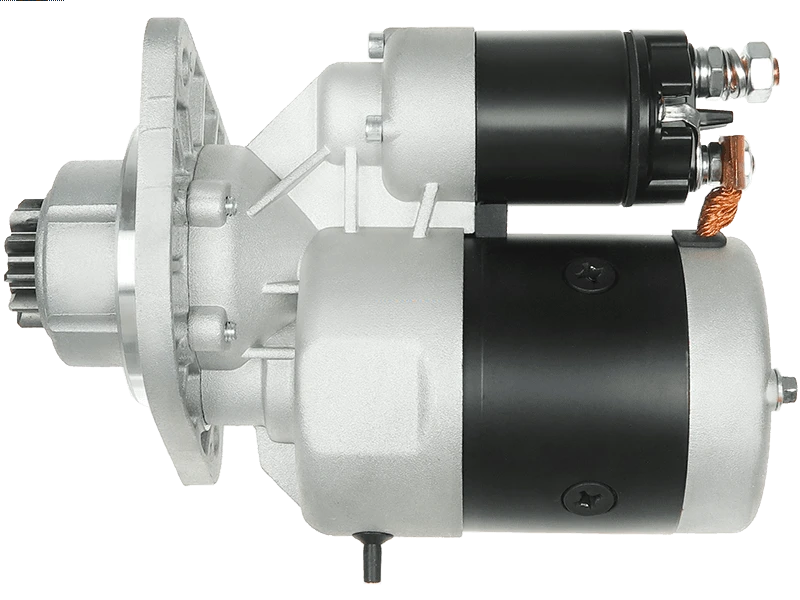

S9049 - Brand new AS-PL Starter motor

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MAGNETON
Price:
NZ$ 363.18 including GST

NZ$ 315.81 excluding GST
each
S9049
No stock in NZ
Item available to backorder, submit your order. Aprox 7-14 day delay - $40 Air freight charge additional
Purchase Qty:

64.942.801 80350911 9142742
Kilowatt2.7 kW
Length (L.1)236 mm
Mount Hole Center - Center (O.1)127 mm
Mount Hole Center - Center (O.2)90 mm
Mount Hole Center - Center (O.3)90 mm
Mount Hole Diameter (C.1)11 mm
Mount Hole Diameter (C.2)11 mm
Mount Hole Diameter (C.3)11 mm
No./Mount holes3 qty
No./Mount holes with thread0 qty
No./Teeth11 qty
No./Teeth (Replaces)11 qty
Pinion at Rest (B)47.5 mm
RotationCW
Spigot Diameter (A)89 mm
Unit TypeMAGNETON
Voltage12 V
Make Model Type Year
URSUS 1012 4.5 [Z 8002.1Turbo]
URSUS 1012 4.5 [Z8002.1Turbo]
URSUS 1014 4.5 [Z 8002.1Turbo]
URSUS 1014 4.5 [Z8002.1Turbo]
URSUS 1033 4.5 [Z 8002.13]
URSUS 1033 4.5 [Z8002.13]
URSUS 1035 4.5 [Z 8002.13]
URSUS 1035 4.5 [Z8002.13]
URSUS 1133 4.5 [Z 8002.12]
URSUS 1133 4.5 [Z8002.12]
URSUS 1135 4.5 [Z8002.12]
URSUS 912 4.5 [Z 8401.1]
URSUS 912 4.5 [Z8401.1]
URSUS 914 4.5 [Z 8401.1]
URSUS 914 4.5 [Z8401.1]
URSUS 933 4.5 [Z 8401.12]
URSUS 933 4.5 [Z8401.12]
URSUS 935 [Z 8401.12]
URSUS 935 [Z8401.12]
URSUS C 385
ZETOR 10011 [8002] 01.1975-01.1980
ZETOR 10045 [8002] 01.1975-01.1980
ZETOR 12011 [8601] 01.1969-01.1980
ZETOR 8011 [8001]
ZETOR 8045 [8001] 01.1969-01.1980
64.942.801 S9049 80350911 123708009 9142742
123708009 64.942.801 80350911 9142742
