Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MAGNETON
Price:
NZ$ 404.98 including GST
NZ$ 352.16 excluding GST
or four payments of $101.25
with
Learn More
UOM:
each
Product Code:
S9041
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
9172780Associated Numbers

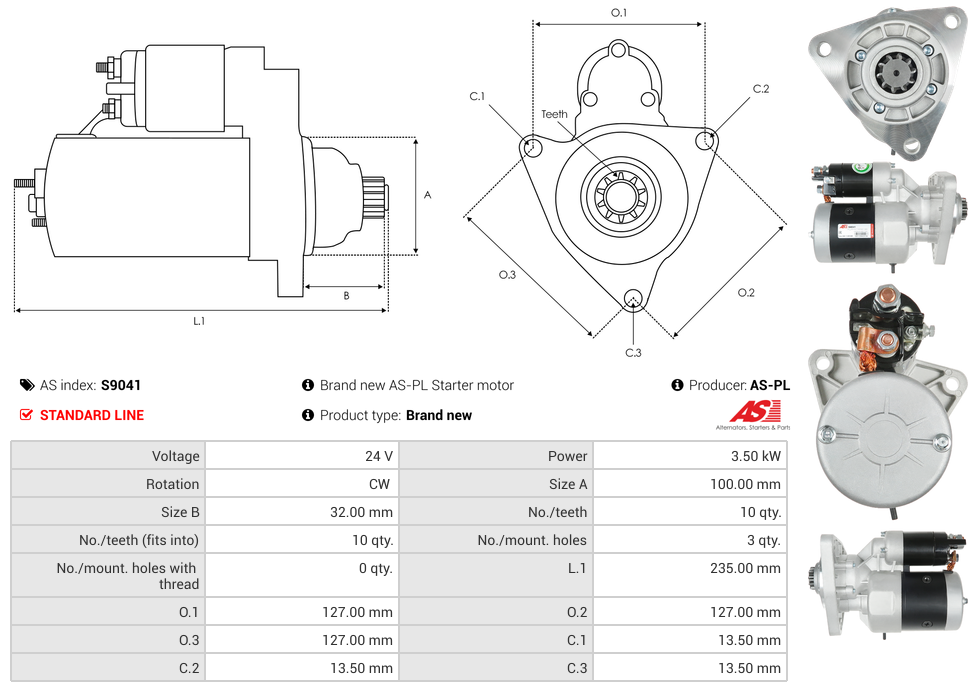

11.130.676 113356 28.3005 443115172780 8024R 9172780 AZJ3223 S9041 STR60412Specifications
| Kilowatt | 3.50 kW |
| Length (L.1) | 235 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 13.50 mm |
| Mount Hole Diameter (C.2) | 13.50 mm |
| Mount Hole Diameter (C.3) | 13.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| No./Teeth (Replaces) | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 32 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 100 mm |
| Unit Type | MAGNETON |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| BELARUS | 1005 4.8 T | D-245S | - |
| BELARUS | 1005 4.8 Turbo | MMZD-245 | - |
| BELARUS | 1021.3 4.8 T | D-245S2 | 01.2007- |
| BELARUS | 1021.3 4.8 Turbo | MMZD-245 | 01.2007- |
| BELARUS | 1021.4 4.8 | D-245S3A | 01.2013- |
| BELARUS | 1021 4.8 T | D-245S | - |
| BELARUS | 1021 4.8 Turbo | MMZD-245 | - |
| BELARUS | 1025.3 4.8 T | D-245S2 | 01.2004- |
| BELARUS | 1025.4-10/91 4.8 | D-245S3A | - |
| BELARUS | 1025.4-10/91 4.8 | MMZD-245 | - |
| BELARUS | 1025.4-10/99 4.0 | TCD2012 | - |
| BELARUS | 1025.4-10/99 4.0 | TCD2012L04-2VC3UT83 | - |
| BELARUS | 1025.4 4.8 | D-245S3B | 01.2013- |
| BELARUS | 1025.4 4.8 T | D-245S2 | 01.2008- |
| BELARUS | 1025 4.8 | D-245 | - |
| BELARUS | 1025 4.8 | MMZD-245 | - |
| BELARUS | 1025XL 4.8 | D-245 | - |
| BELARUS | 1025XL 4.8 | MMZD-245 | - |
| BELARUS | 1220.3 4.8 | D-245.252 | - |
| BELARUS | 1220.3 4.8 | MMZD-245.252 | - |
| BELARUS | 1220.4 4.8 | D-245.2S3 | - |
| BELARUS | 1220.4 4.8 | MMZD-245.2S3 | - |
| BELARUS | 1522 7.1 | D-260.6 | - |
| BELARUS | 1522 7.1 | MMZD-260 | - |
| BELARUS | 323.5 4.8 | D-245.5S3B | 01.2013- |
| BELARUS | 510 4.8 | D-244 | - |
| BELARUS | 510 E 4.8 | D-244 | - |
| BELARUS | 510 E 4.8 | MMZD-244 | - |
| BELARUS | 512 E 4.8 | D-244 | - |
| BELARUS | 512 E 4.8 | MMZD-244 | - |
| BELARUS | 520 4.8 | D-242 | - |
| BELARUS | 520 4.8 | MMZD-242 | - |
| BELARUS | 522 4.8 | D-242 | - |
| BELARUS | 522 4.8 | MMZD-242 | - |
| BELARUS | 570 4.8 | D-242 | 01.1990- |
| BELARUS | 570 4.8 | MMZD-242 | 01.1990- |
| BELARUS | 572 4.8 | D-242 | 01.1990- |
| BELARUS | 572 4.8 | MMZD-242 | 01.1990- |
| BELARUS | 800 4.8 | D-243 | 01.1979-12.1996 |
| BELARUS | 800 4.8 | MMZD-243 | 01.1979-12.1996 |
| BELARUS | 800M 4.8 | D-243 | 01.1979-12.1996 |
| BELARUS | 800M 4.8 | MMZD-243 | 01.1979-12.1996 |
| BELARUS | 80.1 4.8 | D-242 | - |
| BELARUS | 80.1 4.8 | MMZD-243 | - |
| BELARUS | 802 4.8 | MMZ4 | 01.1977-12.1996 |
| BELARUS | 802 4.8 | 01.1977-12.1996 | |
| BELARUS | 8.04.820 | D-243 | - |
| BELARUS | 8.04.820 | MMZD-243 | 01.1977-12.1996 |
| BELARUS | 8.04.825 | 01.1977-12.1996 | |
| BELARUS | 805 4.8 | MMZ4 | 01.1977-12.1996 |
| BELARUS | 805 4.8 | 01.1977-12.1996 | |
| BELARUS | 820 4.8 | D-243 | 01.1977-12.1996 |
| BELARUS | 820 4.8 | MMZD-243 | 01.1977-12.1996 |
| BELARUS | 82.1 4.8 | D-243 | - |
| BELARUS | 82.1 4.8 | MMZD-243 | - |
| BELARUS | 822 4.8 | MMZ4 | - |
| BELARUS | 822 4.8 | 01.1977-12.1996 | |
| BELARUS | 825 4.8 | 01.1977-12.1996 | |
| BELARUS | 890 4.8 Turbo | MMZD-245 | - |
| BELARUS | 890 T 4.8 | D-245.5 | - |
| BELARUS | 892.2 4.8 | D-245.5 | - |
| BELARUS | 892.2 4.8 | MMZD-245 | - |
| BELARUS | 892 4.8 Turbo | MMZD-245 | - |
| BELARUS | 892 T 4.8 | D-245.5 | - |
| BELARUS | 900 4.8 | D-243 | 01.1977-12.1996 |
| BELARUS | 900 4.8 | MMZD-243 | 01.1977-12.1996 |
| BELARUS | 900 S 4.8 | D-243 | - |
| BELARUS | 900 S 4.8 | MMZD-243 | - |
| BELARUS | 902 4.8 | MMZ4 | 01.1977-12.1996 |
| BELARUS | 902 4.8 | 01.1977-12.1996 | |
| BELARUS | 905 4.8 | MMZ4 | 01.1977-12.1996 |
| BELARUS | 905 4.8 | 01.1977-12.1996 | |
| BELARUS | 920.3 4.8 | D-245.43S3A | - |
| BELARUS | 920.3 4.8 | MMZD-245.43 | - |
| BELARUS | 920.3-70 | MMZD-245.43 | - |
| BELARUS | 920.3-70 4.8 | D-245.43S3A | - |
| BELARUS | 920.3A | MMZD-245 | - |
| BELARUS | 920.3A 4.8 | D-245 | - |
| BELARUS | 920.4-10/91 4.8 | D-245.43S3A | 01.2008- |
| BELARUS | 920.4-10/91 4.8 | MMZD-245.43 | 01.2008- |
| BELARUS | 920.4 4.8 | D-245.43S3A | 01.2013- |
| BELARUS | 920 4.8 | D-243 | 01.1994-12.1996 |
| BELARUS | 920 4.8 | MMZD-243 | 01.1994-12.1996 |
| BELARUS | 921.3 4.8 | D-245.5S2 | - |
| BELARUS | 921.3 4.8 | MMZD-245.5 | - |
| BELARUS | 922.3 4.8 | [D-245.5S2 | - |
| BELARUS | 922.3 4.8 | MMZD-245.5 | - |
| BELARUS | 922.4 4.8 | D-245.5S3A | 01.2013- |
| BELARUS | 922 4.8 | D-245.5 | 01.1994- |
| BELARUS | 922.5 4.8 | D-245.5S3B | 01.2013- |
| BELARUS | 923.3 4.8 | D-2455.5 | 01.2009- |
| BELARUS | 923.3 4.8 | D-245.5S2 | 01.2009- |
| BELARUS | 923.4 4.8 | D-245.5S3A | 01.2013- |
| BELARUS | 925.4 4.8 | D-245S3A | - |
| BELARUS | 925 4.8 | MMZ4 | - |
| BELARUS | 925 4.8 | 01.1977-12.1996 | |
| BELARUS | 950 4.8 | D-245.5 | 01.1994- |
| BELARUS | 950S 4.8 | D-243 | - |
| BELARUS | 950S 4.8 | MMZD-243 | - |
| BELARUS | 952.2 4.8 | D-245.5 | - |
| BELARUS | 952.2 4.8 | MMZD-245.5 | - |
| BELARUS | 952.2-70 | MMZD245.5 | - |
| BELARUS | 952.2-70 4.8 | D-245.5 | - |
| BELARUS | 952.3 4.8 T | D-245.5S2 | - |
| BELARUS | 952.3 T 4.8 | D-245.5S2 | - |
| BELARUS | 952.4-10/91 | MMZD-245.43 | 01.2008- |
| BELARUS | 952.4-10/91 4.8 | D-245.43S3A | 01.2008- |
| BELARUS | 952 4.8 | D-245.5 | 01.1994- |
| BELARUS | 952 4.8 XL | MMZD-243 | - |
| BELARUS | 952.5 4.8 | D-245.5S3B | 01.2013- |
| BELARUS | 952S 4.8 | D-243 | - |
| BELARUS | 952S 4.8 | MMZD-243 | - |
| BELARUS | 952XL 4.8 | D-243 | - |
| BELARUS | MTZ Series | [D-245.5] | |
| BELARUS | MTZ Series | D-245.5 | - |
| BELARUS | MTZ Series 7.2 | [D-260.2] | |
| BELARUS | MTZ Series 7.2 | D-260.2 | - |
| BELARUS | MTZ Series 7.2 | [D-260.6] | |
| BELARUS | MTZ Series 7.2 | D-260.6 | - |
| GAZ | 33081 | D-245.7 | - |
| GAZ | 33081 | D-245.7-165 | - |
| GAZ | 33081 | MMZD-245.7 | - |
| GAZ | 33081 | MMZD-245.7-165 | - |
| GAZ | 33081 4.7 | [D245.7] | |
| GAZ | 33081 4.7 | D245.7 | - |
| PAZ | 4230-01 | D-245.9 | - |
| PAZ | 851017 | MMZD-245.9 | - |
| ZIL | 5301 4.7 | [D245.12] | 06.1996- |
| ZIL | 5301 4.7 | D245.12 | 06.1996- |
| ZIL | 5301 4.8 | D245.12 | 06.1996- |
| ZIL | 5301 4.8 | MMZD245.12 | 06.1996- |
Reference Information
| 11.130.676 | ISKRA / LETRIKA |
| 113356 | CARGO |
| 20073708000 | LADA |
| 28.3005 | LAUBER |
| 443115172780 | MAGNETON |
| 8024R | CEVAM |
| 9172780 | MAGNETON |
| AZJ3223 | ISKRA / LETRIKA |
| F032113356 | CARGO |
| S9041 | AS-PL |
| STR60412 | WOODAUTO |
| STR7844 | ELECTROLOG |
| STRX711 | ELECTROLOG |
Video/Publications
S9041View your shopping basket or Browse other items in Starter Motors.
