Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
SAWAFUJI
Price:
NZ$ 837.00 including GST
NZ$ 727.83 excluding GST
or four payments of $209.25
with
Learn More
each
S9040
No stock in NZ currently
No stock in NZ currently
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
03506020118Associated Numbers
0350-602-0118 28100-1743A STR70261Specifications

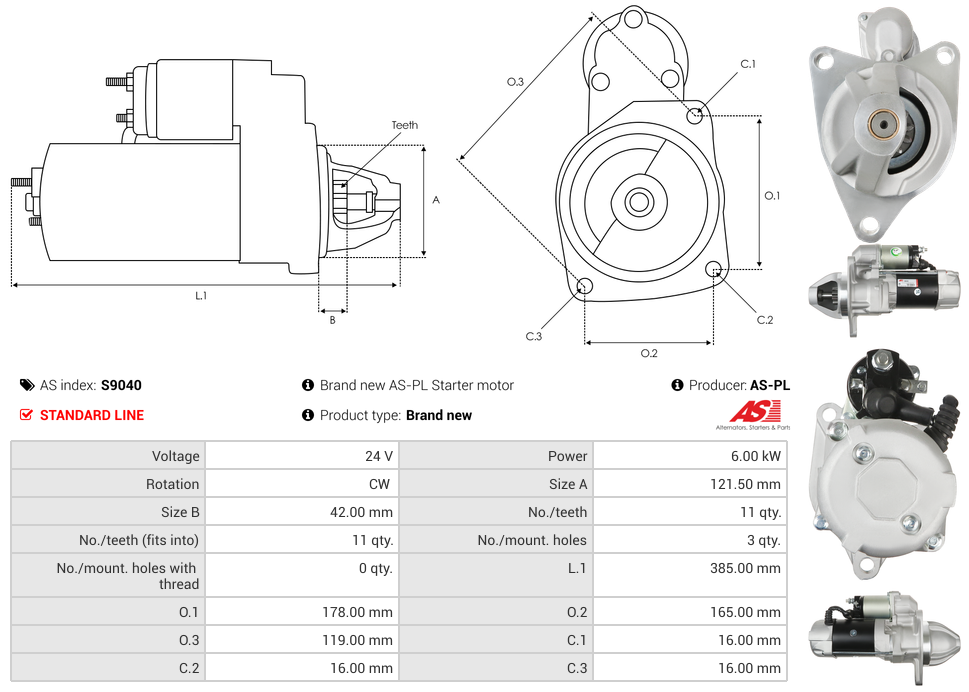

| Kilowatt | 6 kW |
| Length (L.1) | 385 mm |
| Mount Hole Center - Center (O.1) | 178 mm |
| Mount Hole Center - Center (O.2) | 165 mm |
| Mount Hole Center - Center (O.3) | 119 mm |
| Mount Hole Diameter (C.1) | 16 mm |
| Mount Hole Diameter (C.2) | 16 mm |
| Mount Hole Diameter (C.3) | 16 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| No./Teeth (Replaces) | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 42 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 121.50 mm |
| Unit Type | SAWAFUJI |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HINO | Various Models |
Reference Information
| 0350-602-0118 | SAWAFUJI |
| 28100-1743A | HINO |
| STR70261 | WOODAUTO |
| STR9877 | ELECTROLOG |
Video/Publications
