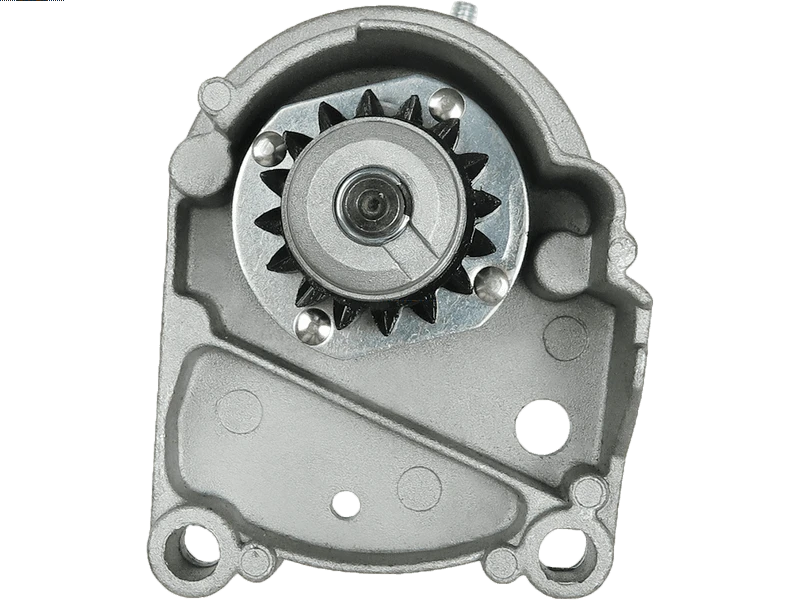

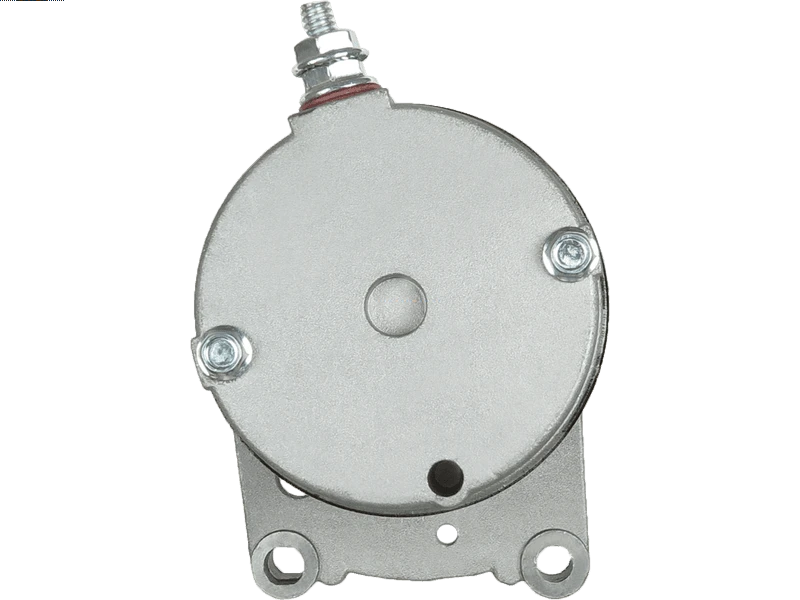

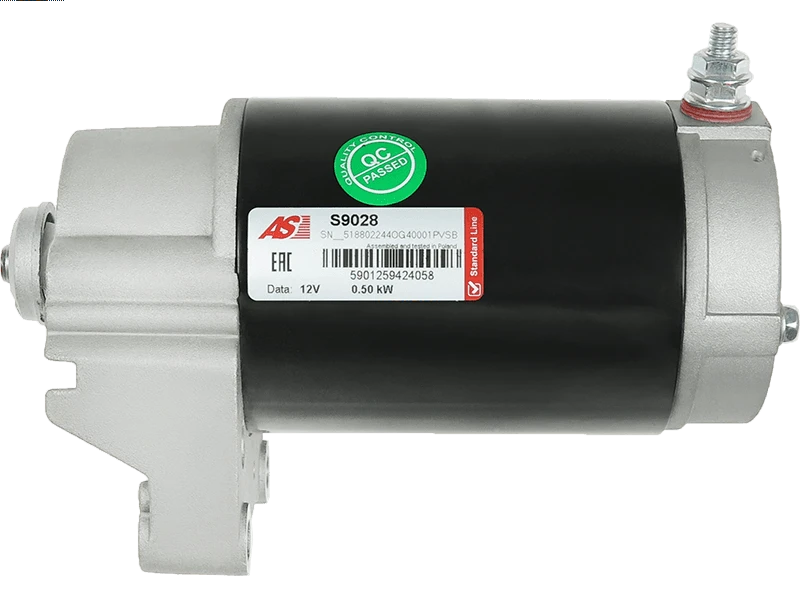

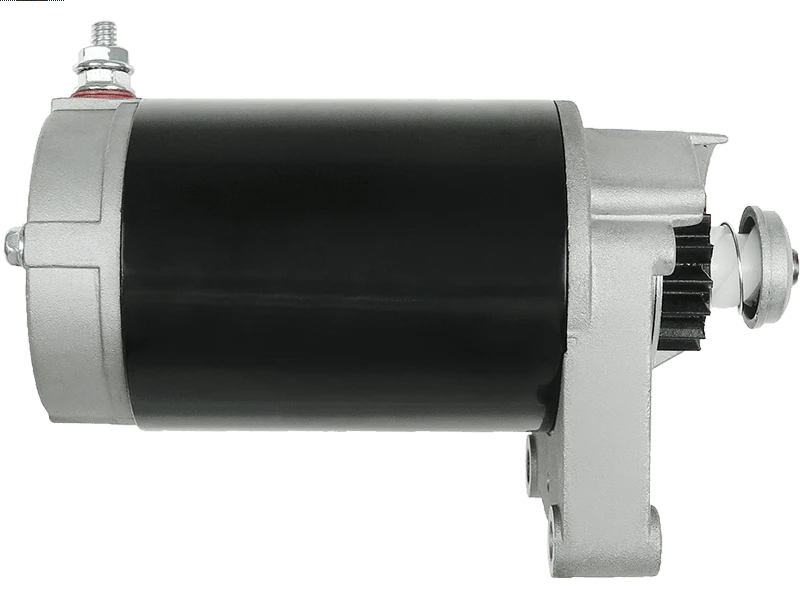

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BRIGGS STRATTON
Price:
NZ$ 138.20 including GST
NZ$ 120.17 excluding GST
or four payments of $34.55
with
Learn More
each
S9028
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
497596Associated Numbers
110635 393017 394674 394808 497596 5743N 8014 8212193 88212193 8EA730328-001 STR88005 US852Specifications
| Kilowatt | 0.50 kW |
| Length (L.1) | 180 mm |
| Mount Hole Center - Center (O.1) | 64 mm |
| Mount Hole Diameter (C.1) | 9.50 mm |
| Mount Hole Diameter (C.2) | 9.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 16 qty |
| No./Teeth (Replaces) | 16 qty |
| OEM Product | No |
| Pinion at Rest (B) | 13 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | ACW |
| Unit Type | BRIGGS STRATTON |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| BRIGGS & STRATTON | Various Models |
Reference Information
| 110635 | CARGO |
| 393017 | BRIGGS STRATTON |
| 394674 | BRIGGS STRATTON |
| 394808 | BRIGGS STRATTON |
| 497596 | BRIGGS STRATTON |
| 8014 | CEVAM |
| 8212193 | POWERMAX |
| 88212193 | POWERMAX |
| 8EA730328-001 | HELLA |
| AM38984 | JOHN DEERE |
| AM39287 | JOHN DEERE |
| CGB-98148 | AINDE |
| F032110635 | CARGO |
| LG497596 | JOHN DEERE |
| S9028 | AS-PL |
| STR88005 | WOODAUTO |
| STRF721 | 3EFFE |
| STRX034 | ELECTROLOG |
| US852 | HC PARTS |
Video/Publications
S9028View your shopping basket or Browse other items in Starter Motors.
