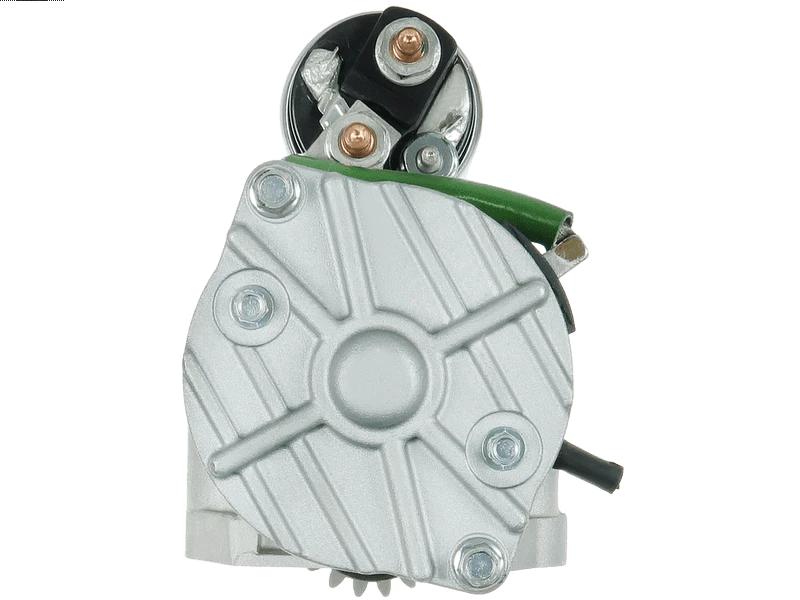

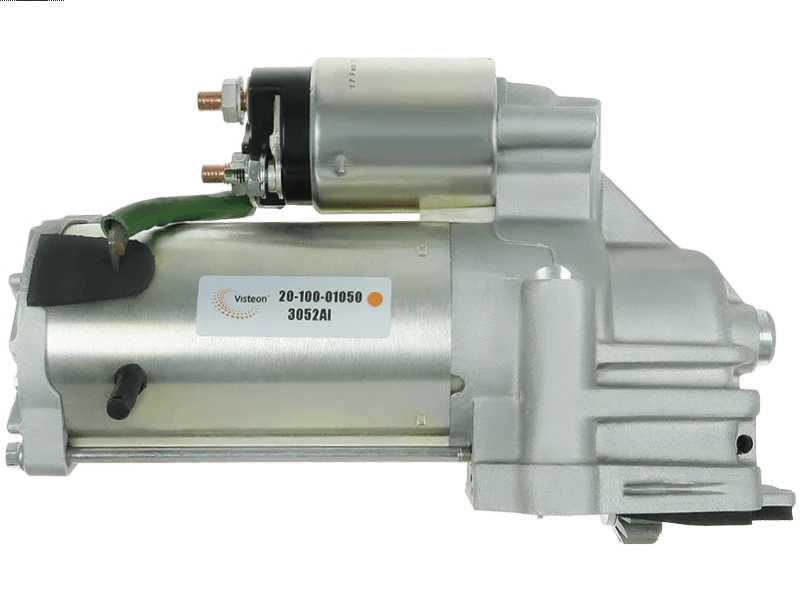

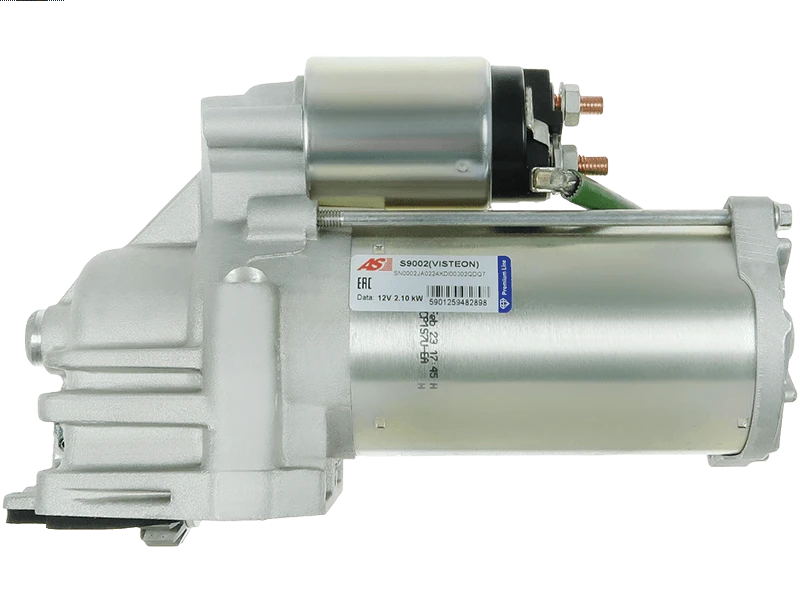

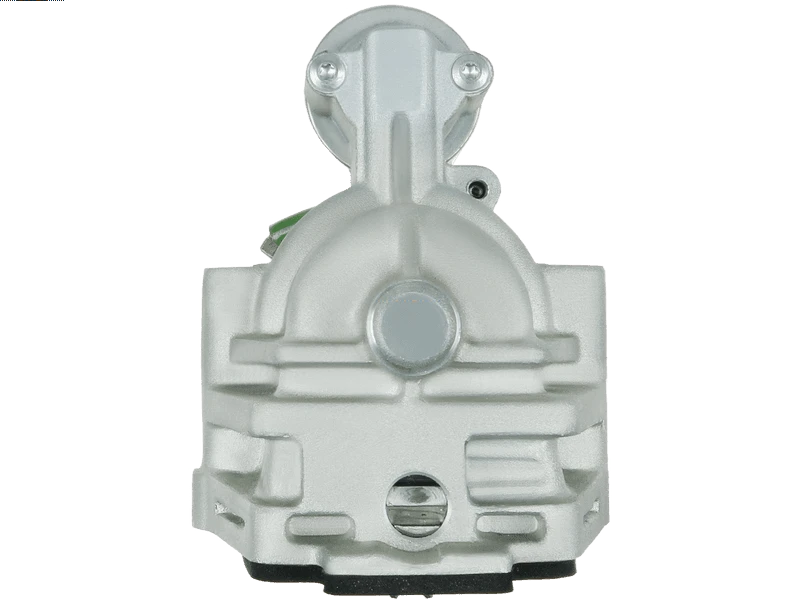

S9002(VISTEON) - Brand new OEM VISTEON Starter motor

Specifications

Kilowatt	2.1 kW
Length (L.1)	256 mm
Mount Hole Center - Center (O.1)	88 mm
Mount Hole Diameter (C.1)	10.5 mm
Mount Hole Diameter (C.2)	10.5 mm
No./Mount holes	2 qty
No./Mount holes with thread	0 qty
No./Teeth	19 qty
No./Teeth (Replaces)	19 qty
Pinion at Rest (B)	37 mm
Rotation	CW
Unit Type	FORD
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
FORD	Mondeo 2.0 DDi 16V	[HJBC]	11.2000-
FORD	Mondeo 2.0 DI 16V	[D5BA]	11.2000-
FORD	Mondeo 2.0 DI 16V	[SDBA]	11.2000-
FORD	Mondeo 2.0 TDCi	[FMBA]	10.2001-
FORD	Mondeo 2.0 TDCi	[N7BA]	10.2001-
FORD	Mondeo 2.0 TDCi 16V	[D6BA]	11.2000-
FORD	Mondeo 2.0 TDCi 16V	[HJBA]	11.2000-
FORD	Mondeo 2.0 TDCi 16V	[HJBB]	09.2002-
FORD	Mondeo 2.0 TDCi 16V	[HJBB]	11.2000-
FORD	Mondeo 2.0 TDCi 16V	[HJBC]	11.2000-
FORD	Mondeo 2.0 TDDi 16V	[D5BA]	11.2000-
FORD	Mondeo 2.0 TDDi 16V	[D6BA]	11.2000-
FORD	Mondeo 2.0 TDDi 16V	[HJBA]	11.2000-
FORD	Mondeo 2.0 TDDi 16V	[HJBB]	09.2002-
FORD	Mondeo 2.0 TDDi 16V	[HJBB]	11.2000-
FORD	Mondeo 2.0 TDDi 16V	[SDBA]	11.2000-
FORD	Mondeo 2.2 TDCi	[QJBA]	09.2004-
FORD	Mondeo 2.2 TDCi	[QJBB]	09.2004-
FORD	Mondeo 2.2 TDCi	[QJBC]	09.2004-08.2007
FORD	Mondeo 2.2 TDCi	[QJBD]	09.2004-08.2007
FORD	Transit 2.0 D	[ABFA]	08.2000-
FORD	Transit 2.0 D	[D3FA]	08.2000-
FORD	Transit 2.0 D	[F3FA]	08.2000-
FORD	Transit 2.0 TDCi	[FIFA]	08.2002-
FORD	Transit 2.4 D	[D2FA]	01.2000-
FORD	Transit 2.4 D	[D2FE]	01.2000-
FORD	Transit 2.4 D	[D4FA]	01.2000-
FORD	Transit 2.4 D	[F4FA]	01.2000-
FORD	Transit 2.4 TDCi	[H9FA]	03.2004-
FORD	Transit 2.4 TDE	[DOFA]	07.2001-
FORD	Transit 2.4 TDE	[FXFA]	03.2004-
JAGUAR	X-Type 2.0 D	[FMBA]	07.2003-11.2009
JAGUAR	X-Type 2.0 D	[FMBB]	07.2003-11.2009
JAGUAR	X-Type 2.0 D	[R4-X404]	07.2003-11.2009
JAGUAR	X-Type 2.2 D	[LJ46G]	01.2007-
JAGUAR	X-Type 2.2 D	[LJ46G]	10.2005-

Reference Information

20-100-01050 STM583 2010001050 4742541 STF1245 42737919 YC1U-11000-AC YC1U-11000-AD YC1U-11000-AA 458470 32501N YC1U-11000-AB 32501R RYC1U-11000-AF 11.139.459 CST14101AS 112794 YC1U-11000-AG YC1U-11000-AE YC1U-11000-AF PRSL148 CS1245 25-2463 NES2202 GS001022-A SG0386 1449615 6014101 986021351 DRS3797 1120215 590.533.192.235 112821 1151641 9.44281E+11 8EA012140-441 3022 6.0007.9 LRT00202 20450101OE R2S7T-11000-DB 1140110 72736050 CST14101GS 2167 1450653 101245 20-100-01022 4520765 AZE2226 8EA737919-001 8EA011610-151 SX 2S7T-11000-DA 2S7T-11000-DC 2S7T-11000-DB MS422 4078768 4069775 202-22101 STR35000 S9002 MRS80094 1541002 590.533.192.020 63280022010 220157 1S7U-11000-BC 1S7U-11000-BB 1S7U-11000-BA IS9418 2C16-11000-AA 590.533.192.028 11942 88213306 4529404 4509615 RAS34808 STR61801 2010001022 AES2202 63721245010 115870 1552432 101245V 6014101.1 20450101BN C2S27024 590.533.192.968 458371 S12VS0032A2 1214371 DS4907 XS7U-11000-AE 1096338 1551240 1387062 EAA-121002 C2S47099 S12VS0032

Video/Publications

063280022010 063721245010 0986021351 101245 101245V 1096338 11.139.459 1120215 112794 112821 1140110 1151641 115870 11942 1214371 1387062 1449615 1450653 1541002 1551240 1552432 1S7U-11000-BA 1S7U-11000-BB 1S7U-11000-BC 1S7U11000BA 20-100-01022 20-100-01050 2010001022 2010001050 202-22101 20450101 220157 25-2463 2C16-11000-AA 2S7T-11000-DA 2S7T-11000-DB 2S7T-11000-DC 3022 32501N 32501R 4069775 4078768 42737919 4509615 4520765 4529404 458371 458470 4742541 590.533.192 6.0007.9 6014101 72736050 88213306 8EA011610-151 8EA012140-441 8EA737919-001 944280800940 AES2202 AZE2226 C2S27024 C2S47099 CS1245 CST14101 CST14101AS CST14101ES CST14101GS CST14101OS CST14101RS DRS3797 DS4907 EAA-121002 GS001022-A IS9418 LRT00202 MRS80094 MS 422 MS422 NES2202 R2S7T-11000-DB RAS34808 RYC1U-11000-AF S9002 SG0386 STF1245 STM583 STR35000 STR61801 SX 2167 XS7U-11000-AE YC1U-11000-AA YC1U-11000-AB YC1U-11000-AC YC1U-11000-AD YC1U-11000-AE YC1U-11000-AG
