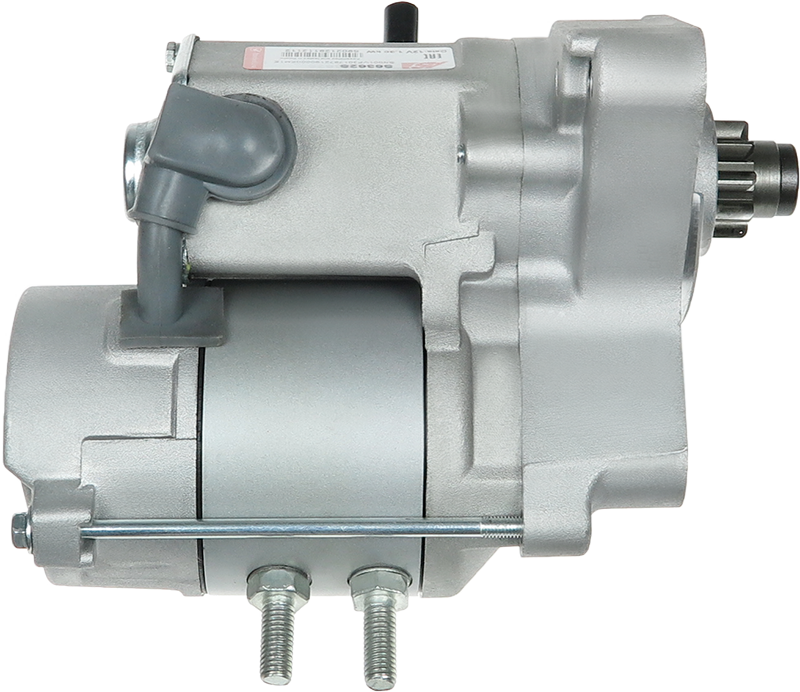

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 405.59 including GST
NZ$ 352.69 excluding GST
or four payments of $101.40
with
Learn More
each
S6362S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
28100-76090Associated Numbers
28100-76090 UD16982SSpecifications
| Kilowatt | 1.60 kW |
| Length (L.1) | 188 mm |
| Mount Hole Center - Center (O.1) | 93.50 mm |
| Mount Hole Center - Center (O.2) | 88 mm |
| Mount Hole Center - Center (O.3) | 118 mm |
| Mount Hole Diameter (C.1) | 13 mm |
| Mount Hole Diameter (C.2) | M10x1.25 mm |
| Mount Hole Diameter (C.3) | M10x1.25 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 21 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 74 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | Previa 2.4 | 01.1997-12.1997 | |
| TOYOTA | Previa 2.4 | 01.1994-12.1994 | |
| TOYOTA | Previa 2.4 | 01.1995-12.1995 | |
| TOYOTA | Previa 2.4 | 01.1996-12.1996 | |
| TOYOTA | Previa 2.4 | 01.1997-12.1997 |
Reference Information
| 0986UR1217 | BOSCH |
| 17524N | WAI / TRANSPO |
| 17524R | WAI / TRANSPO |
| 28100-76090 | TOYOTA |
| 91-29-5277 | WILSON |
| 91-29-5277N | WILSON |
| F042000169 | BOSCH |
| STN0894 | KRAUF |
| UD16982S | AS-PL |
