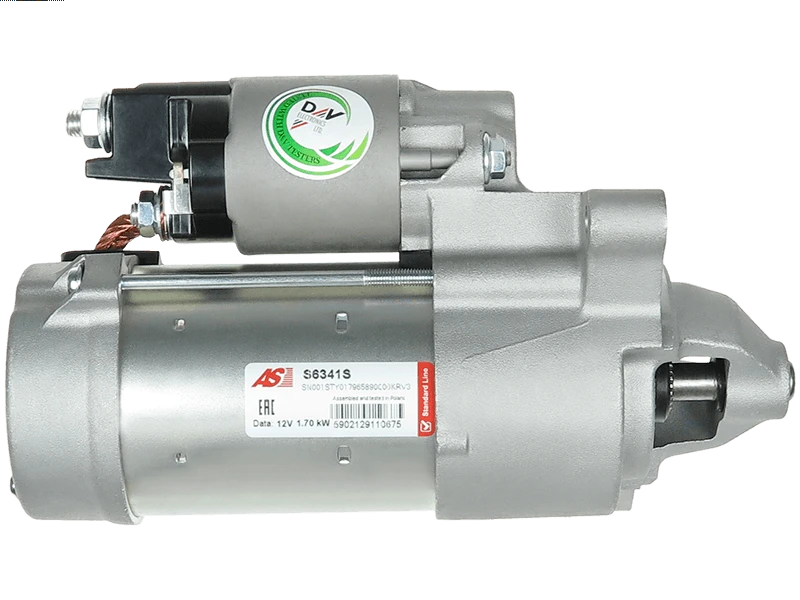

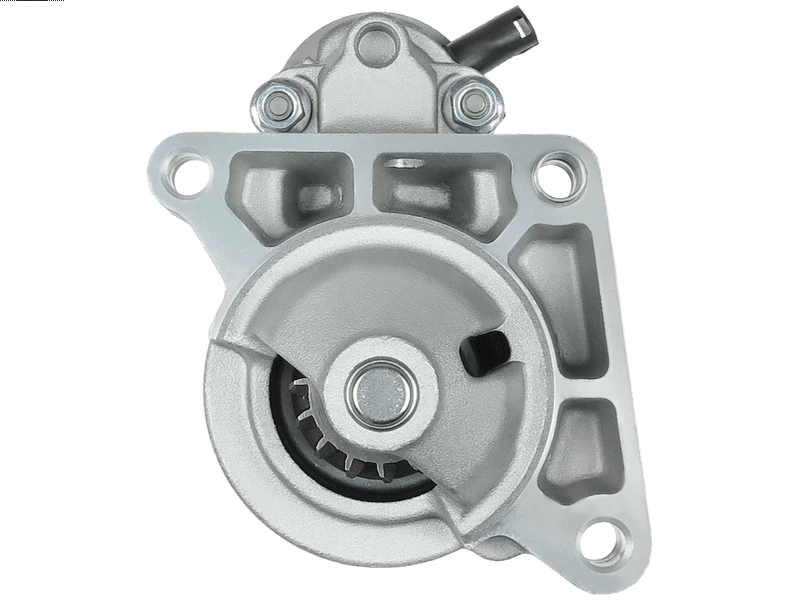

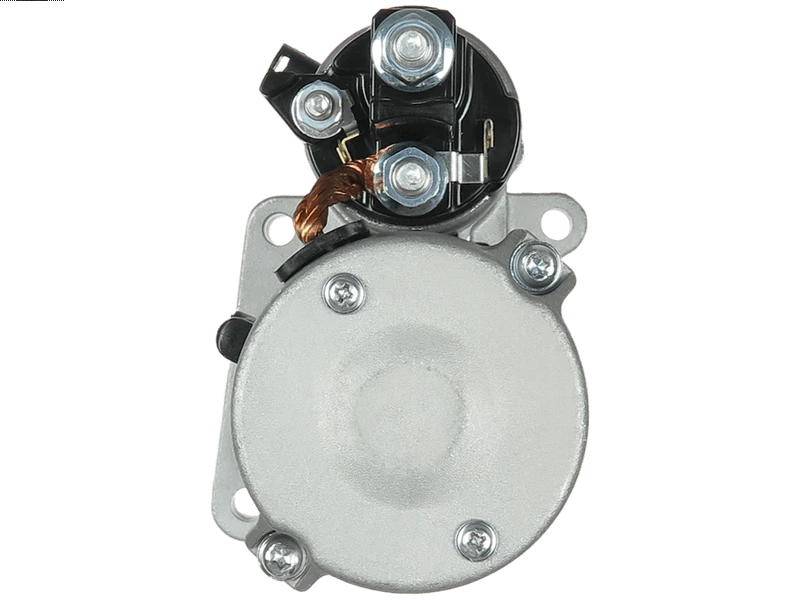

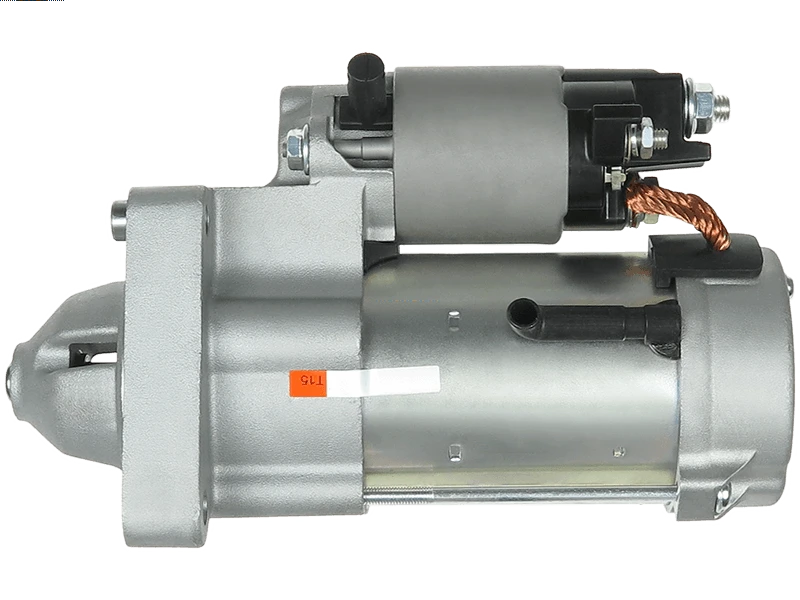

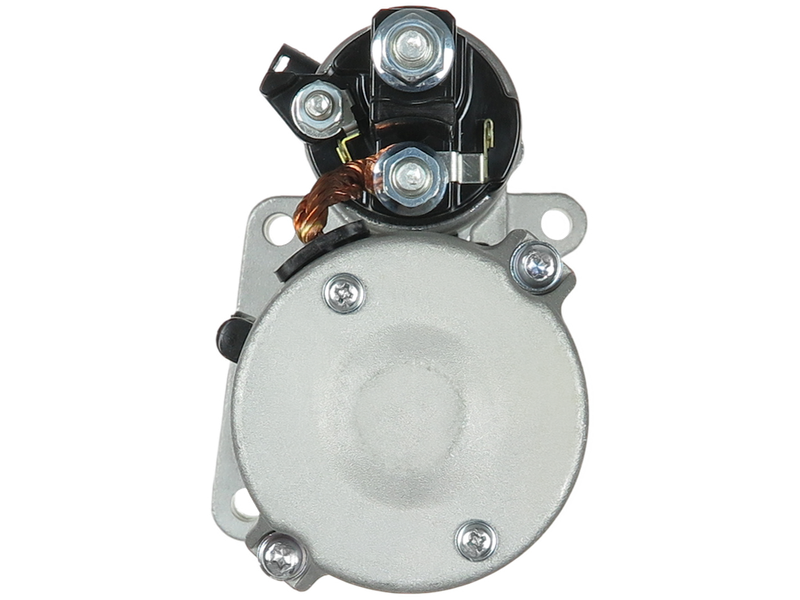

S6341S - Brand new AS-PL Starter motor

Specifications

Kilowatt	1.7 kW
Length (L.1)	217 mm
Mount Hole Center - Center (O.1)	75 mm
Mount Hole Center - Center (O.2)	113 mm
Mount Hole Center - Center (O.3)	75 mm
Mount Hole Diameter (C.1)	8.5 mm
Mount Hole Diameter (C.2)	9 mm
Mount Hole Diameter (C.3)	8.5 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	15 qty
Pinion at Rest (B)	1 mm
Rotation	CW
Spigot Diameter (A)	70 mm
Unit Type	DENSO
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
BMW	216 1.5 i	[B38A15A]	02.2015-02.2018
BMW	216 1.5 i	[B38A15A]	09.2014-02.2018
BMW	218 1.5 i	[B38A15A]	03.2015-
BMW	218 1.5 i	[B38A15A]	04.2017-
BMW	218 1.5 i	[B38A15A]	07.2014-
BMW	220 2.0 i	[B48A20A]	03.2014-
BMW	220 2.0 i	[B48A20A]	03.2015-
BMW	220 2.0 i	[B48A20F]	03.2014-
BMW	225 2.0 i	[B48A20B]	11.2013-
BMW	225 2.0 i xDrive	[B48A20B]	03.2014-
BMW	X1 1.5 sDrive 18 i	[B38A15A]	07.2017-
BMW	X1 1.5 sDrive 18 i	[B38A15A]	11.2014-05.2017
BMW	X1 2.0 sDrive 20 i	[B48A20A]	07.2015-
BMW	X1 2.0 sDrive 20 i	[B48A20F]	07.2015-
BMW	X1 2.0 xDrive 20 i	[B48A20A]	07.2015-
BMW	X1 2.0 xDrive 20 i	[B48A20B]	07.2015-
BMW	X1 2.0 xDrive 20 i	[B48A20F]	07.2015-
BMW	X1 2.0 xDrive 25 i	[B46A20B]	11.2014-
BMW	X1 2.0 xDrive 25 i	[B48A20A]	11.2014-
BMW	X1 2.0 xDrive 25 i	[B48A20B]	11.2014-

Reference Information

857084502 8570845 LRS04021 STR6742 857084505 12418570845 S12DE0846 764597902 25-5183 RNL438000-0483 438000-0473 116371 255616 12418581690 12418572899 30558-OS UD20550S 8581690 3293 STN0470 12418572542 210.555.152 LRS4021 438000-0480 12418581788 438000-0483

Video/Publications

116371 210.555.152 25-5183 255616 30558-OS 3293 438000-0483 438000-0473 764597902 857084502 857084505 LRS04021 LRS4021 RNL438000-0483 STN0470 UD20550S 438000-0480
