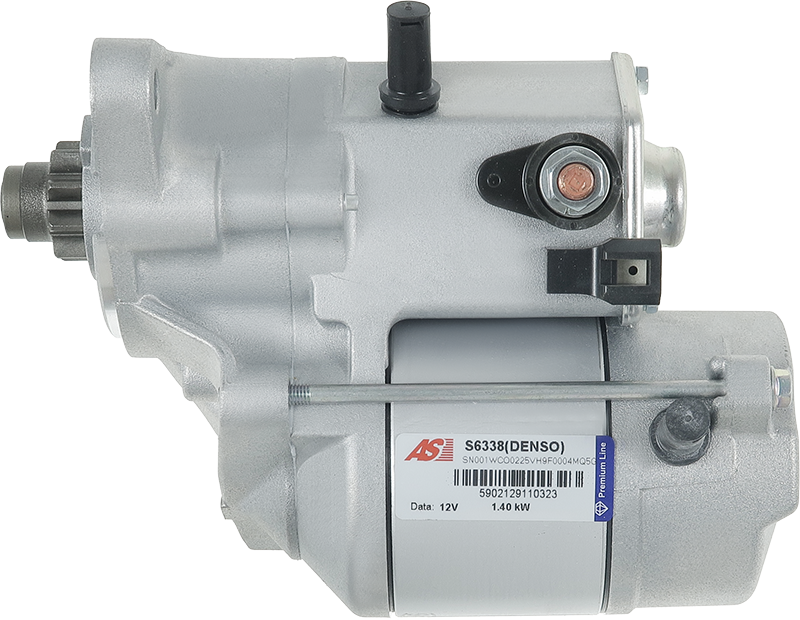

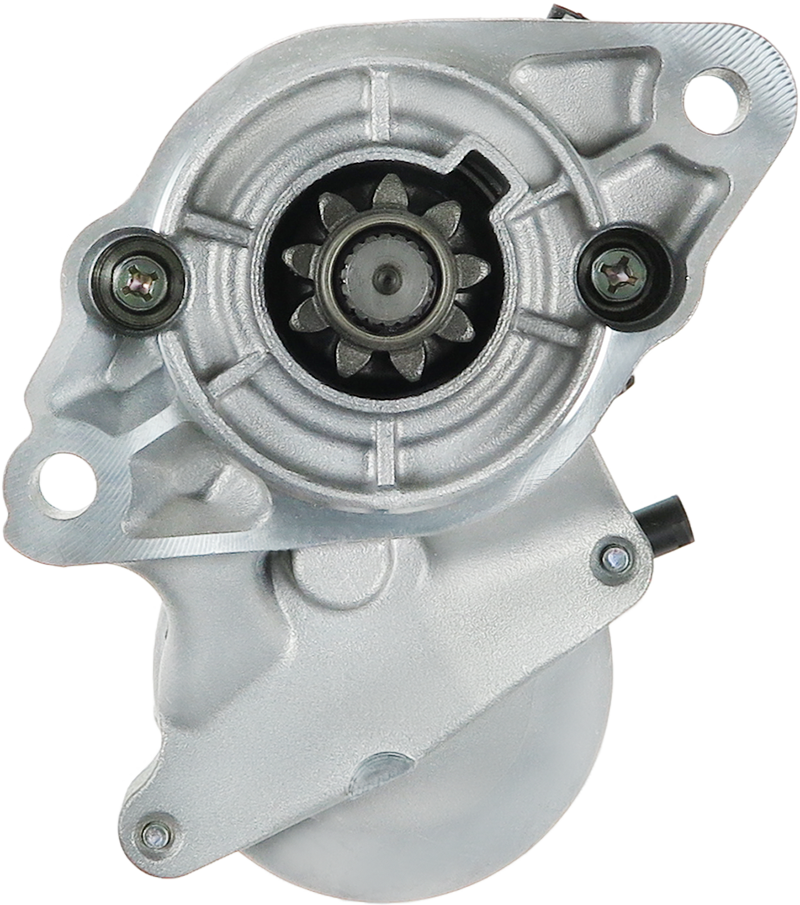

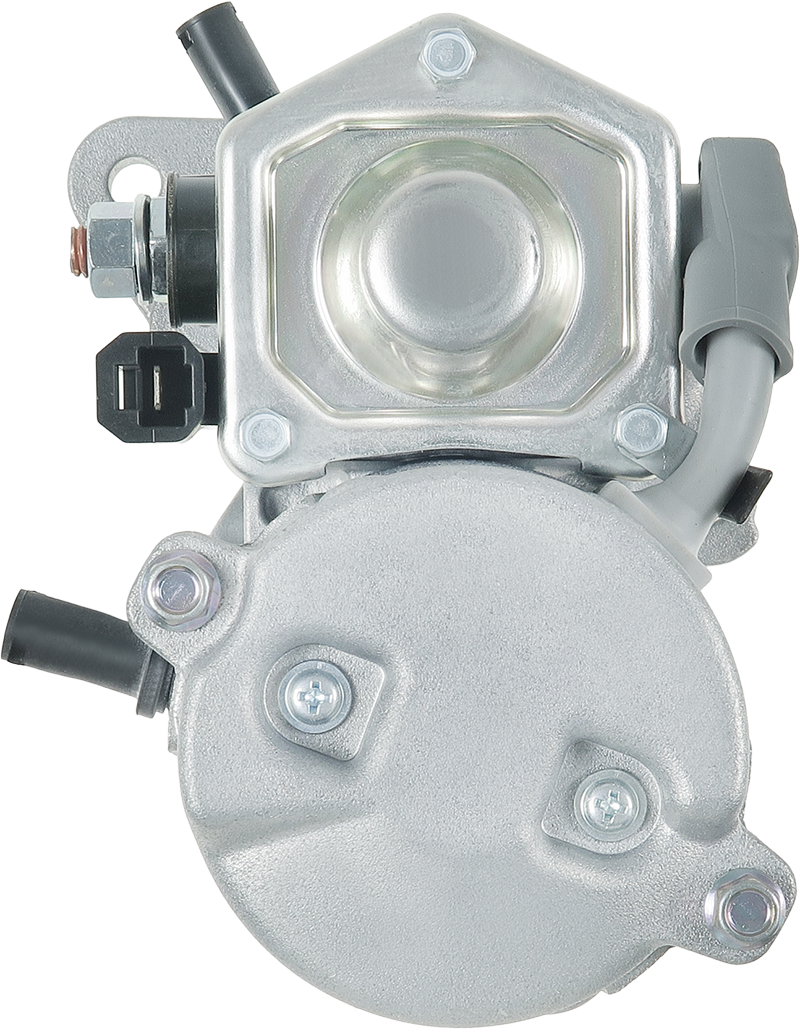

Brand new OEM DENSO Starter motor
PREMIUM LINE
Denso
DENSO
Price:
NZ$ 917.04 including GST
NZ$ 797.43 excluding GST
or four payments of $229.26
with
Learn More
each
S6338(DENSO)
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
DSN2077Associated Numbers
DSN2077 UD810212(DENSO)S CST40133AS CST40133GS DRS3714 9712809490 9722809106 2280000950 2280001060 2280001061 S-8524 246-14119 25-1421 STN0908 1921563010 1921563011 1921563012 1921563013 1926963010 LRS01251 690.523.092 20432331BN 20432331OE 6040133.0 6040133.1 91-29-5147 91-29-5147N DENDSN2077 16312
Specifications
| Kilowatt | 1.40 kW |
| Length (L.1) | 188 mm |
| Mount Hole Center - Center (O.1) | 110 mm |
| Mount Hole Diameter (C.1) | 9 mm |
| Mount Hole Diameter (C.2) | 9 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | Yes |
| Pinion at Rest (B) | 18 mm |
| Product Line | Premium Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 66 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AEBI | TC07 | [D782] | 01.2005-12.2008 |
| AGROMATIC | 760 | 01.2004- | |
| ATTACK | HW1130-K25 | [D1105] | 01.2012- |
| ATTACK | HW1230-K36 | [V1505-ET04] | 01.2012- |
| AUSA | D150 AHG | [D1105] | 01.2004- |
| AVANT | 420 | [D722] | 01.2010- |
| BELOS | Trans Pro 4560 | [V1505-T] | 01.2008- |
| BELOS | Trans Pro 54 | [V1505-T] | 01.2006- |
| CAMS | 218SV | [D1105] | 01.2005- |
| FIORI | 700 | [D902] | 01.2012- |
| FRIGIKING CARRIER | Mistral T 850+ | ||
| FRIGIKING CARRIER | Supra 822 | ||
| FRIGIKING CARRIER | Supra 844 Micro | [D722] | |
| GIANT | D262S | [D1105] | 01.2008- |
| GIANT | D262SW | [D1105] | 01.2008- |
| GIANT | D332SWT | [D1105-T] | 01.2012- |
| GIANT | V451T | [V1505-T] | 01.2006- |
| GIANT | V451 X-tra | [V1505-T] | |
| GIANT | V452T HD | [V1505-T] | 01.2014- |
| HUSQVARNA | P520D | [D922] | 01.2010- |
| KUBOTA | BX2350 | [D902] | 01.2008- |
| KUBOTA | D1105 | ||
| KUBOTA | D850-B | 01.1987-12.1992 | |
| KUBOTA | KTH4815 | [V1505-T] | 01.2015- |
| KUBOTA | KX41-3V | [D902] | 01.2004- |
| MOFFETT | M4 Fork Lift | [D1105-T] | |
| NORCAR | 755 | [D722] | 01.2014- |
| NORCAR | 760 | [D1105-E] | 01.2005- |
| NORCAR | 760 | [D905-E] | 01.2005- |
| NORCAR | 765 | [D1105-E] | 01.2005- |
| NORCAR | 765 | [V1505-E] | 01.2005- |
| NORCAR | a60 | [D1105] | 01.2010- |
| NORCAR | a62 | [D1105] | 01.2013- |
| SCHAFFER | 2020 | [D722-E] | 01.2010- |
| SCHAFFER | 2021 | [D722-E] | 01.2008- |
| SCHAFFER | 217 | [D722-E] | 01.2005- |
| SCHAFFER | 221 | [D950] | |
| SCHAFFER | 222 | [D950] | |
| TORO | Groundmaster 3280.D | [D1105] | 01.2008- |
| TORO | Groundmaster 3500.D | [D1105-T] | 01.2008- |
| TORO | Groundmaster 7210 | [D1105-T] | 01.2008- |
| TORO | Reelmaster 5610 | [V1505-T] | 01.2008- |
| TRANS PRO | 4560 | [V1505-T] | 01.2008- |
| VM | SQ1026 | [D1105] | 01.2012- |
| VPM | 3400 | [D1105-T] | 01.2012- |
Reference Information
| 028000-5390 | DENSO |
| 028000-6140 | DENSO |
| 0986UR1993 | BOSCH |
| 10040133AV | ITAB AUTOMOTIVE |
| 10040133OV | ITAB AUTOMOTIVE |
| 103754 | FARCOM |
| 104214 | FARCOM |
| 10440047 | ALANKO |
| 10440366 | ALANKO |
| 10440599 | ALANKO |
| 10465529 | DELCO |
| 110246 | CARGO |
| 128000-4900 | DENSO |
| 18148N | WAI / TRANSPO |
| 190-20147 | ROBERT'S |
| 19212-63011 | KUBOTA |
| 19215-63010 | KUBOTA |
| 19215-63011 | KUBOTA |
| 19215-63012 | KUBOTA |
| 19215-63013 | KUBOTA |
| 19269-63011 | KUBOTA |
| 19269-63012 | KUBOTA |
| 19269-63013 | KUBOTA |
| 20432331BN | REAL |
| 20432331OE | REAL |
| 20513076 | PRESTOLITE |
| 20676 | KUHNER |
| 20676D | KUHNER |
| 20676L | KUHNER |
| 20908D | KUHNER |
| 228000-0990 | DENSO |
| 228000-0991 | DENSO |
| 228000-1060 | DENSO |
| 228000-1061 | DENSO |
| 228000-1062 | DENSO |
| 228080-0991 | DENSO |
| 246-14119 | DIXIE |
| 25-1421 | ELSTOCK |
| 335760 | LOGISTIK |
| 33824 | EAI |
| 3675206 | CUMMINS |
| 3675206RX | CUMMINS |
| 5040175 | MEAT & DORIA |
| 6040133.0 | SANDO |
| 6040133.1 | SANDO |
| 6688372 | BOBCAT |
| 683003092 | DRI |
| 690.523.092 | PSH |
| 690.523.092.050 | PSH |
| 690.523.092.260 | PSH |
| 690.523.092.415 | PSH |
| 8001 | CEVAM |
| 8080236 | FRIESEN |
| 824ST33 | STARTCAR |
| 88212471 | POWERMAX |
| 8EA015642-151 | HELLA |
| 91-29-5147 | WILSON |
| 91-29-5147N | WILSON |
| 9712809490 | DENSO |
| 9722809106 | DENSO |
| A75840 | ATL AUTOTECHNIK |
| CGB-90970 | AINDE |
| CST40133AS | CASCO |
| CST40133GS | CASCO |
| DENDSN2077 | WOODAUTO |
| DRS3714 | DELCO |
| DSN2077 | DENSO |
| F032110246 | CARGO |
| GSSN2086-A | GPARTS |
| H5040175 | HOFFER |
| LES0281 | LE PART |
| LRS01251 | LUCAS |
| LRS1251 | LUCAS |
| PL9463 | SNRA |
| QRS1488 | QUINTON HAZELL |
| S12DE0079 | SIDAT |
| S12DE0079A2 | SIDAT |
| S135.004 | PSH |
| S144.729 | PSH |
| S148.448 | PSH |
| S511804 | BTS TURBO |
| S-70073 | DTS |
| S-70491 | DTS |
| S-8524 | DIXIE |
| SDN133 | AUTOTEAM |
| SDN133A | AUTOTEAM |
| SSSN2086-A | GPARTS |
| ST00626 | TMI |
| STN0167 | KRAUF |
| STR6185 | ELECTROLOG |
| STX200320 | STARDAX |
| STX200320R | STARDAX |
| UD810212(DENSO)S | AS-PL |
| WG1920189 | WILMINK GROUP |
| WG2196762 | WILMINK GROUP |
Video/Publications
