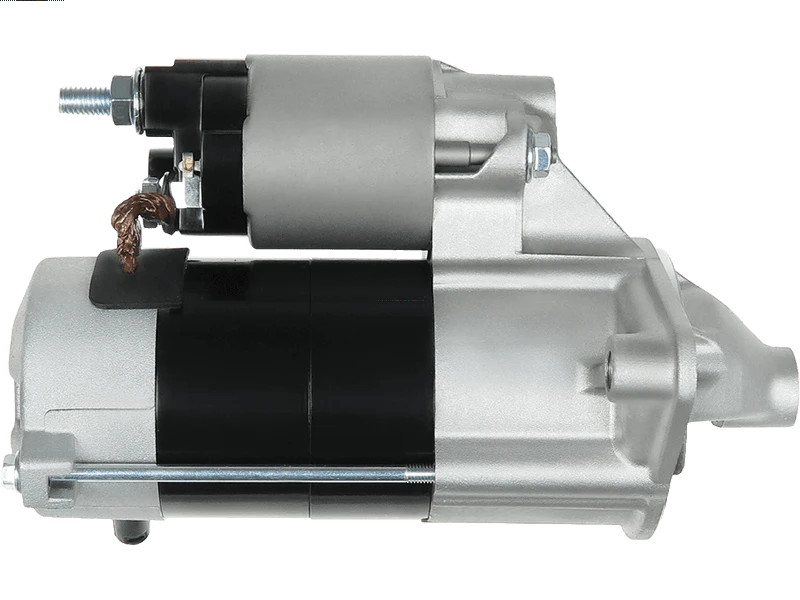

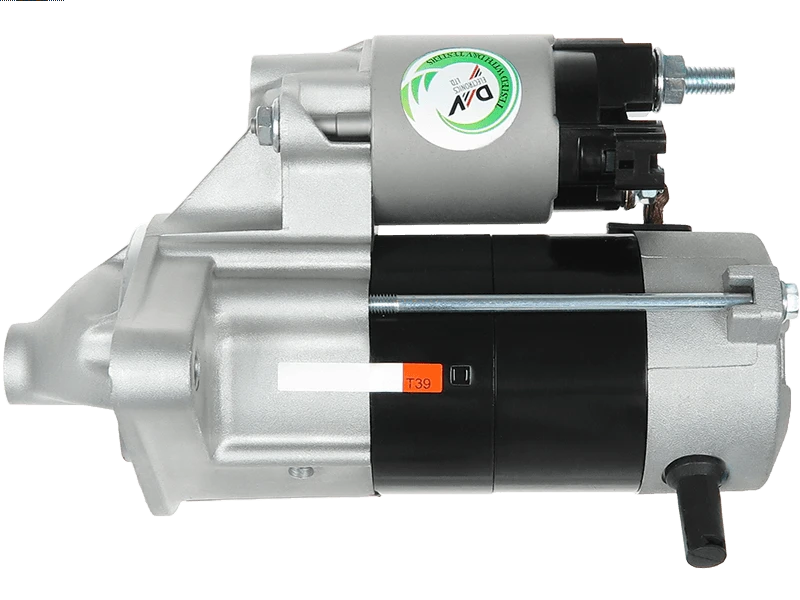

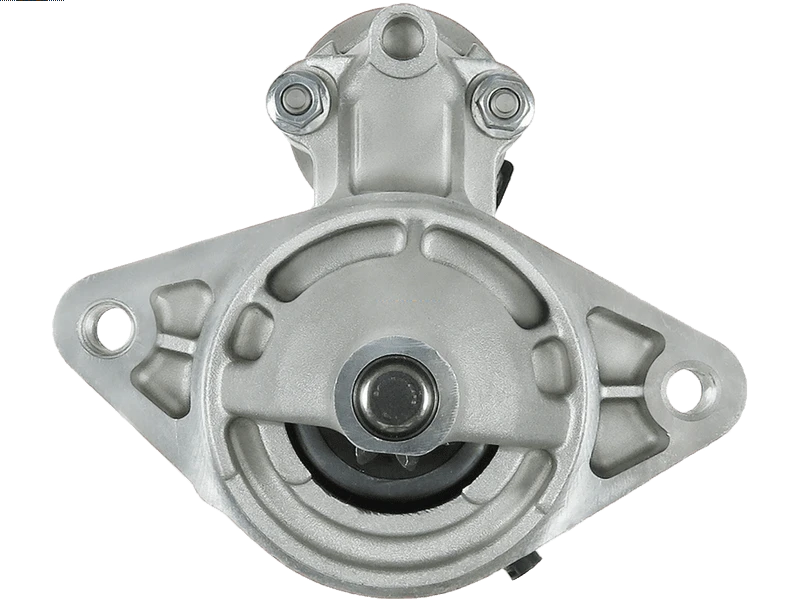

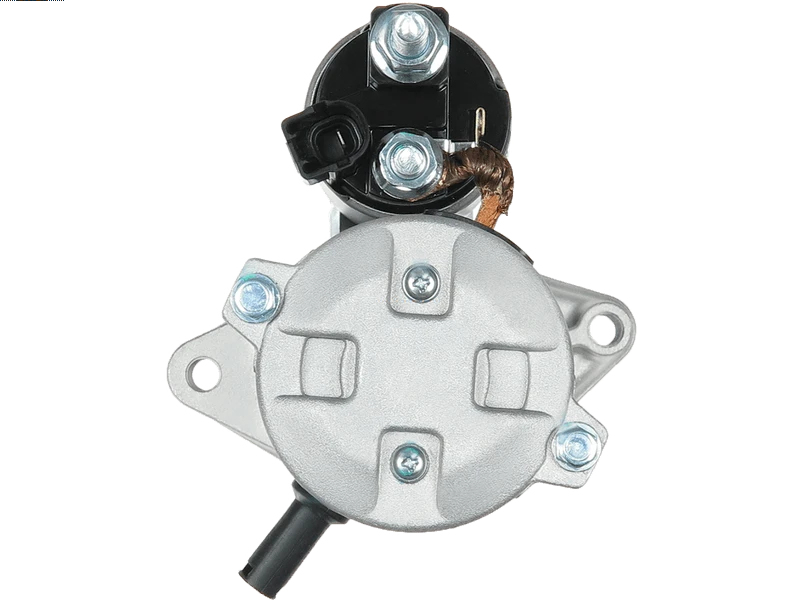

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 351.33 including GST
NZ$ 305.50 excluding GST
or four payments of $87.83
with
Learn More
each
S6392S
S6321S
1
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
228000-4020Associated Numbers
113665 190.546.092 20452011BN 228000-4020 228000-4310 228000-6730 228000-6750 25-2218 28100-0E010 28100-11060 28100-11080 28100-11140 28100-11160 6044110.0 91-29-5489 CST44110AS JS1023 LRT00212 S-8907 STN1023 UD90021S 17679N DXS463   SRJ155 16967 16-967
16967 S1690607
Specifications
| Kilowatt | 0.80 kW |
| Length (L.1) | 202 mm |
| Mount Hole Center - Center (O.1) | 114 mm |
| Mount Hole Diameter (C.1) | M10x1.25 mm |
| Mount Hole Diameter (C.2) | M10x1.25 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 5.50 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 74 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | Corolla 1.3 16V XLi | [4E-FE] | 07.1992-09.1995 |
| TOYOTA | Corolla 1.3 XLi | [4E-FE] | 07.1992-04.1997 |
| TOYOTA | Corolla 1.3 XLi | [4E-FE] | 09.1995-04.1997 |
| TOYOTA | Corolla 1.4 | [4E-FE] | 04.1997-02.2000 |
| TOYOTA | Corolla 1.4 16V GLi | [4E-FE] | 07.1992-09.1995 |
| TOYOTA | Corolla 1.4 16V XLi | [4E-FE] | 07.1992-09.1995 |
| TOYOTA | Paseo 1.5 | [5E-FE] | 01.1996-01.1997 |
| TOYOTA | Paseo 1.5 | [5E-FE] | 01.1997-01.1997 |
| TOYOTA | Paseo 1.5 | [5E-FE] | 01.1998-01.1998 |
| TOYOTA | Paseo 1.5 | [5E-FE] | 01.1999-01.1999 |
| TOYOTA | Paseo 1.5 16V | [5E-FE] | 08.1995-07.1999 |
| TOYOTA | Paseo 1.5 16V | [5E-FE] | 10.1996-01.1998 |
| TOYOTA | Starlet 1.3 | [4E-FE] | 04.1996-03.1999 |
| TOYOTA | Tercel 1.5 CE | [5E-FE] | 01.1997-01.1997 |
| TOYOTA | Tercel 1.5 CE | [5E-FE] | 01.1998-01.1998 |
Reference Information
| 113665 | CARGO |
| 17679N | WAI / TRANSPO |
| 190.546.092 | PSH |
| 190.546.092.415 | PSH |
| 20452011BN | REAL |
| 228000-4020 | DENSO |
| 228000-4310 | DENSO |
| 228000-6730 | DENSO |
| 228000-6750 | DENSO |
| 25-2218 | ELSTOCK |
| 28100-0E010 | TOYOTA |
| 28100-11060 | TOYOTA |
| 28100-11080 | TOYOTA |
| 28100-11140 | TOYOTA |
| 28100-11160 | TOYOTA |
| 6044110.0 | SANDO |
| 91-29-5489 | WILSON |
| CST44110AS | CASCO |
| F032113665 | CARGO |
| J5212088 | HERTH+BUSS |
| JS1023 | HC PARTS |
| LRT00212 | LUCAS |
| MAV461100 | SIOM |
| S131.336 | PSH |
| S148.949 | PSH |
| S6321S | AS-PL |
| S-8907 | DIXIE |
| STN1023 | KRAUF |
| STR6667 | ELECTROLOG |
| STRW426 | 3EFFE |
| STX200376 | STARDAX |
| STX200945 | STARDAX |
| STX200945R | STARDAX |
| STX200992 | STARDAX |
| UD90021S | AS-PL |
Video/Publications
