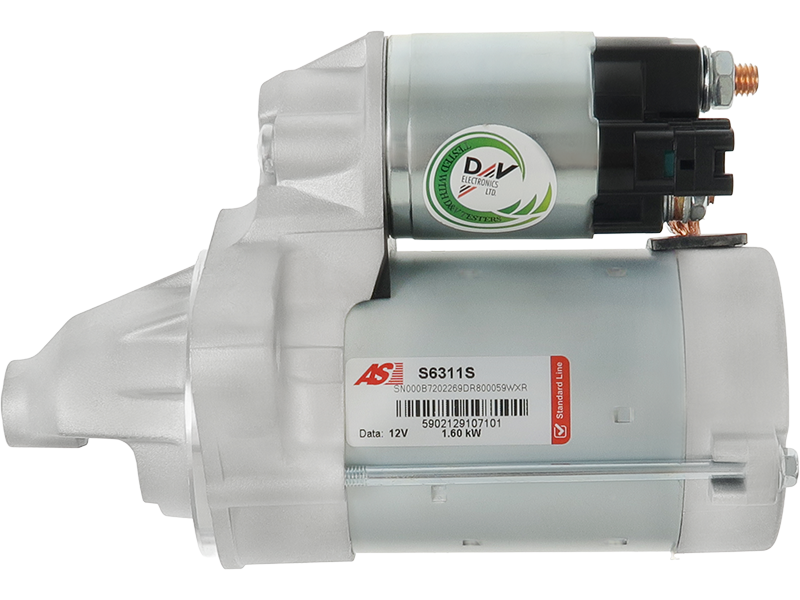

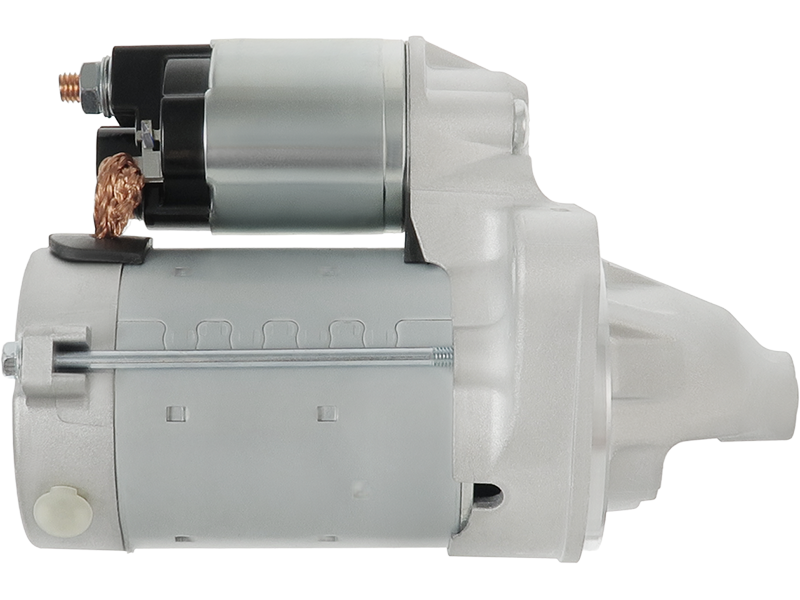

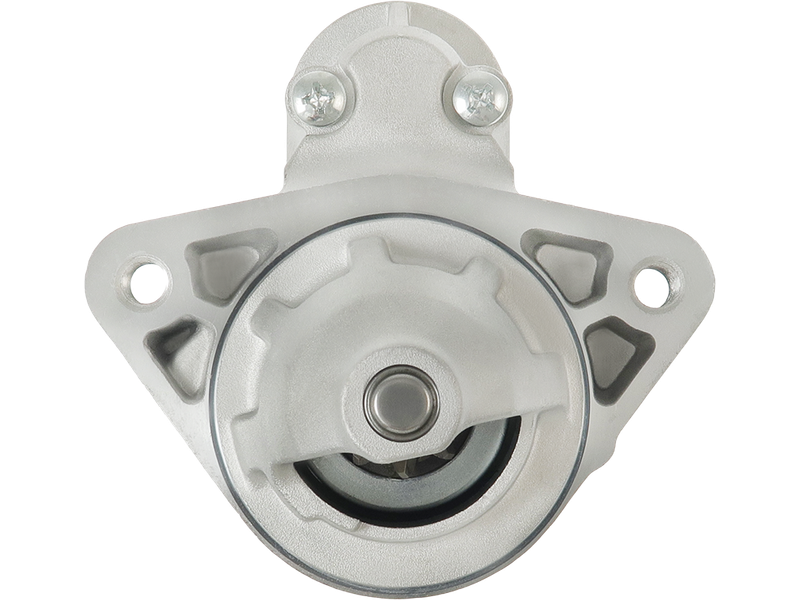

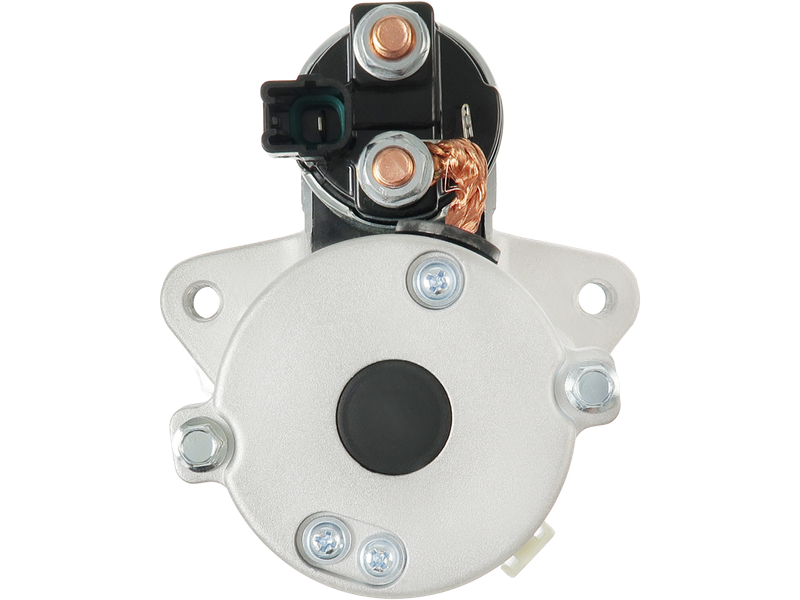

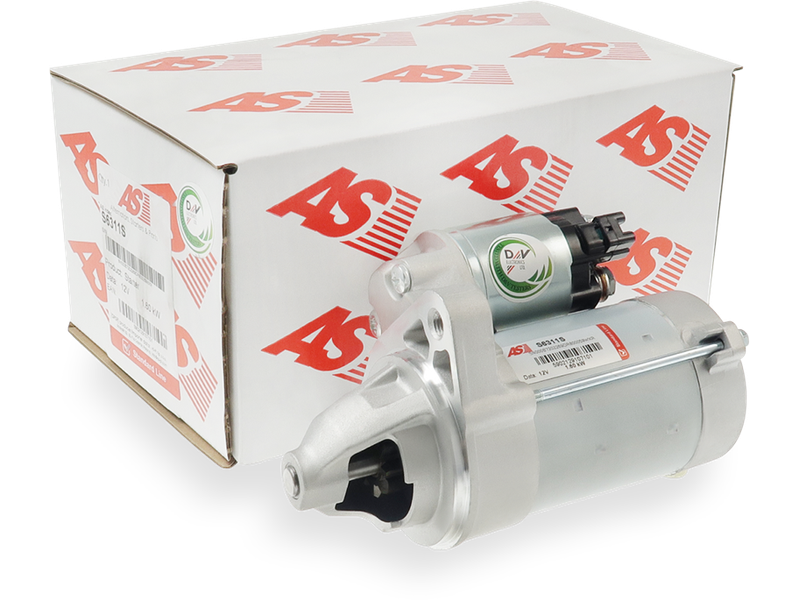

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 332.21 including GST
NZ$ 288.88 excluding GST
or four payments of $83.05
with
Learn More
UOM:
each
Product Code:
S6311S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
428000-1261Associated Numbers
190.949.092 19257N 428000-0551 428000-1260 428000-1261 STN3190 STR70493 UD02916S 2280008000 2280008001 1906394 PIC 190949092 PSH 19257 Lester 2810073020 Toyota 2810075190 4280000551 Denso show 4280001260 4280001261 4280001261SEL +line STR6421sa Electrolog dxs4040 DXS4031 70-8446-1NP 70-8446-1R snj265 4280801263 4280801262 4280801261 28100-75191 4280001262 4280001263 2810075151 2280008002
|
0986JR1291 |
Bosch Exchange |
|---|---|
|
190949092 |
PSH |
|
19257N |
WAI |
|
2810073020 |
Toyota |
|
2810075190 |
Toyota |
|
2810075191 |
Toyota |
|
4280000551 |
Denso |
|
4280001260 |
Denso |
|
4280001261 |
Denso |
|
4280001262 |
Denso |
|
STR70493 |
Wood Auto |
|
WOOSTR70493 |
Wood Auto |
Specifications
| Kilowatt | 1.60 kW |
| Length (L.1) | 184.00 mm |
| Mount Hole Center - Center (O.1) | 104 mm |
| Mount Hole Diameter (C.1) | M10x1.25 mm |
| Mount Hole Diameter (C.2) | M10x1.25 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 20 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 74 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | HIACE IV Bus (_H1_) 2.4 4WD (RZH103_, RZH109_, RZH113_, RZH115_, RZH103R,... | 2RZ-E | 08.1989-07.1995 |
| TOYOTA | HIACE IV Bus (_H1_) 2.4 (RZH103, RZH183) | 2RZ-E | 08.1989-08.2003 |
| TOYOTA | HIACE IV Bus (__H1_, __H2_) 2.4 4WD (RCH18) | 2RZ-E | 08.1995-04.1998 |
| TOYOTA | HIACE IV Bus (__H1_, __H2_) 2.4 (RCH12, RCH22) | 2RZ-E | 08.1995-04.1998 |
| TOYOTA | HIACE IV Bus (__H1_, __H2_) 2.7 (RCH13, RCH23) | 3RZ-FE | 04.1998-11.2001 |
| TOYOTA | HIACE IV Bus (__H1_, __H2_) 2.7 (RCH13, RCH23) | 3RZ-FE | 07.1998-12.2006 |
| TOYOTA | HIACE IV Van (_H1_) 2.0 (RZH102, RZH112) | 1RZ | 02.1990-08.2004 |
| TOYOTA | HIACE IV Van (_H1_) 2.4 4WD (RCH103_, RCH113_, RCH103R, RCH113R) | 2RZ-E | 08.1989-08.1995 |
| TOYOTA | HIACE IV Van (_H1_) 2.4 (RZH10) | 2RZ-E | 08.1989-08.1995 |
| TOYOTA | HIACE IV Van (__H1_, __H2_) 2.4 4WD (RCH18, RCH28) | 2RZ-E | 08.1995-04.1998 |
| TOYOTA | HIACE IV Van (__H1_, __H2_) 2.4 (RCH12, RCH22) | 2RZ-E | 08.1995-11.2003 |
| TOYOTA | HIACE IV Van (__H1_, __H2_) 2.7 (RCH13, RCH23) | 3RZ-FE | 04.1998-06.2005 |
| TOYOTA | Hilux 2.7 | 01.2004-12.2009 | |
| TOYOTA | HILUX VI Pickup (_N1_) 2.4 i 4WD (RZN14_, RZN16_, RZN19_) | 2RZ-FE | 08.1997-10.2005 |
| TOYOTA | Land Cruiser Prado 2.7 | [2TR-FE] | 11.2003-02.2010 |
| TOYOTA | Land Cruiser Prado 2.7 | 01.2003-12.2009 | |
| TOYOTA | LAND CRUISER PRADO (_J12_) 2.7 (TRJ120, TRJ125) | 2TR-FE | 11.2003-02.2010 |
| TOYOTA | SUPRA (_A7_) 3.0 Turbo (MA70_, MA70) | 7M-GTE | 08.1988-05.1993 |
| TOYOTA | SUPRA (_A7_) 3.0 Turbo (MA70_, MA70) | 7M-GTE | 09.1987-04.1993 |
Reference Information
| 0986JR1291 | BOSCH |
| 105384 | FARCOM |
| 190.949.092.050 | WAI |
| 19257N | WAI |
| 256660 | KUHNER |
| 28100-73020 | TOYOTA |
| 28100-73021 | TOYOTA |
| 28100-75190 | TOYOTA |
| 28100-75191 | TOYOTA |
| 3113970 | HENKEL PARTS |
| 428000-0551 | DENSO |
| 428000-1260 | DENSO |
| 428000-1261 | DENSO |
| 428000-1262 | DENSO |
| S131.283 | WAI |
| S6311S | AS-PL |
| SG0576 | GHIBAUDI |
| STM3190 | KRAUF |
| STN3190 | KRAUF |
| STR6421 | ELECTROLOG |
| STR70493 | WOODAUTO |
| TT16850 | TESLA |
| UD02916S | AS-PL |
| UD104376S | AS-PL |
| WOOSTR70493 | WOODAUTO |
Video/Publications
