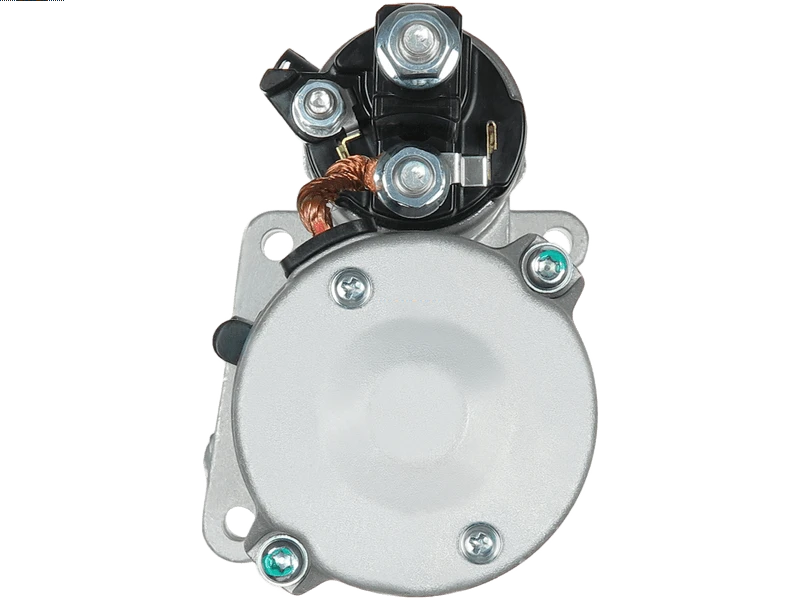

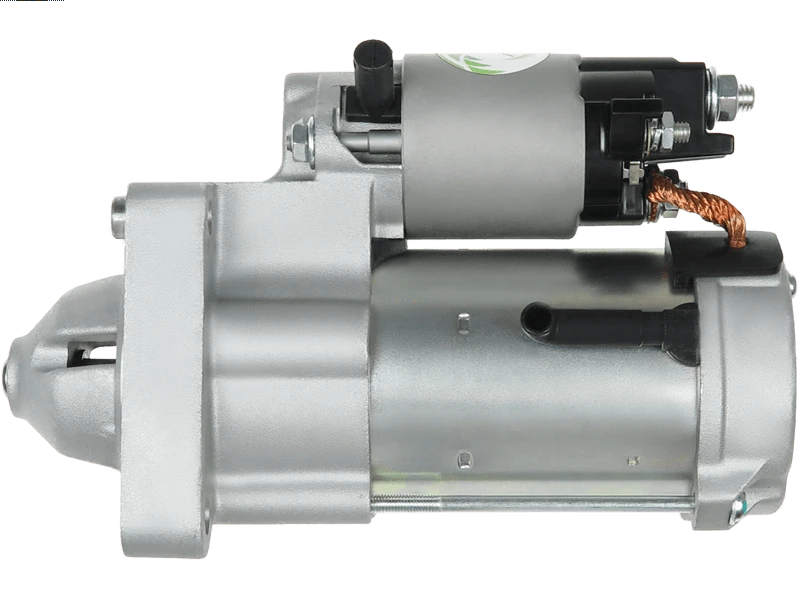

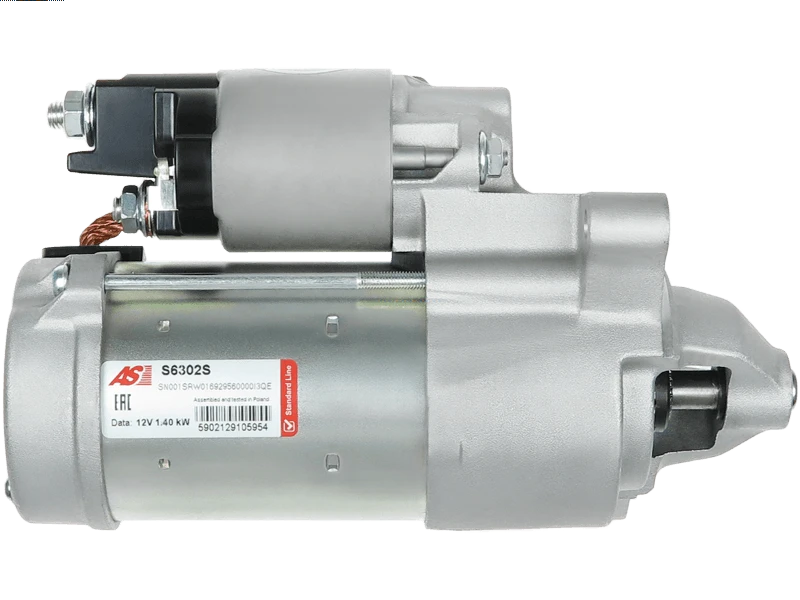

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 349.54 including GST
NZ$ 303.95 excluding GST
or four payments of $87.39
with
Learn More
UOM:
each
Alternative Item:
S6302(DENSO)
Product Code:
S6302S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
438000-0473Associated Numbers
116371 12417645979 12417645980 20432455 210.555.152 210.560.153 25-5094 255885D 30486N 3284 438000-0470 438000-0472 438000-0473 438000-0474 6040554 7645979 7645980 CST40554AS CST40554GS LRS03931 S-80768 STM1402 STN0470 STR70505 UD20509SSpecifications
| Kilowatt | 1.40 kW |
| Length (L.1) | 212 mm |
| Mount Hole Center - Center (O.1) | 75 mm |
| Mount Hole Center - Center (O.2) | 113 mm |
| Mount Hole Center - Center (O.3) | 75 mm |
| Mount Hole Diameter (C.1) | 8.50 mm |
| Mount Hole Diameter (C.2) | 8.50 mm |
| Mount Hole Diameter (C.3) | 8.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 15 qty |
| OEM Product | No |
| Pinion at Rest (B) | 1 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 70 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| BMW | 216 1.5 i | (F45)[B38A15A] | 02.2015-02.2018 |
| BMW | 216 1.5 i | (F46)[B38A15A] | 09.2014-02.2018 |
| BMW | 218 1.5 i | (F45)[B38A15A] | 07.2014- |
| BMW | 218 1.5 i | (F46)[B38A15A] | 03.2015- |
| BMW | 218 1.5 i | (F46)[B38A15A] | 04.2017- |
| BMW | 220 2.0 i | (F45)[B48A20A] | 03.2014- |
| BMW | 220 2.0 i | (F45)[B48A20F] | 03.2014- |
| BMW | 220 2.0 i | (F46)[B48A20A] | 03.2015- |
| BMW | 225 2.0 i | (F45)[B48A20B] | 11.2013- |
| BMW | 225 2.0 i xDrive | (F45)[B48A20B] | 03.2014- |
| BMW | X1 1.5 sDrive 18 i | (F48)[B38A15A] | 07.2017- |
| BMW | X1 1.5 sDrive 18 i | (F48)[B38A15A] | 11.2014-05.2017 |
| BMW | X1 2.0 sDrive 20 i | (F48)[B48A20A] | 07.2015- |
| BMW | X1 2.0 sDrive 20 i | (F48)[B48A20F] | 07.2015- |
| BMW | X1 2.0 xDrive 20 i | (F48)[B48A20A] | 07.2015- |
| BMW | X1 2.0 xDrive 20 i | (F48)[B48A20B] | 07.2015- |
| BMW | X1 2.0 xDrive 20 i | (F48)[B48A20F] | 07.2015- |
| BMW | X1 2.0 xDrive 25 i | (F48)[B46A20B] | 11.2014- |
| BMW | X1 2.0 xDrive 25 i | (F48)[B48A20A] | 11.2014- |
| BMW | X1 2.0 xDrive 25 i | (F48)[B48A20B] | 11.2014- |
Reference Information
| 11090343 | EUROTEC |
| 116371 | CARGO |
| 12417645979 | BMW |
| 12417645980 | BMW |
| 12418570845 | BMW |
| 20432455BN | REAL |
| 20432455OE | REAL |
| 210.560.153.050 | PSH |
| 210.560.153.260 | PSH |
| 210.560.153.261 | PSH |
| 210.560.153.262 | PSH |
| 220975A | ERA |
| 25-5094 | ELSTOCK |
| 255885 | KUHNER |
| 255885D | KUHNER |
| 255885R | KUHNER |
| 260540-0140 | DENSO |
| 30486 | LESTER |
| 30486N | WAI / TRANSPO |
| 3284 | CEVAM |
| 438000-0470 | DENSO |
| 438000-0471 | DENSO |
| 438000-0472 | DENSO |
| 438000-0473 | DENSO |
| 438000-0474 | DENSO |
| 438000-0475 | DENSO |
| 438000-0476 | DENSO |
| 5040888 | MEAT & DORIA |
| 6040554.0 | SANDO |
| 6040554.1 | SANDO |
| 7645979 | BMW |
| 7645980 | BMW |
| AM-2786 | AUTO MAGNETO |
| CST40554AS | CASCO |
| CST40554GS | CASCO |
| DRS1016 | DELCO |
| DSN1479 | DENSO |
| F032116371 | CARGO |
| LRS03931 | LUCAS |
| LRS3931 | LUCAS |
| S12DE0846 | SIDAT |
| S131.697 | PSH |
| S6302S | AS-PL |
| S-80768 | DIXIE |
| STM1402 | ROLLCO |
| STN0470 | KRAUF |
| STR6742 | ELECTROLOG |
| STR70505 | WOODAUTO |
| STX210193 | STARDAX |
| UD104426S | AS-PL |
| UD20509S | AS-PL |
| UD20548S | AS-PL |
Video/Publications
S6302SView your shopping basket or Browse other items in Starter Motors.
