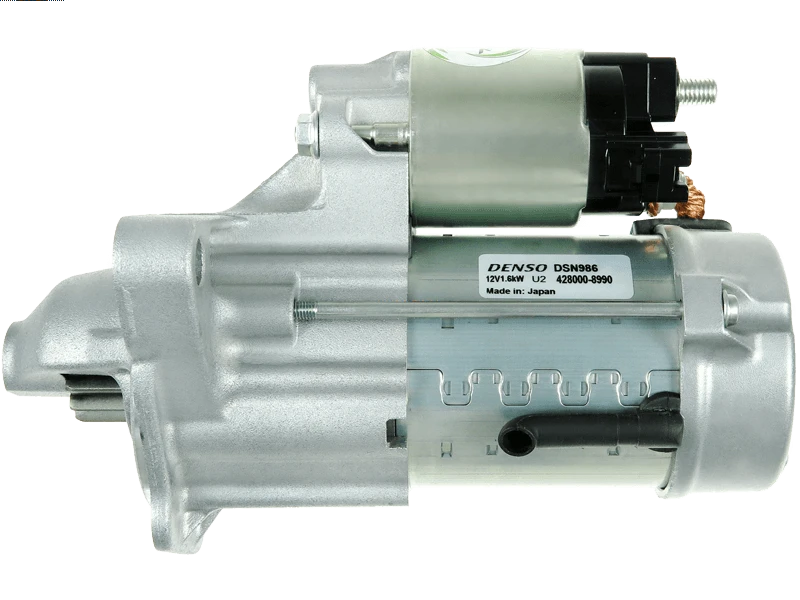

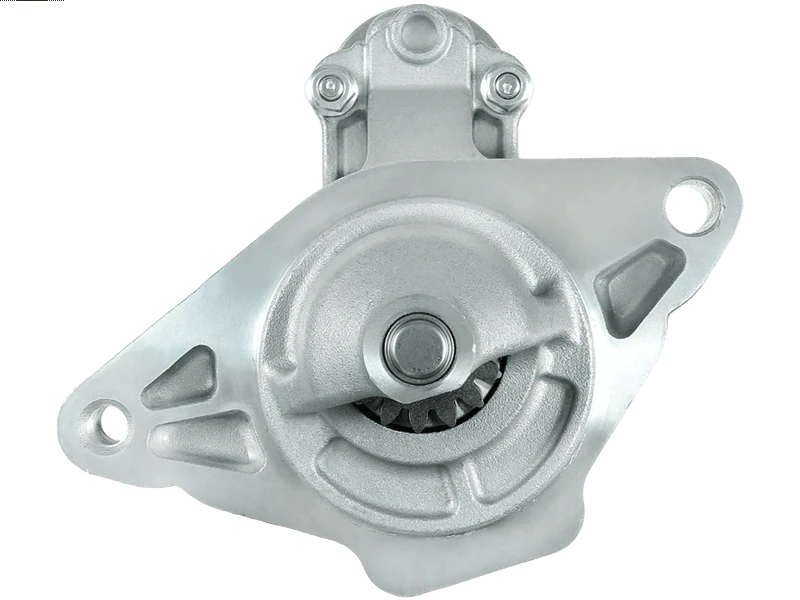

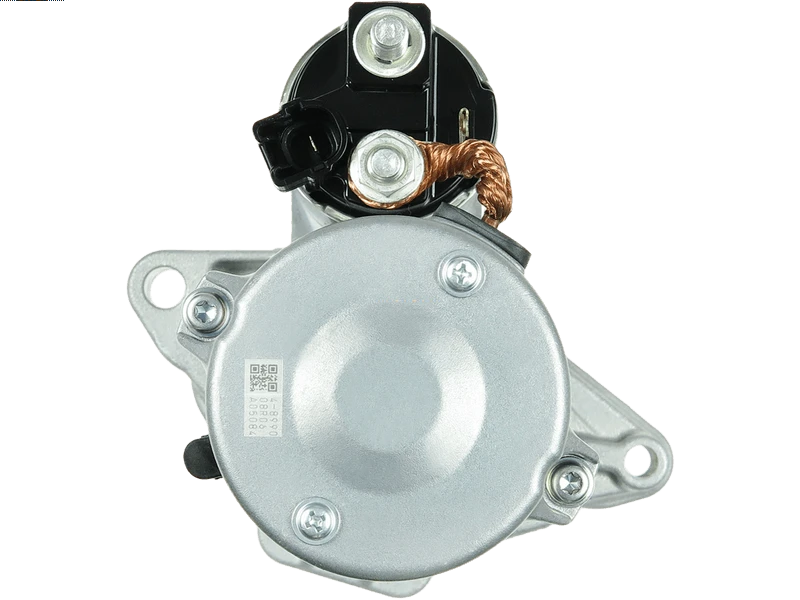

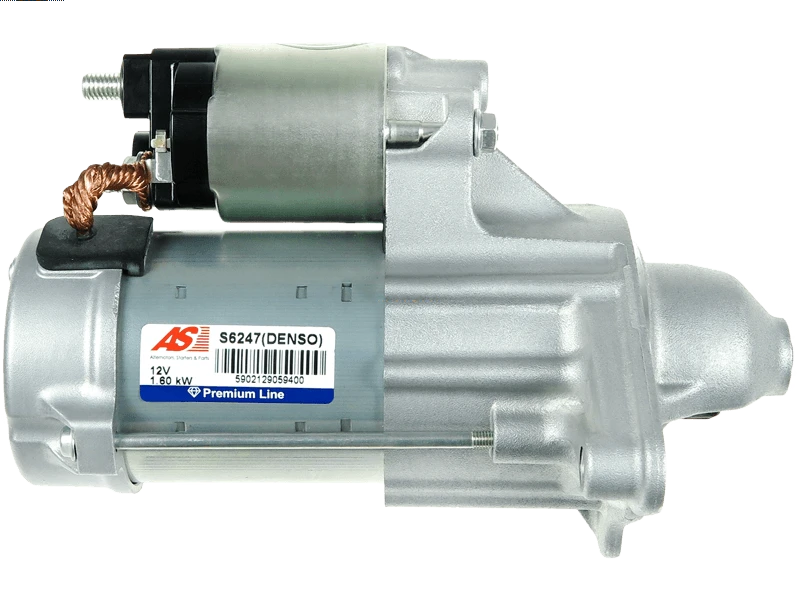

Brand new OEM DENSO Starter motor
PREMIUM LINE
Denso
DENSO
Price:
NZ$ 1,015.81 including GST
NZ$ 883.31 excluding GST
or four payments of $253.95
with
Learn More
each
S6247(DENSO)
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
DSN986Associated Numbers
190.593.152 220827 25-4173 254456D 28100-0Y020 28100-0Y021 28100-0Y022 28100-0Y040 28100-0Y041 28100-0Y042 28100-47110 28100-47111 28100-47112 428000-6000 428000-6360 428000-6370 428000-8570 428000-8580 428000-8590 428000-8990 428000-9000 6040286 AEY2501 CS1532 CST40286 CST40286AS CST40286ES CST40286GS CST40286OS CST40286RS DENDSN986 DSN986 J5212145 LRS02501 STN3021 UD809838(DENSO)SSpecifications
| Kilowatt | 1.60 kW |
| Length (L.1) | 216 mm |
| Mount Hole Center - Center (O.1) | 140 mm |
| Mount Hole Diameter (C.1) | 11.50 mm |
| Mount Hole Diameter (C.2) | M10x1.25 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 15 qty |
| OEM Product | Yes |
| Pinion at Rest (B) | 27 mm |
| Product Line | Premium Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 74 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | Auris 1.3 Dual-VVTi | [1NR-FE] | 01.2010-09.2012 |
| TOYOTA | Auris 1.3 Dual-VVTi | [1NR-FE] | 05.2009-09.2012 |
| TOYOTA | Corolla Saloon 1.3 | [1NR-FE] | 01.2007- |
| TOYOTA | Urban Cruiser 1.3 | [1NR-FE] | 01.2009- |
| TOYOTA | Urban Cruiser 1.3 | [1NR-FE] | 04.2009- |
| TOYOTA | Yaris 1.3 VVT-i | [1NR-FE] | 07.2010- |
| TOYOTA | Yaris 1.3 VVT-i | [1NR-FE] | 11.2008- |
Reference Information
| 190.593.152 | PSH |
| 220827 | ERA |
| 25-4173 | ELSTOCK |
| 254456D | KUHNER |
| 28100-0Y020 | TOYOTA |
| 28100-0Y021 | TOYOTA |
| 28100-0Y022 | TOYOTA |
| 281000Y02284 | TOYOTA |
| 28100-0Y022-84 | TOYOTA |
| 28100-0Y040 | TOYOTA |
| 28100-0Y041 | TOYOTA |
| 28100-0Y042 | TOYOTA |
| 28100-47110 | TOYOTA |
| 28100-47111 | TOYOTA |
| 28100-47112 | TOYOTA |
| 428000-6000 | DENSO |
| 428000-6360 | DENSO |
| 428000-6370 | DENSO |
| 428000-8570 | DENSO |
| 428000-8580 | DENSO |
| 428000-8590 | DENSO |
| 428000-8990 | DENSO |
| 428000-9000 | DENSO |
| 6040286 | SANDO |
| AEY2501 | AUTOELECTRO |
| CS1532 | HC PARTS |
| CST40286 | CASCO |
| CST40286AS | CASCO |
| CST40286ES | CASCO |
| CST40286GS | CASCO |
| CST40286OS | CASCO |
| CST40286RS | CASCO |
| DENDSN986 | WOODAUTO |
| DSN986 | DENSO |
| J5212145 | HERTH+BUSS |
| LRS02501 | LUCAS |
| LRS2501 | LUCAS |
| S12DE0589A2 | SIDAT |
| S131.163 | PSH |
| S145.036 | PSH |
| STN3021 | KRAUF |
| STR6571 | ELECTROLOG |
| STX210246 | STARDAX |
| STX210246R | STARDAX |
| UD809838(DENSO)S | AS-PL |
Video/Publications
